Description

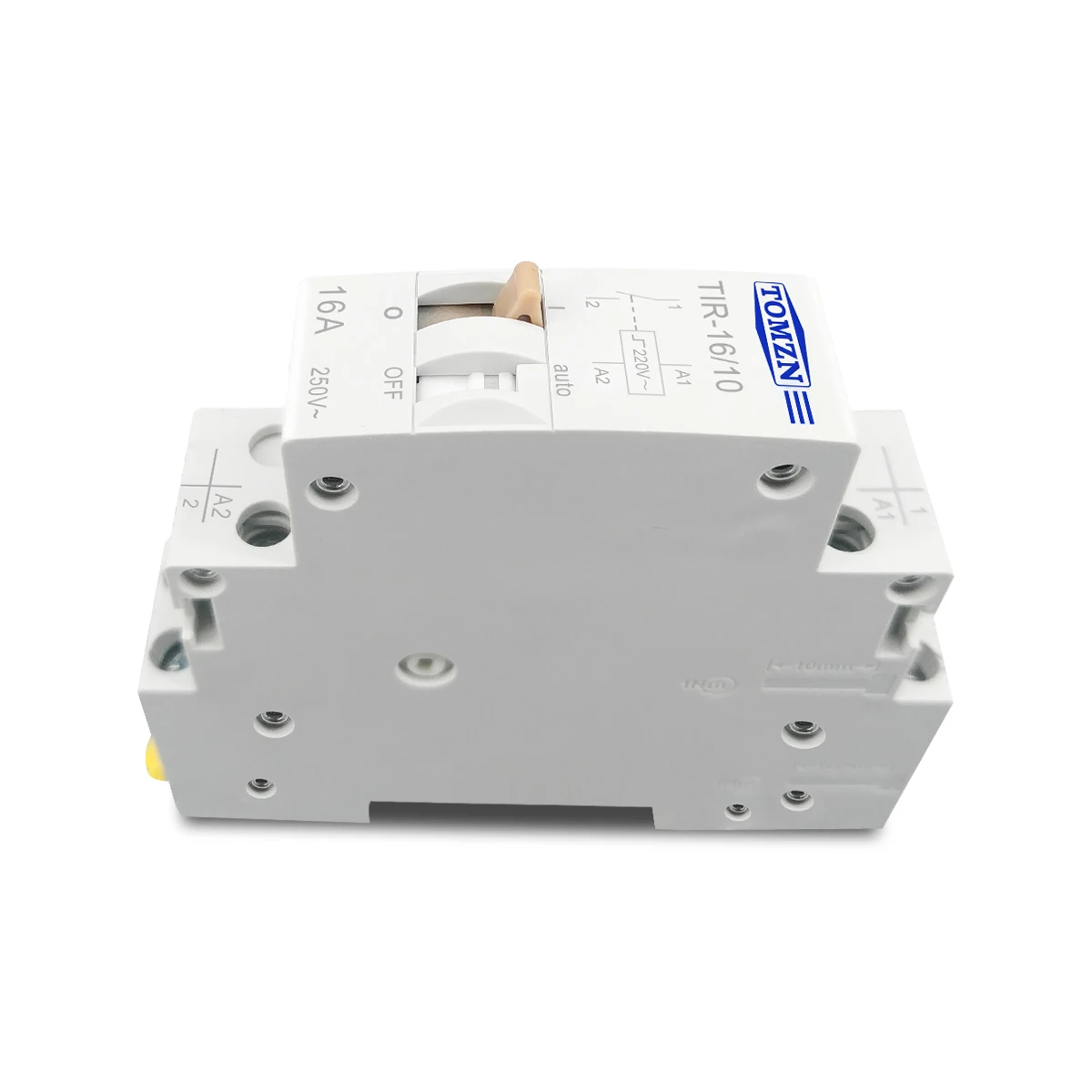

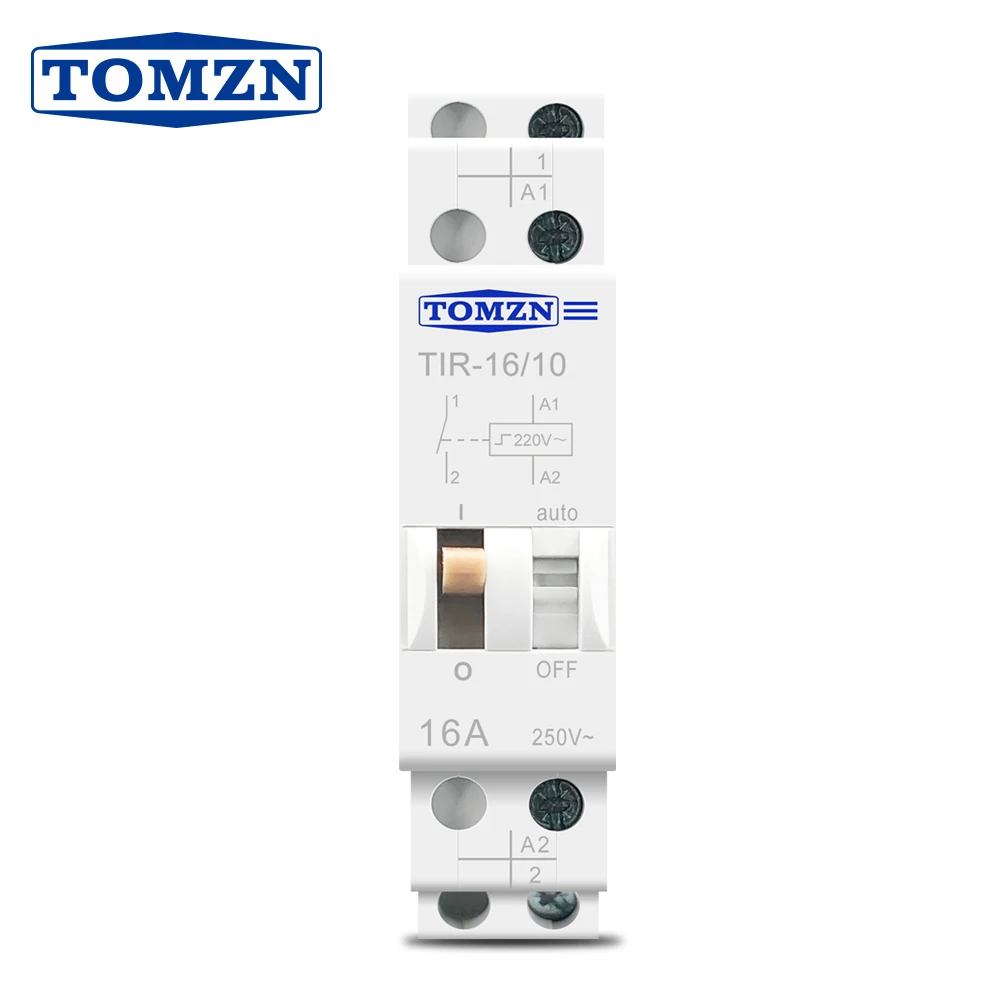

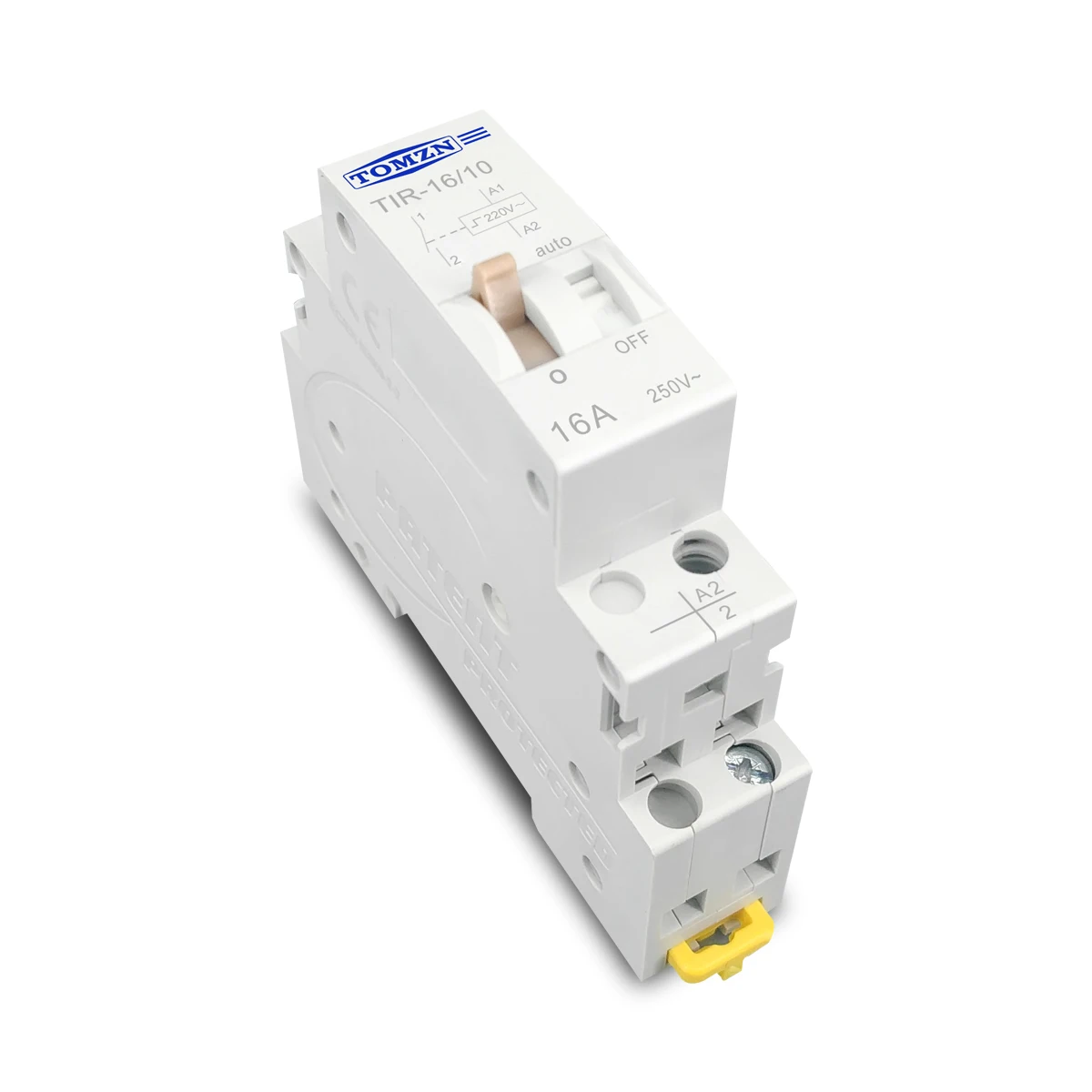

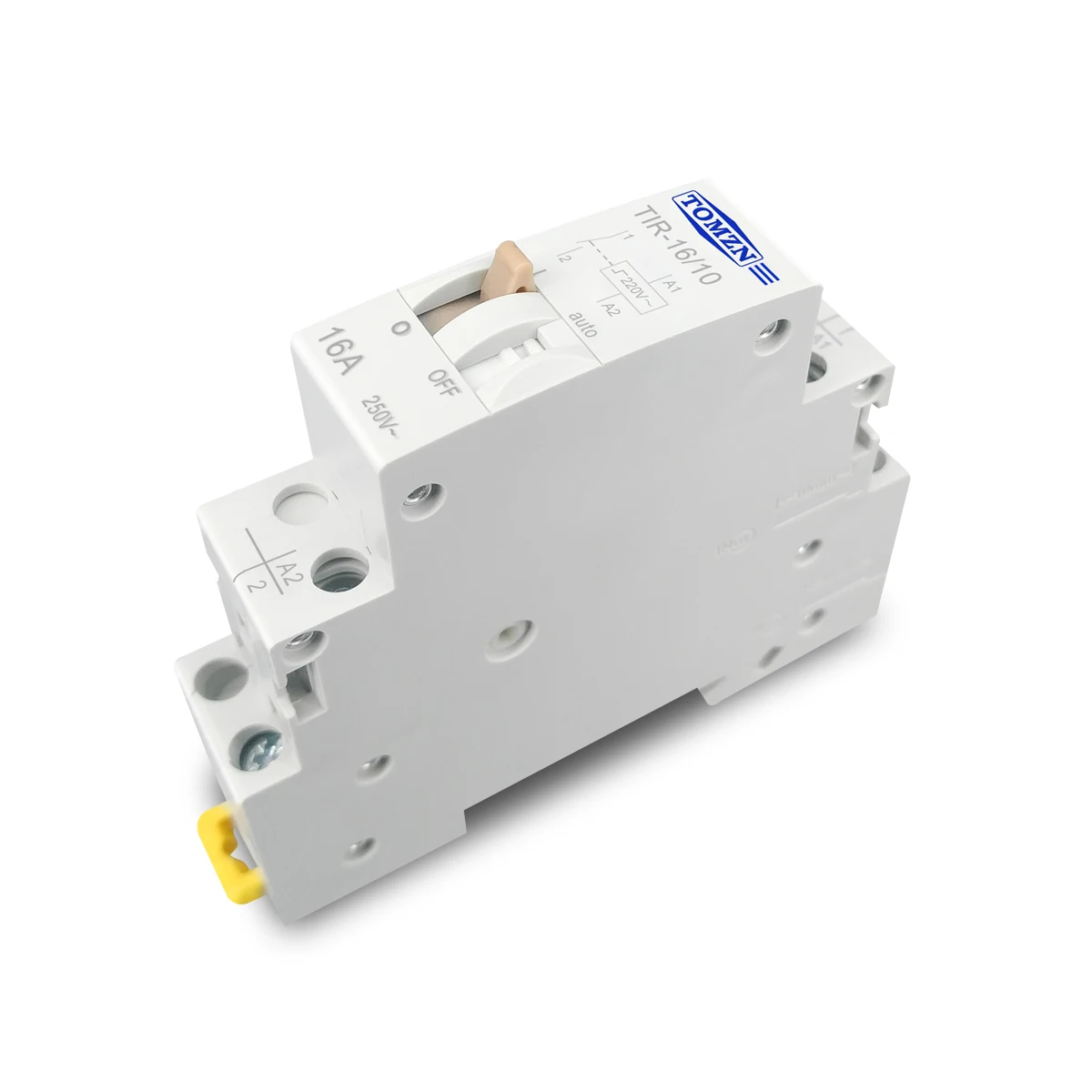

TIR-16/10 16A 250V 1NO
1. Working Principle
-
Activation Method: The relay switches the contact state (open/close) upon receiving a pulse signal (a brief electrical signal) on its coil.
-
Bistable Mechanism: Features two stable mechanical positions (ON/OFF). Each subsequent pulse toggles the contact state (e.g., the first pulse closes the circuit, the second opens it, and so on).
-
Zero Standby Power Consumption: Only consumes energy during switching, remaining completely passive in steady state, ensuring high energy efficiency.
2. Control Features
-
Multi-Button Control: Can be operated by an unlimited number of pushbuttons (wired in parallel), enabling multi-point control (e.g., corridor lighting from multiple switches).
-
Non-Latching Design: A momentary button press is sufficient to toggle the state??no need to hold the button.
3. Typical Applications
Used for lighting circuit control, compatible with the following load types:
-
Resistive Loads: Incandescent lamps, low-voltage halogen lamps, etc.
-
Inductive Loads: Fluorescent lamps, discharge lamps, etc.
4. Key Advantages
-
Energy Efficiency: Zero power consumption in steady state.
-
Flexible Wiring: Supports parallel connection of multiple buttons without complex circuitry.
-
Long Lifespan: Bistable mechanical design reduces wear from frequent switching.
Common Use Cases
-
Building lighting control (e.g., stairways, hallways with multi-point switches).
-
Circuits requiring long-distance or multi-location control.
-
Applications demanding high energy efficiency and reliability.
