Description

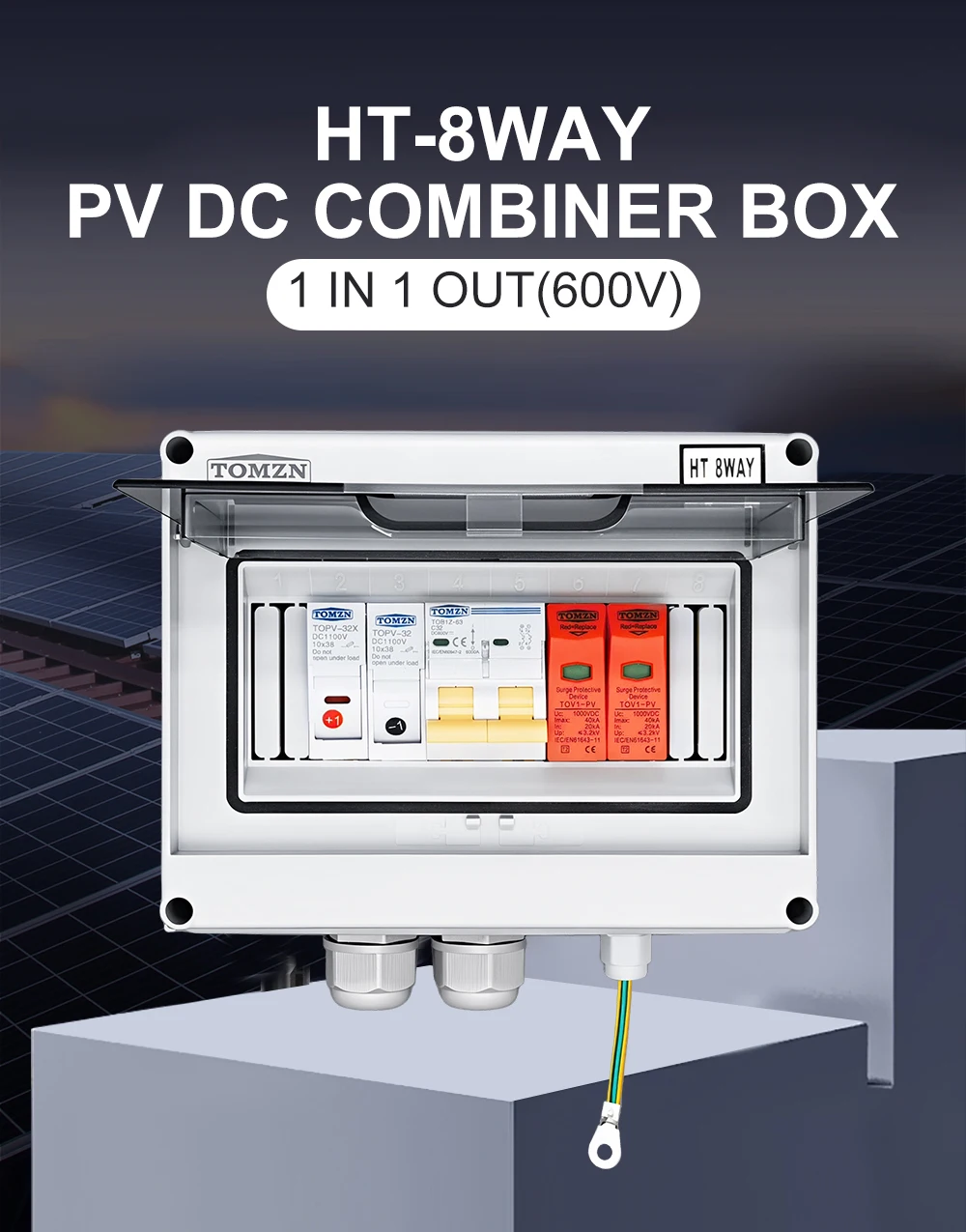

HT-8WAY Photovoltaic distribution box

2P 600VDC 16-63A

1 input 1 output

No MC4 design, direct wiring

General

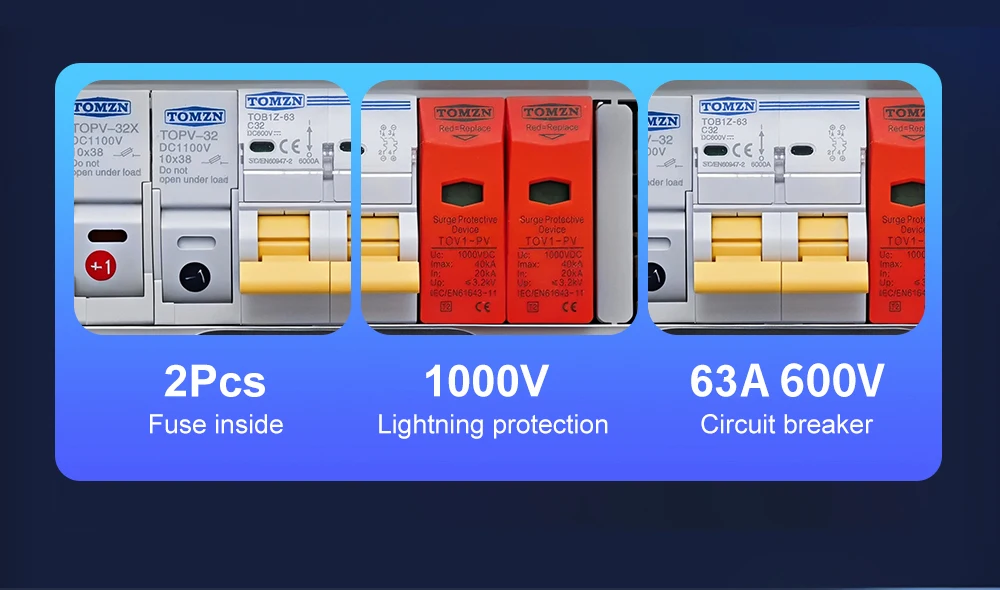

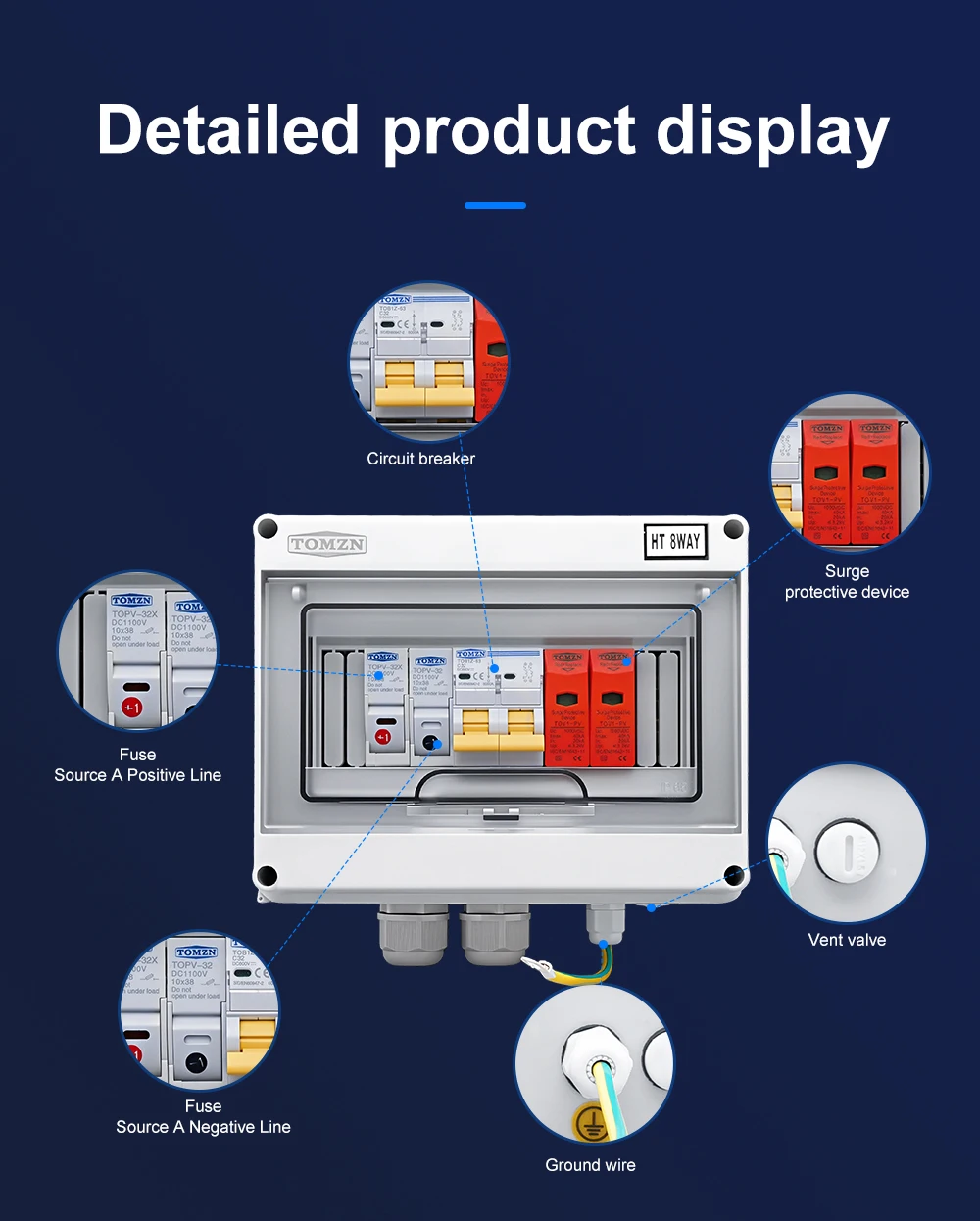

TOPV8HT-1-1-600V-NM is a compact, IP65-rated DC distribution box designed for reliable overcurrent and surge protection in photovoltaic, energy storage, and industrial DC systems. With a direct wiring design (no MC4 connectors) and a 1-input, 1-output configuration, it integrates a DC circuit breaker, fuse, and surge protective device (SPD) into a single enclosure. Rated at 600V DC and available from 16A to 63A, it delivers robust short-circuit, overload, and lightning protection for outdoor or harsh environments.

Product Technical Specification

Model: TOPV8HT-1-1-600V-NM
Product type: HT-8WAY Photovoltaic distribution box
Rated voltage: 600V DC
Rated current options: 16A, 20A, 25A, 32A, 40A, 50A, 63A
Pole configuration: 2P

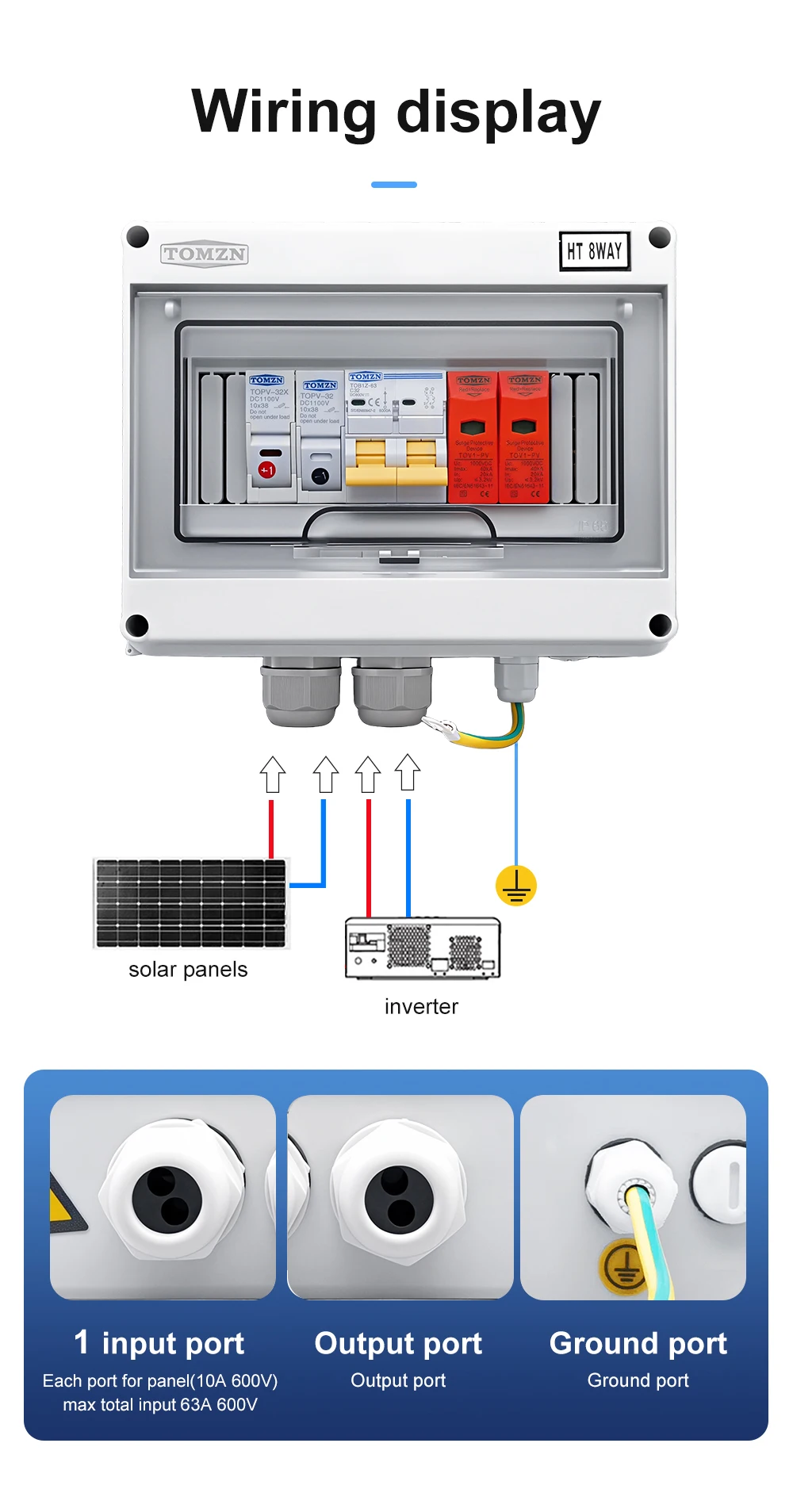

Input / Output: 1 input, 1 output
Connector type: No MC4 – direct wiring
Protection functions: Overload, short-circuit, surge protection (SPD)

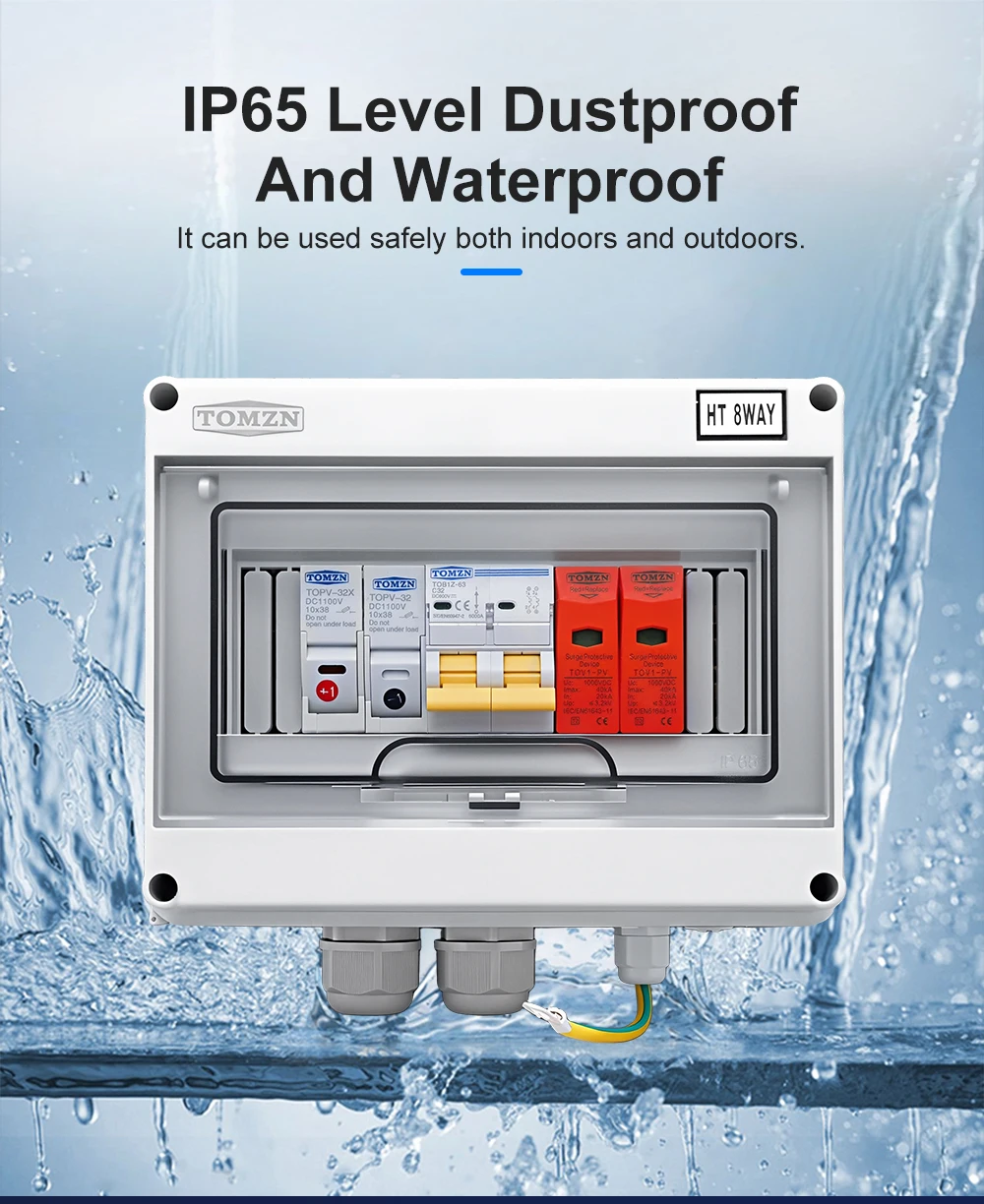

Enclosure rating: IP65
Application: Photovoltaic systems, energy storage, DC charging piles, industrial DC circuits
