Description

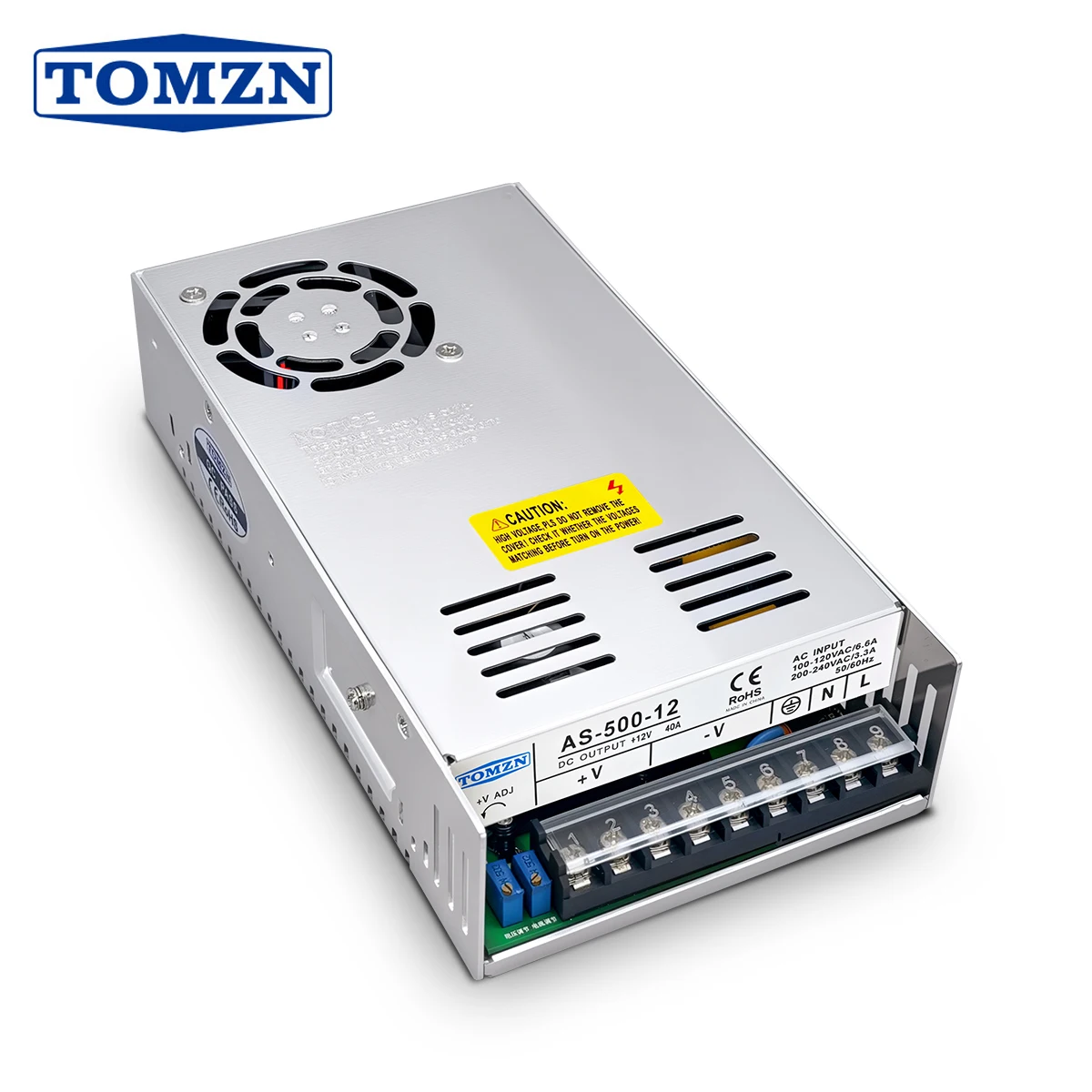

Function: AS-500 series can convert AC 110V/220V voltage to DC 12V/24V/36V/48V/60V voltage.

Specifications:
100% full load burn-in test.
Universal AC input / full range.
It’s good quality & high performance.
Input: AC110V 220V 50/60Hz.
Output: 12VDC,24VDC,36VDC,48VDC,60VDC
Protections: overload/ over voltage/ short circuit.
Cooling by free air convection.
(Not suggest for use in bathroom)

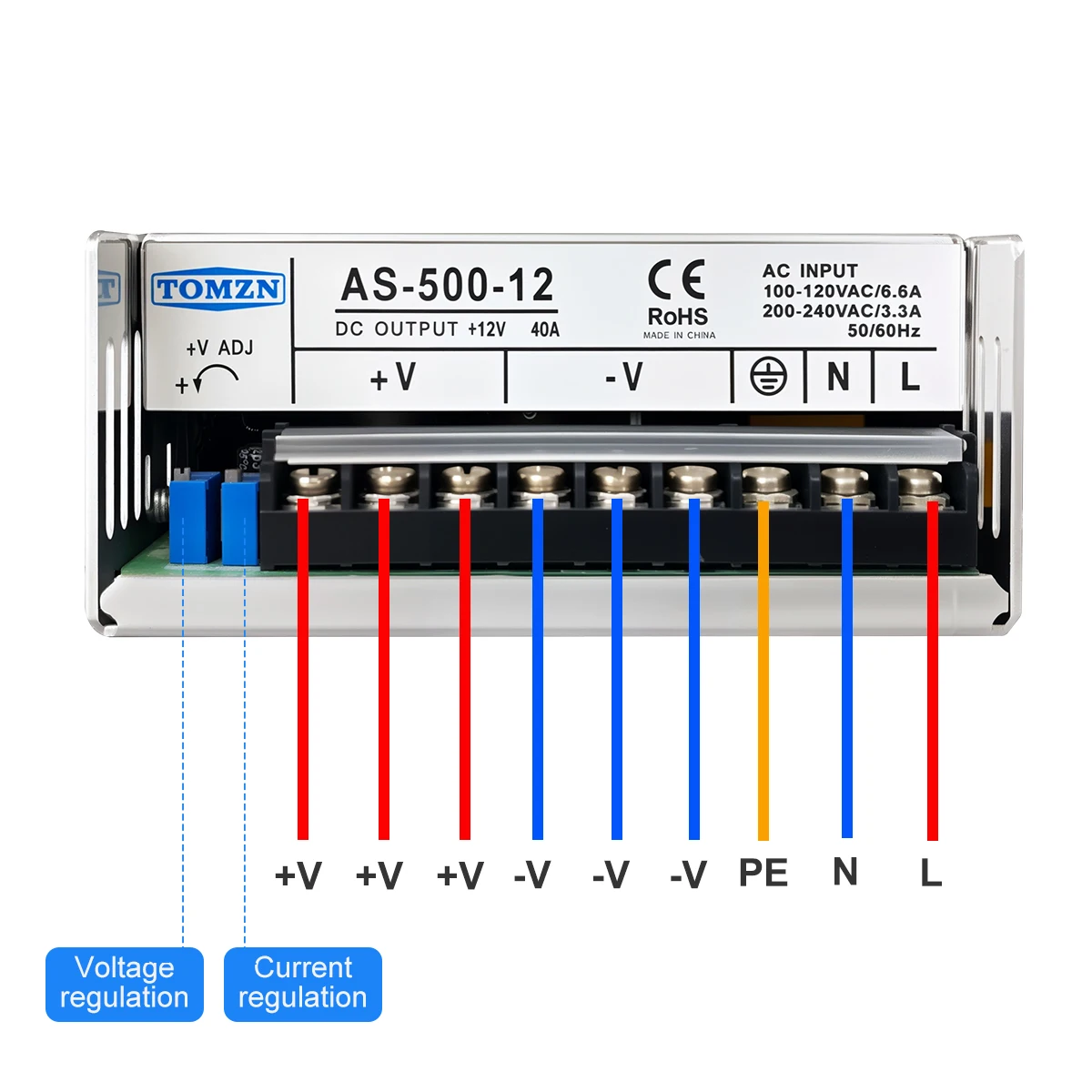

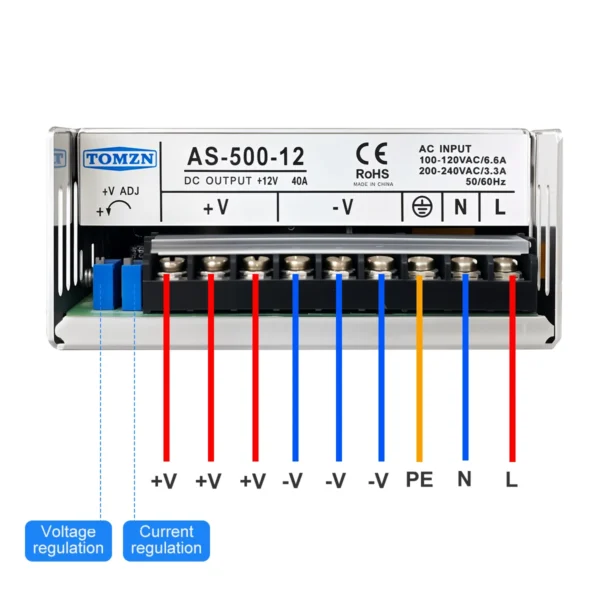

Connection:
L, N: AC power input
GND: DC power output “-“
-V: DC power output “-“
+V: DC power output “+”

ADJ: Adjust the output voltage ??10%
Safety Compliance: CE
Working Temperature: -20~70??.
Storage Temperature: -40~85??.
Ambient Humidity: 0~95% Non-Condensation
High price-effective, reliability with industry standards
Built-in over voltage, over current, and short circuit protection
