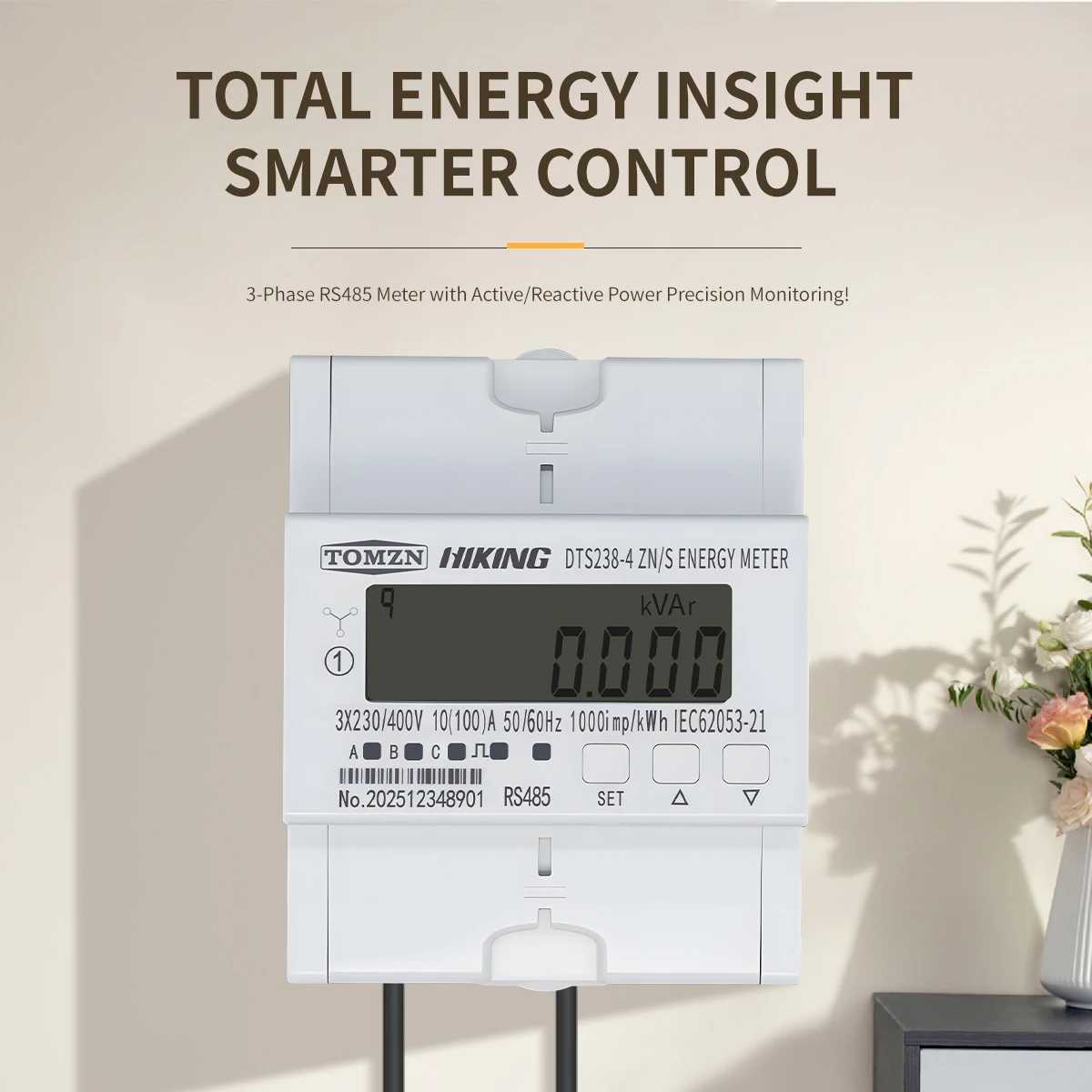

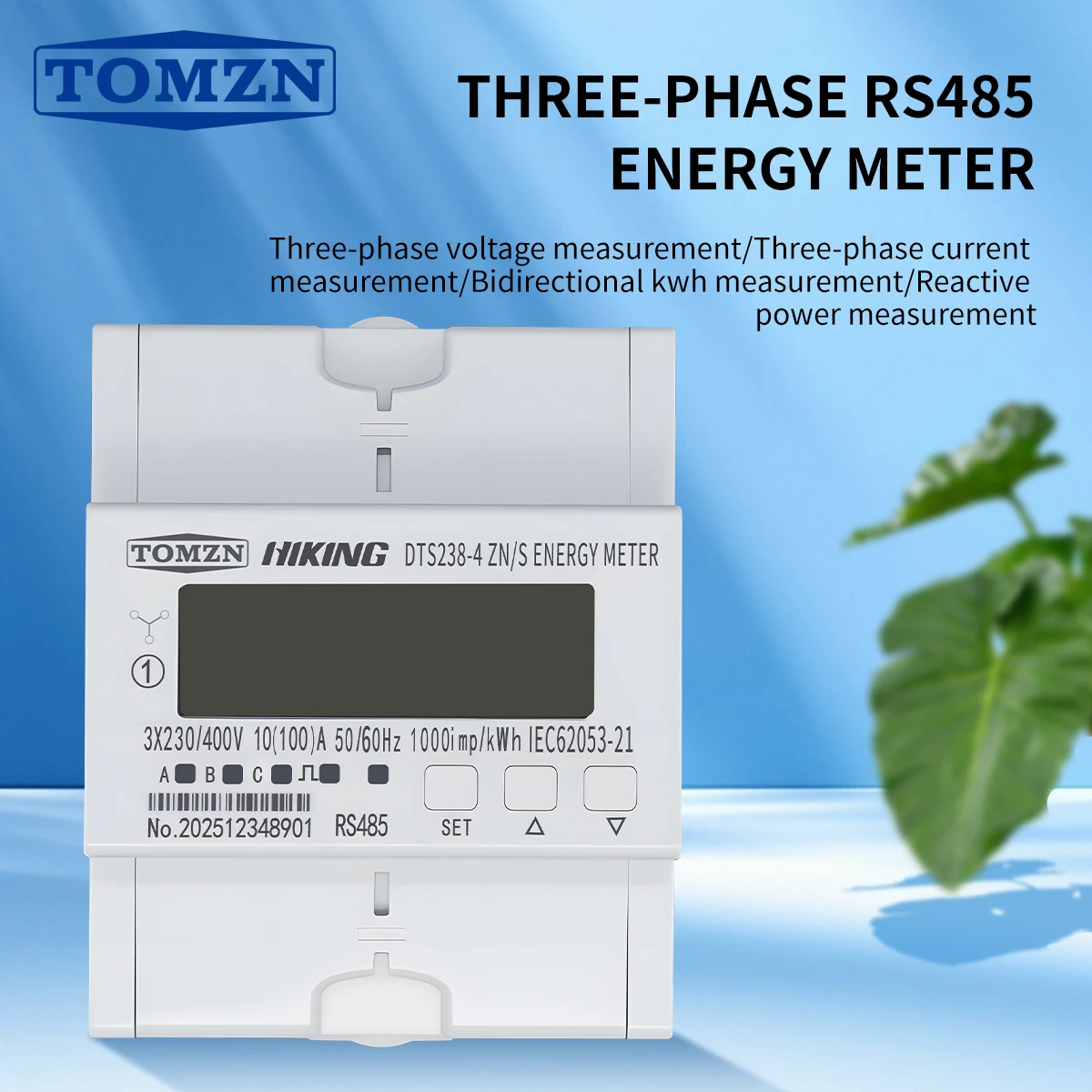

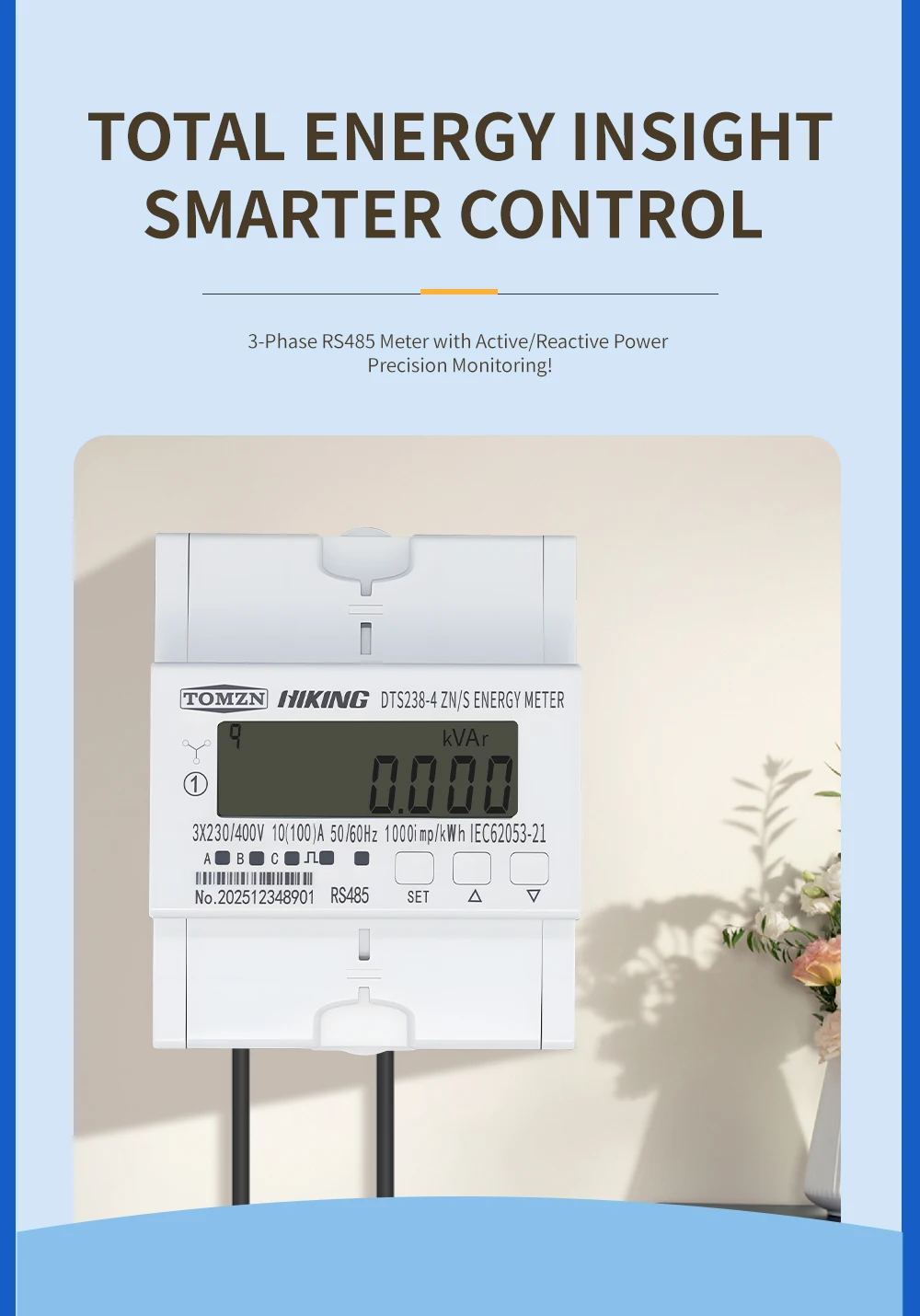

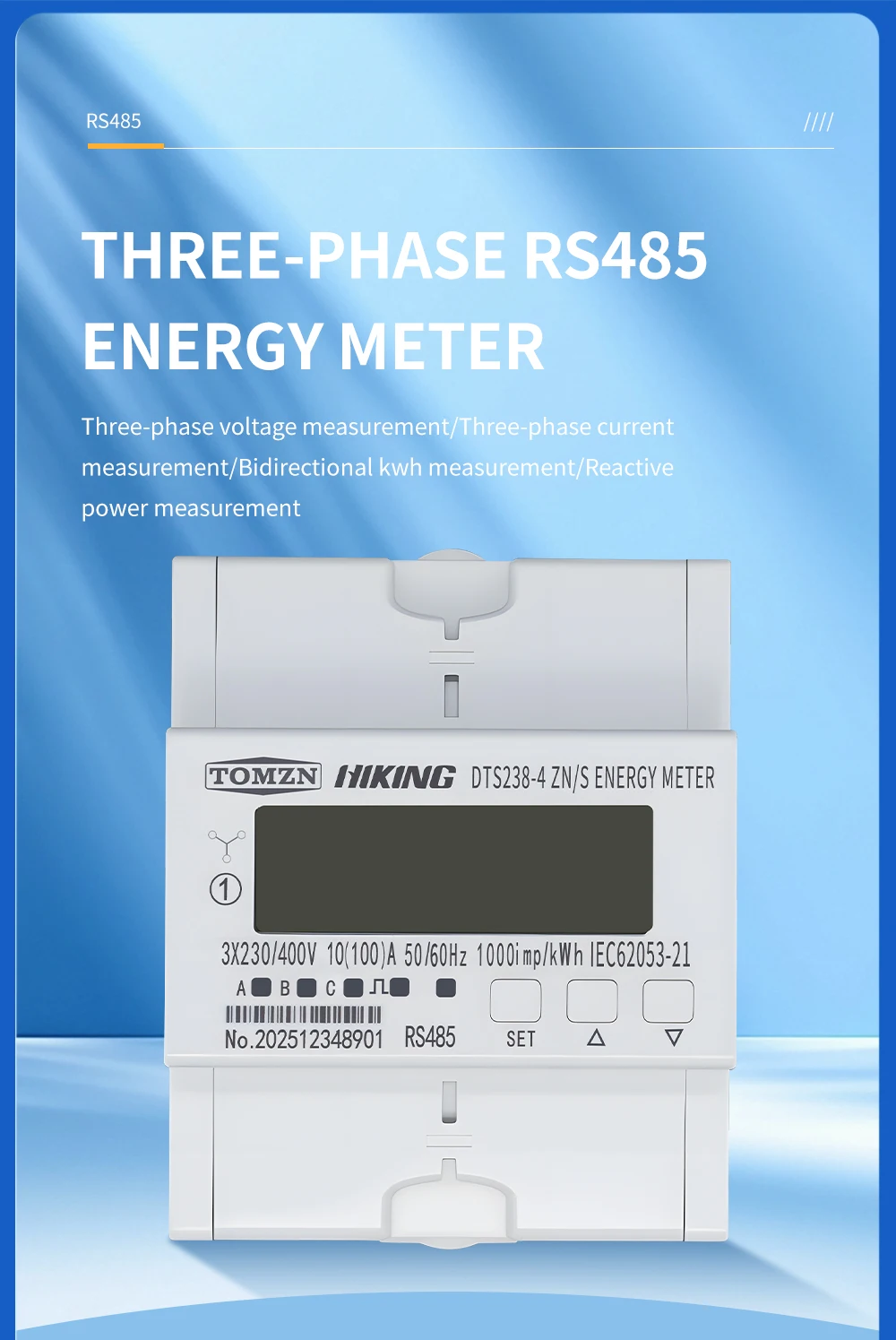

TOMZN 3*230/400V 100A 5A CT Three Phase RS485 Energy Meter kwh Bi-directional Action Reaction Power Voltage Current Power Factor

Two models:

DTS238-4 ZN/S 3*230/400V 10(100)A 50/60Hz 1000imp/kWh

DDS238-4 ZN/S3*230/400V 5A/CT50/60Hz 6400imp/kWh (CT needs to be purchased separately.)

Function:

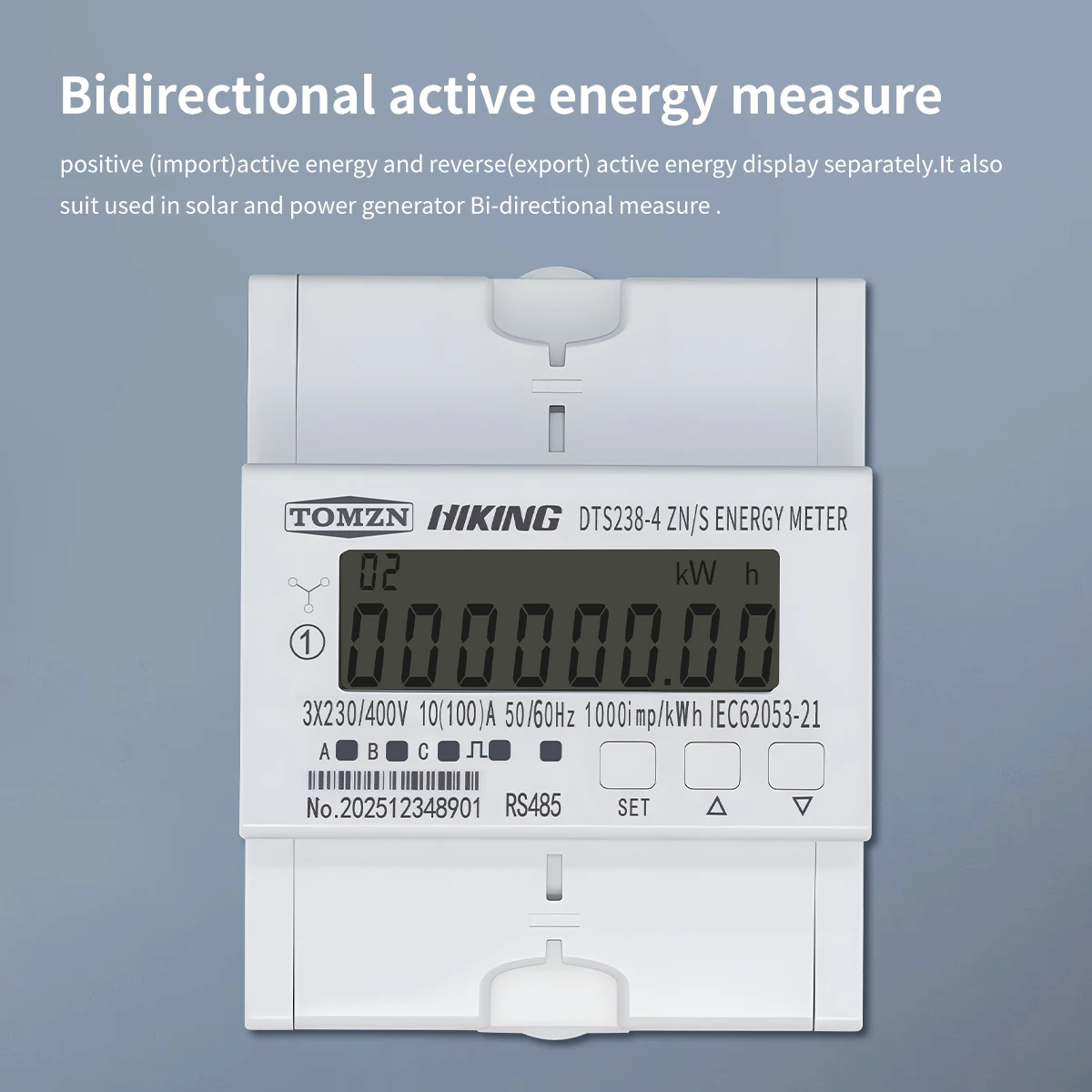

1. Measuring positive & negative active/reactive energy with negative energy accumulated into positive energy.

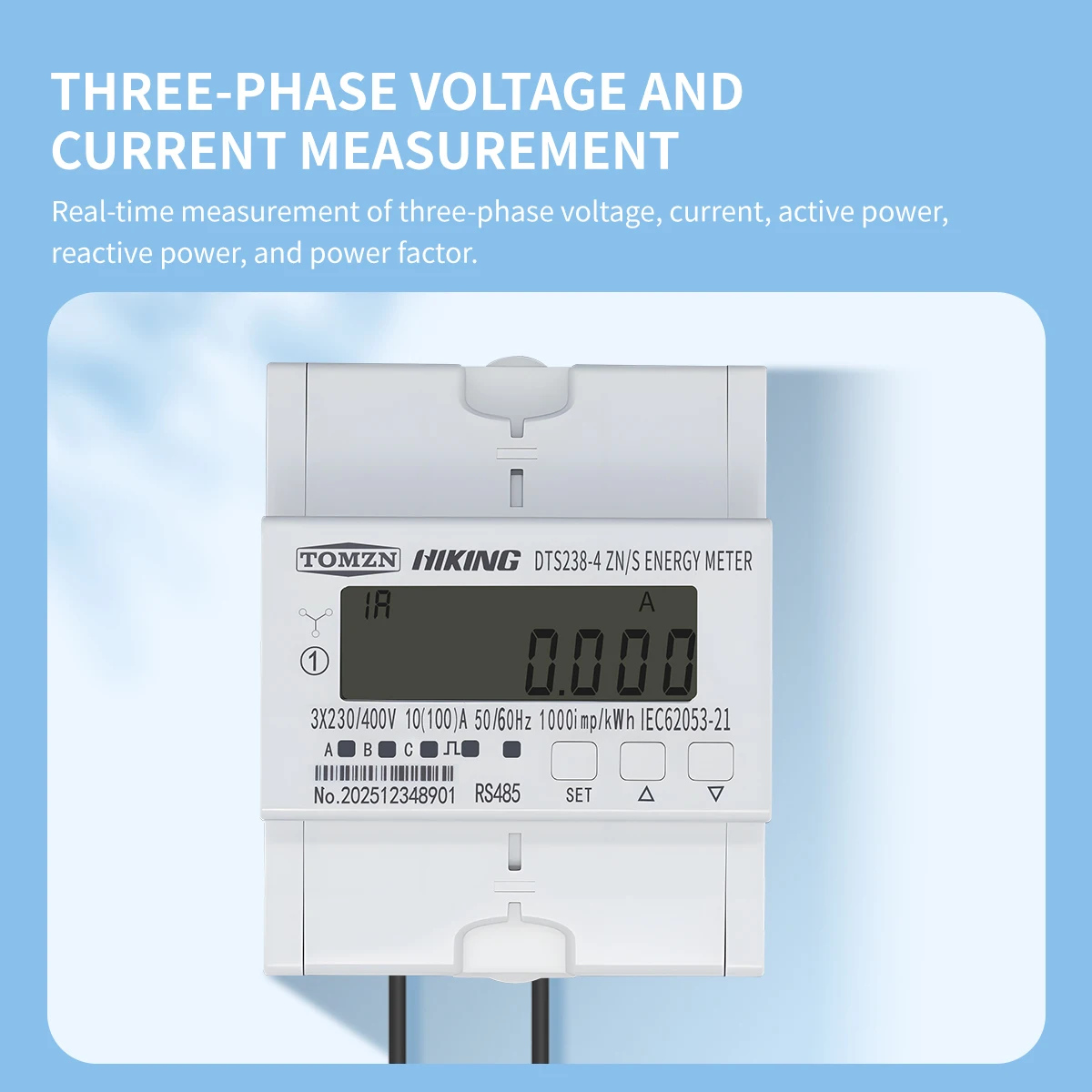

2. The meter also display three phase real voltage , real current , real active power , real power factor , real frequency

3. Pulse LED indicates working of meter

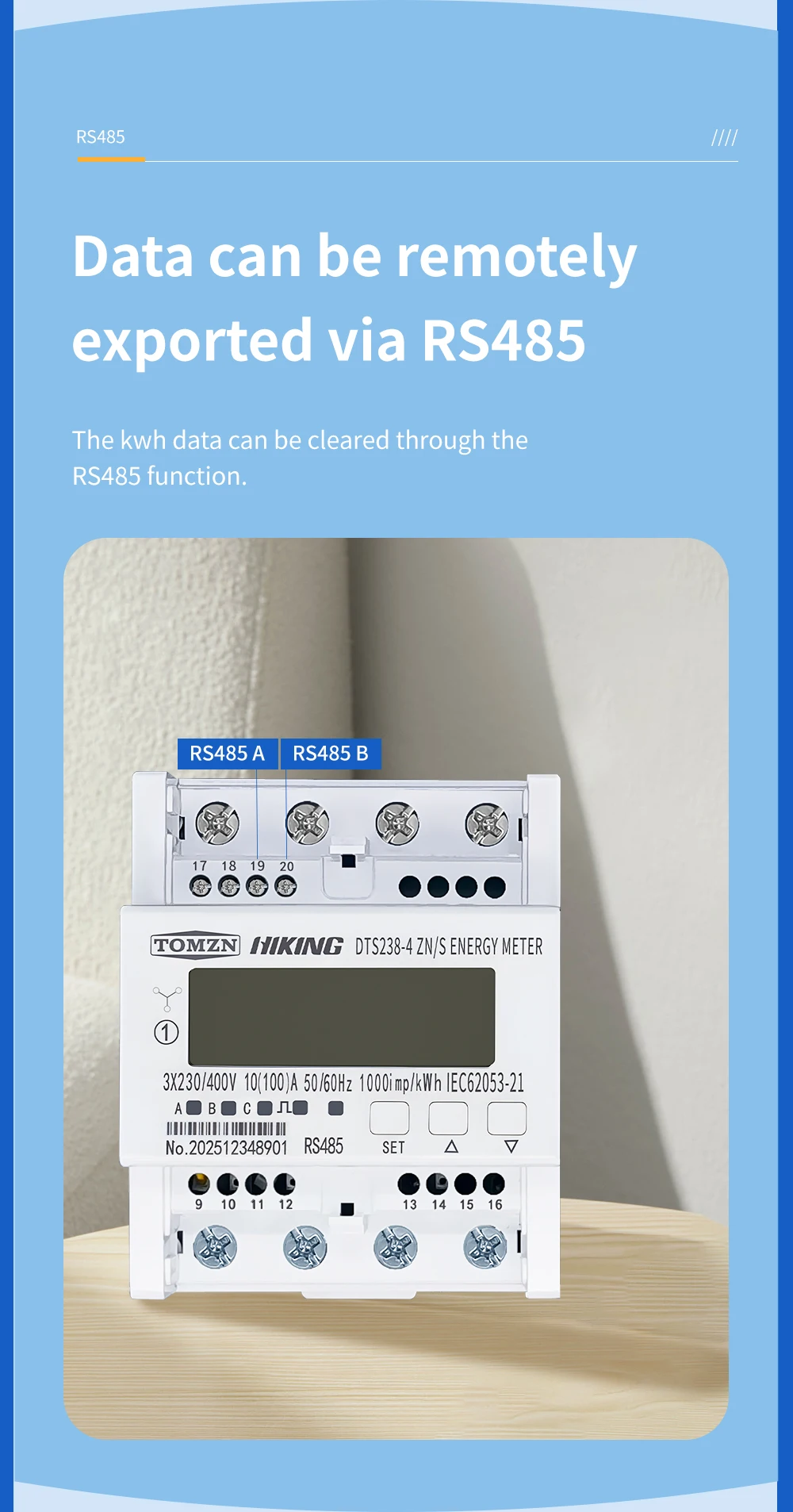

5. RS485 communication port

6. Clear all kWh to zero by RS485

7. Measuring active energy without calibration under long term operation

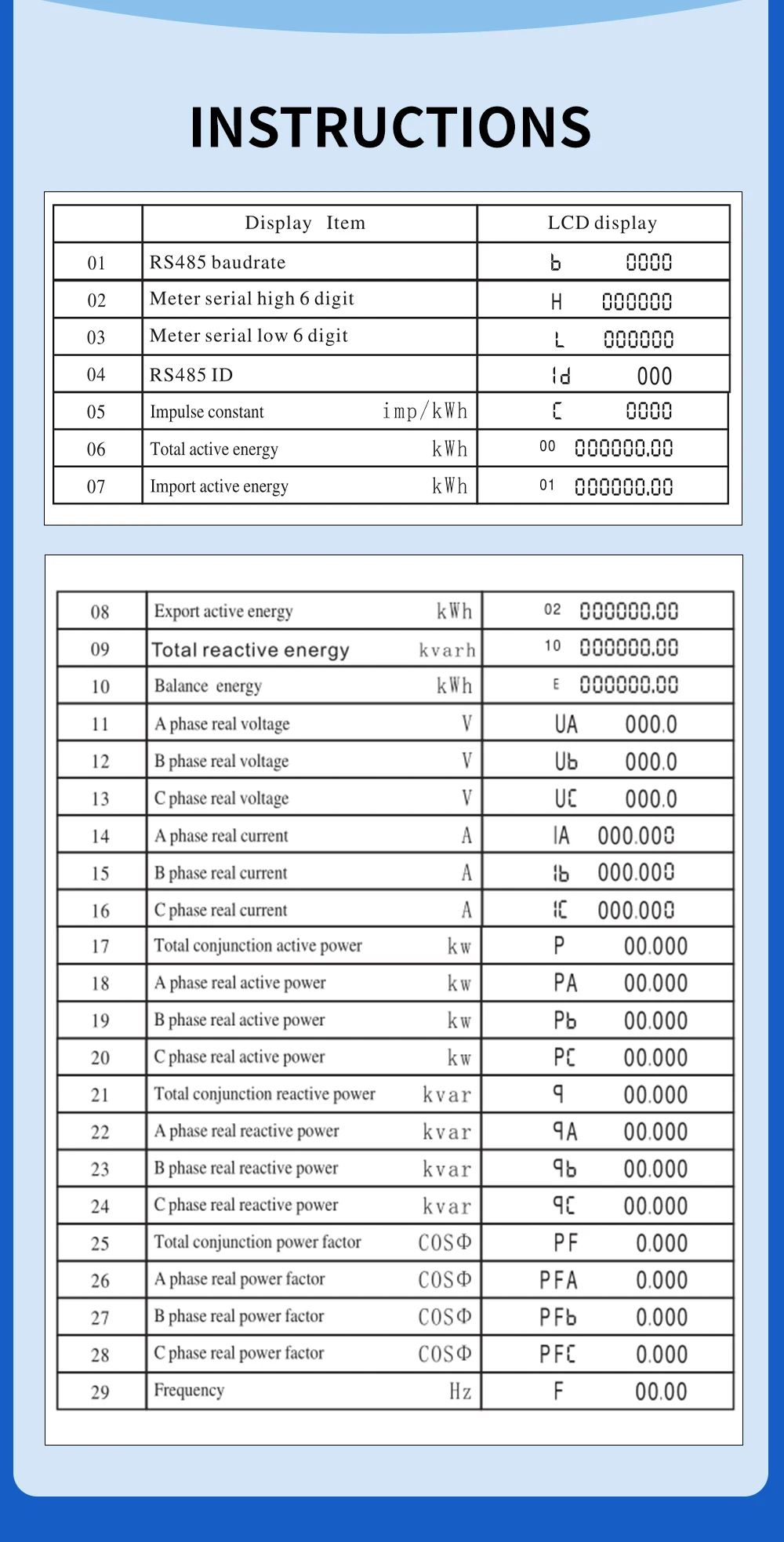

8. Display step by step with button
