Description
Description:

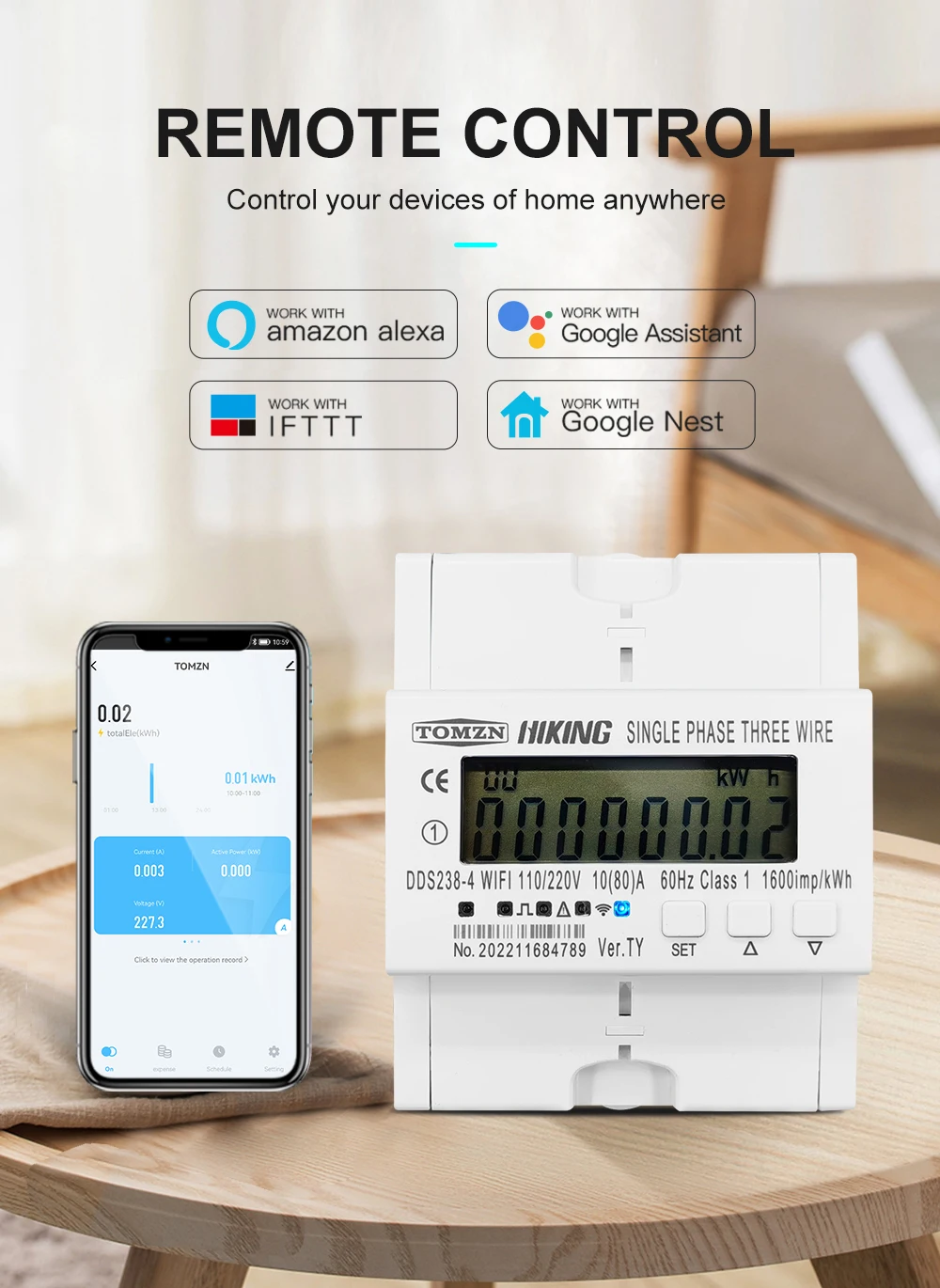

1. Remote ON/OFF function

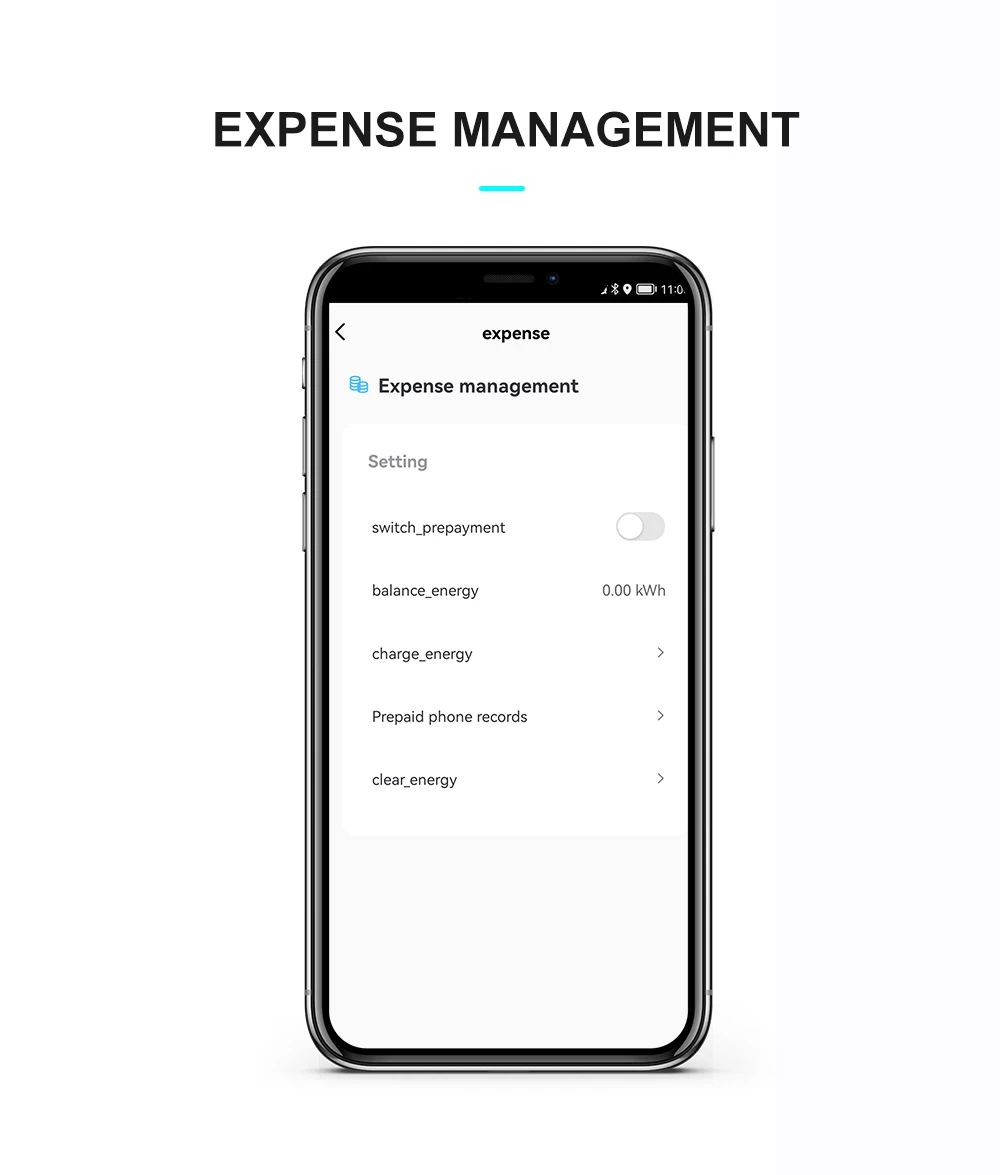

2. Prepayment function
1. Total active energy kWh measure
2. APP can read kWh , R.M.S current , voltage , active power

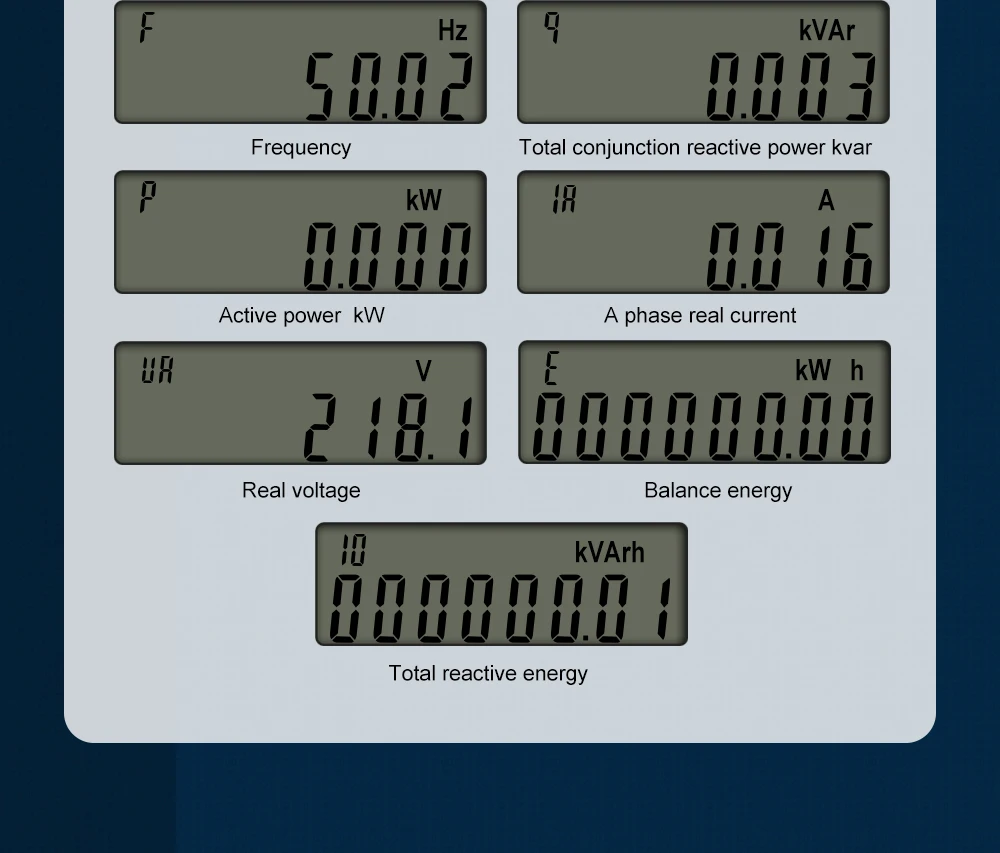

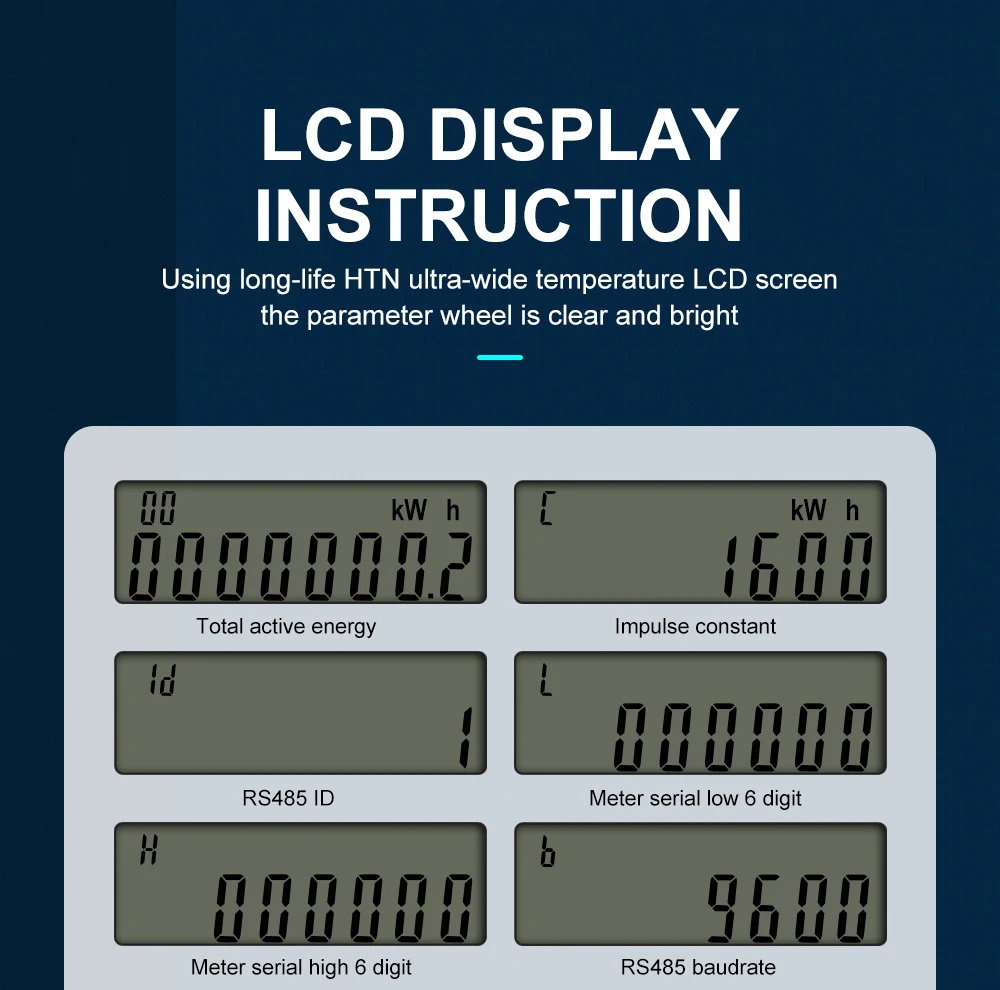

3. LCD display, Real-time display of Voltage, Current, Active Power, reactive Power, power factory ,frequence, total Energy kWh

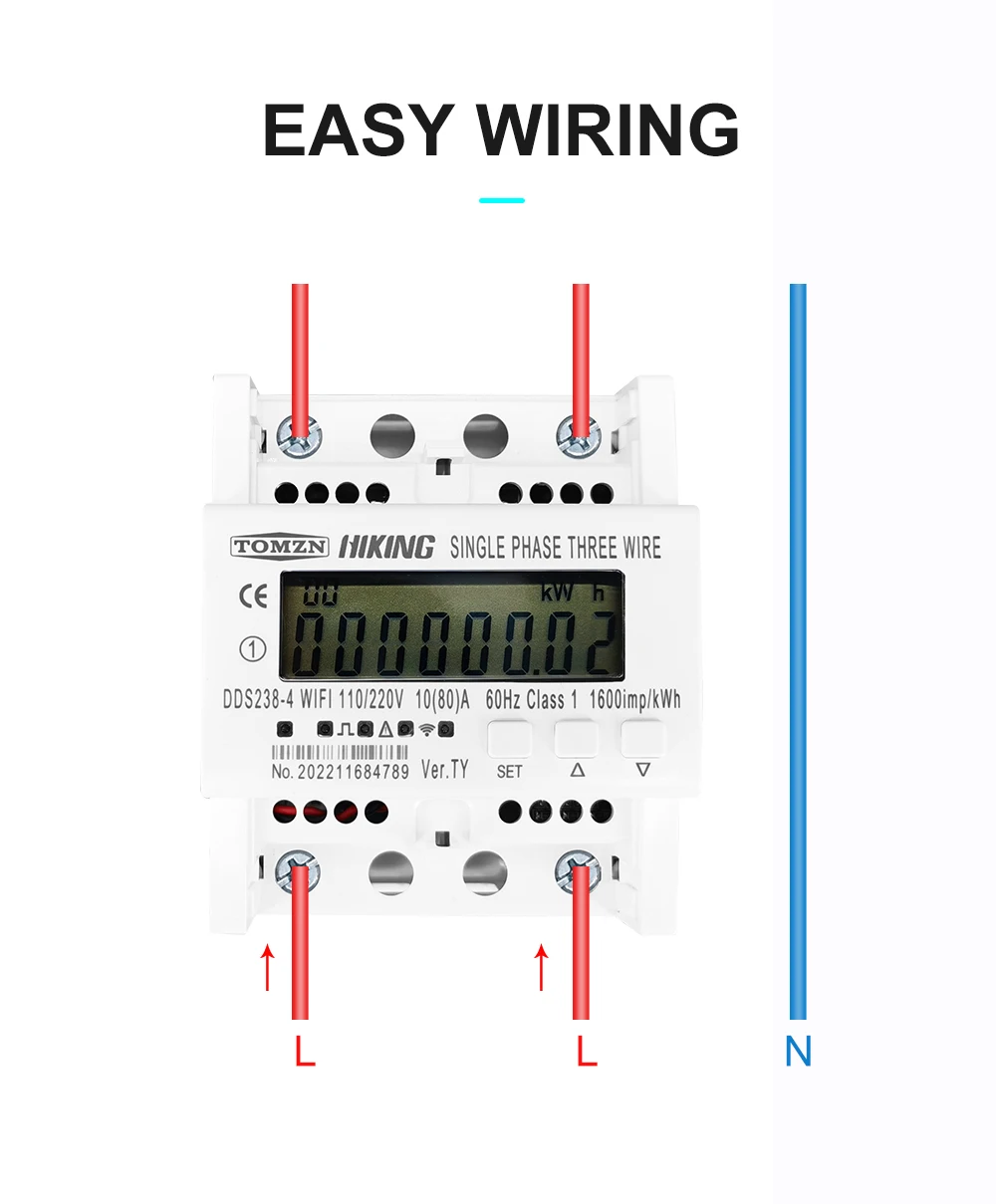

4. Power Supply: 110V+110V+N, Please noted this meter for Brazi, USA. 2 phase 3 wires.
5. MAX Current: 80A
6. Pulse Frequency: 1600imp/kWh

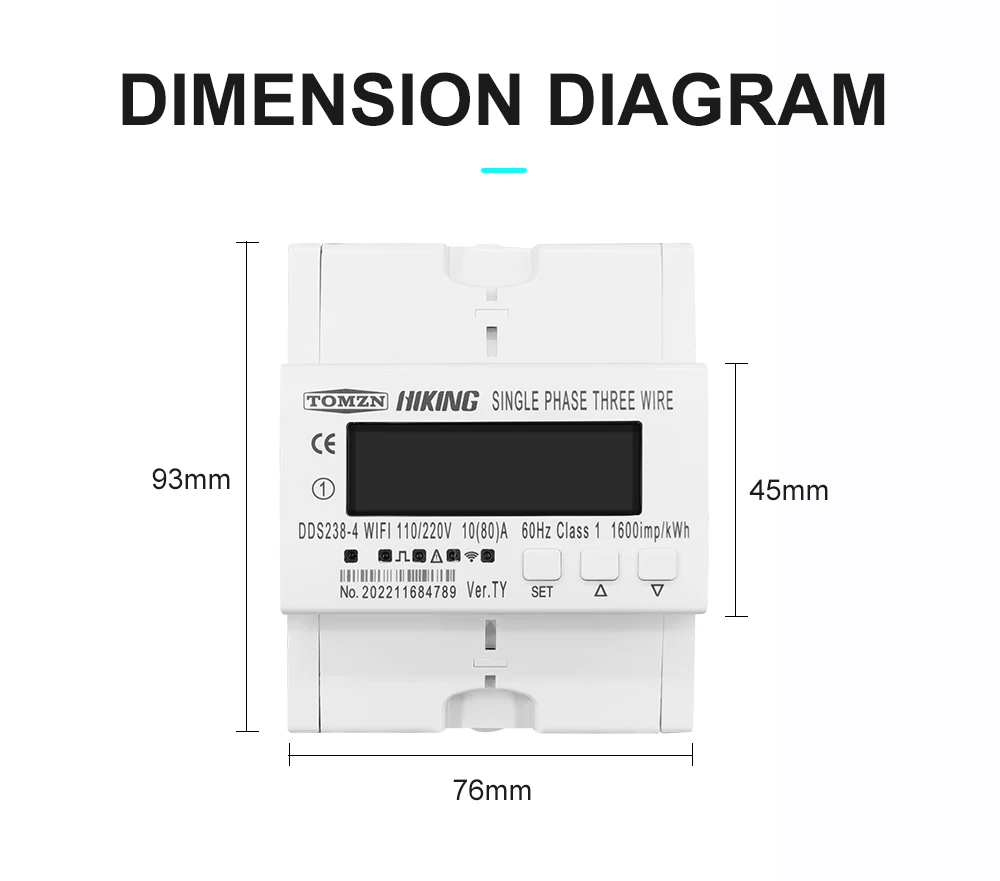

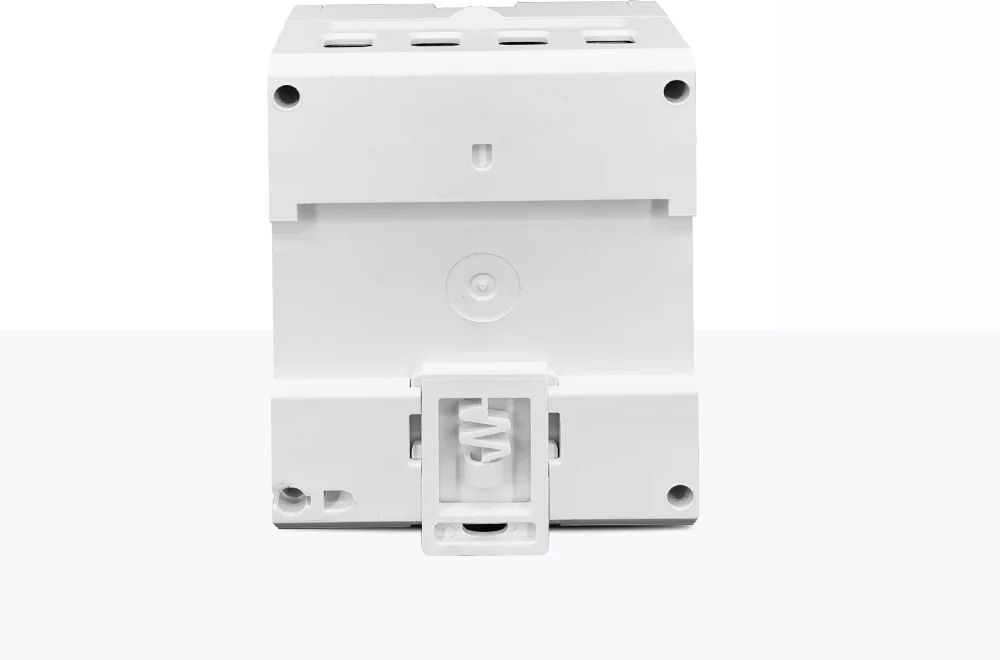

7. 35mm Din Rail install
8. Active energy accurate isclass 1 , IEC62053-21
Push the button last more than 10s , the WIFI led will flash quickly , then use APP to operation
bear 400V /hour not damage

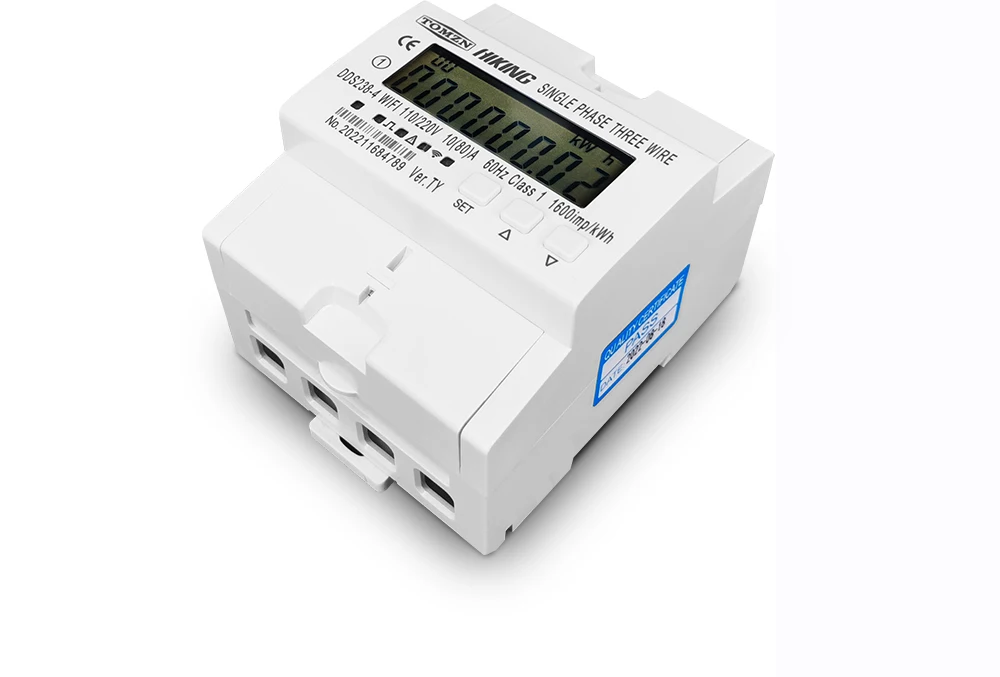

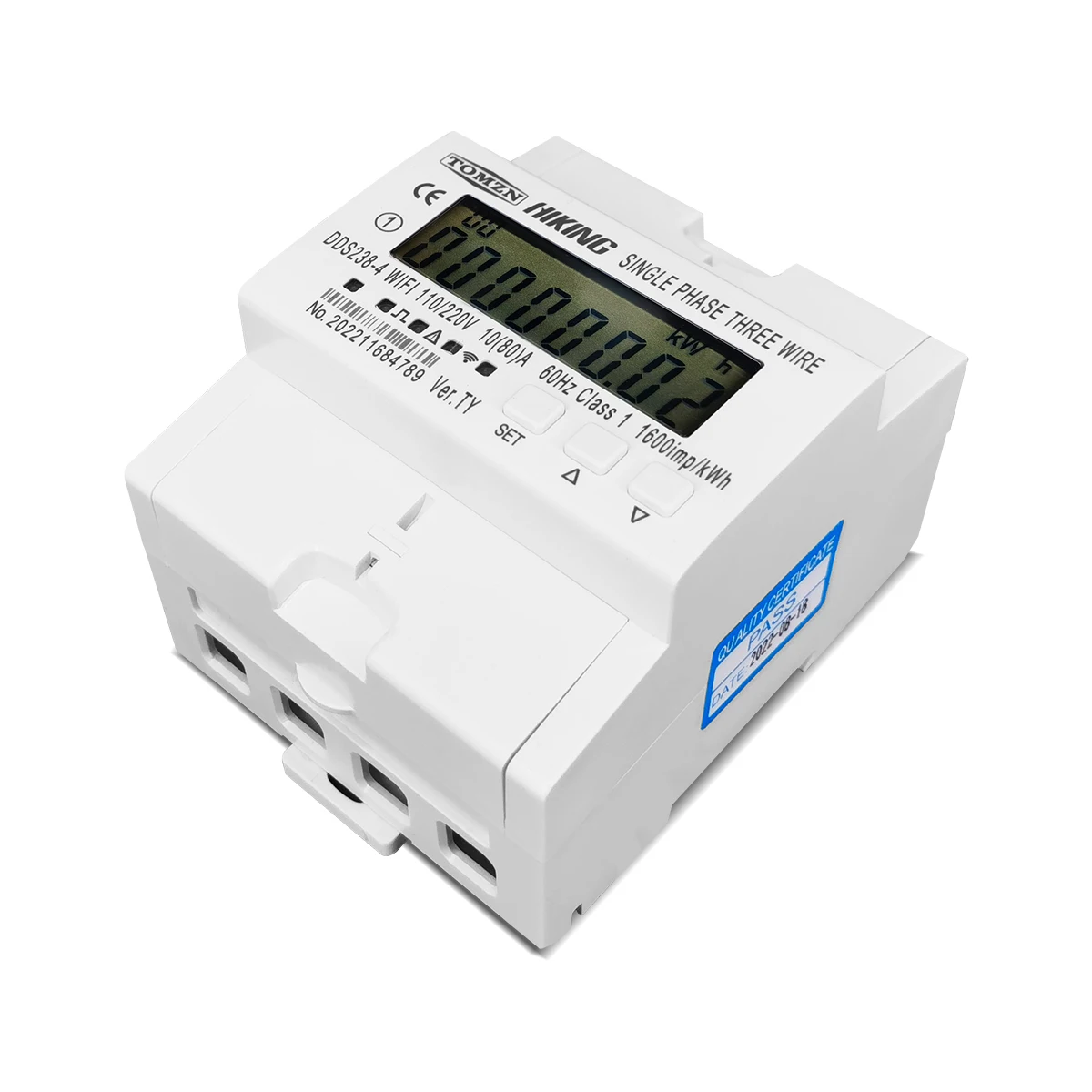

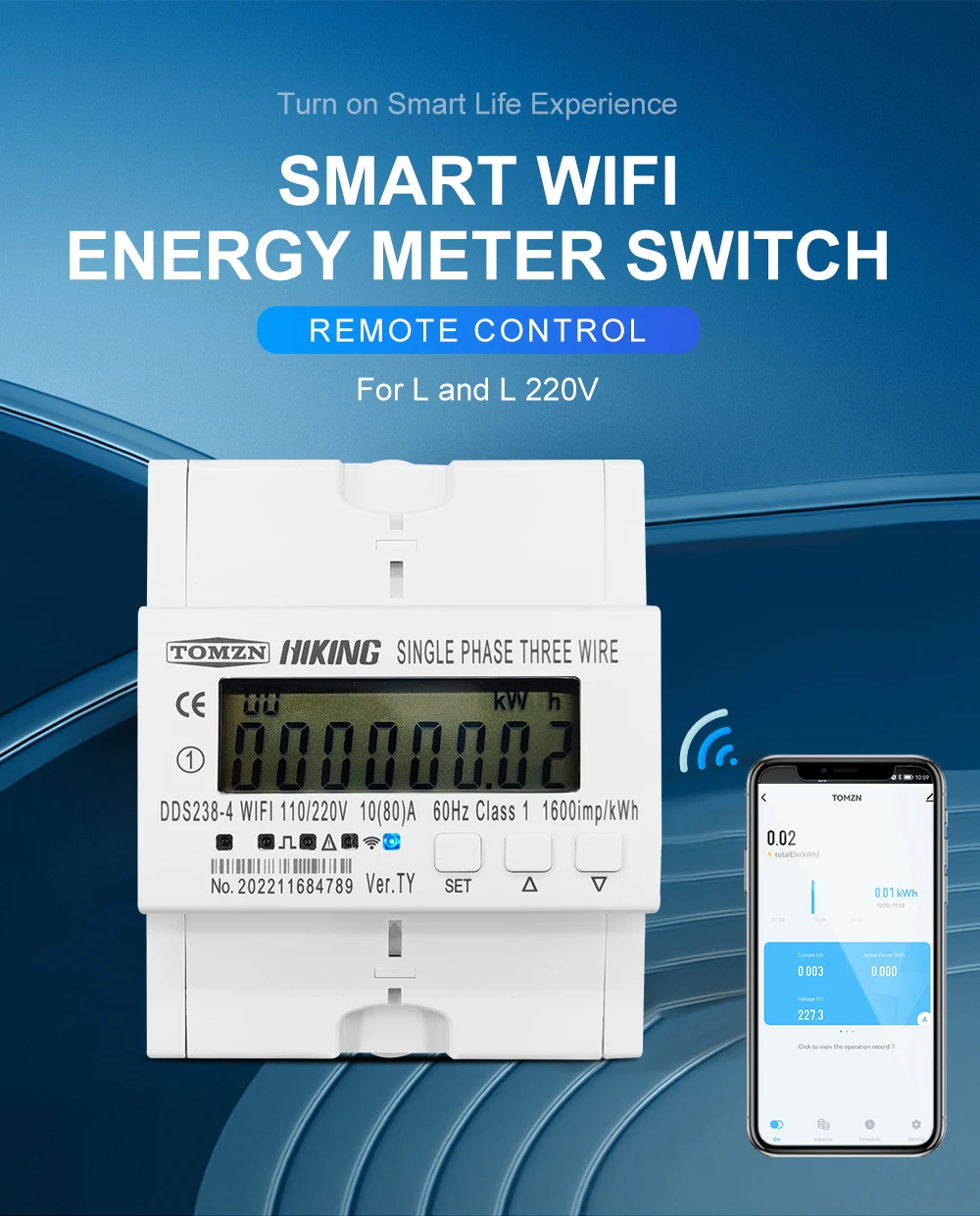

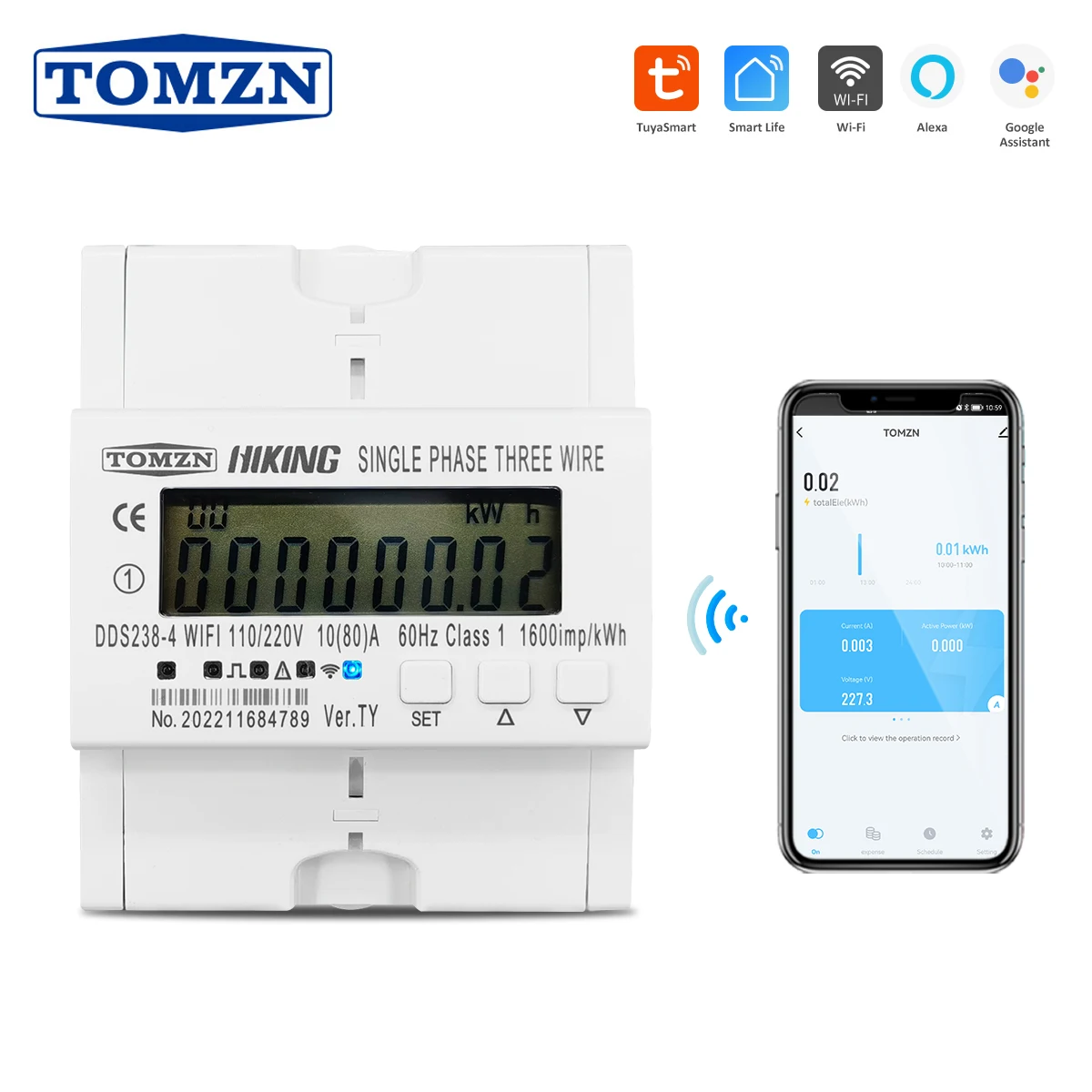

The meter is designed to measure single phase three wire AC active energy and variable parameter like residential, utility and industrial application in South America or North America. It can remote read from WIFI communication . It is a long life meter with the advantage of high stability, high over load capability, low power loss and small volume.
Basic Function
??LCD display, button for LCD display step by step

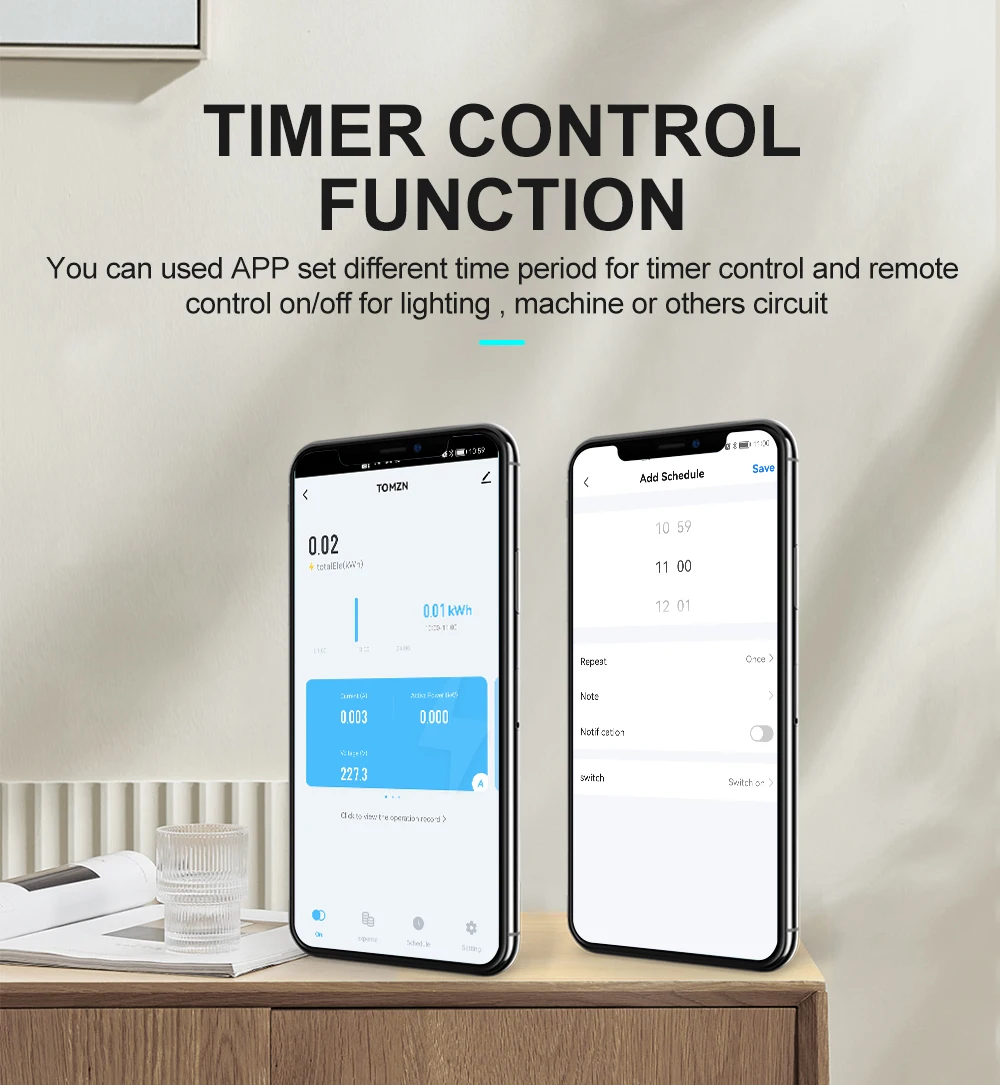

??Remote ON/OFF function by app
??The meter also display real conjunction phase voltage, conjunction phase active power, L1 line current, frequency

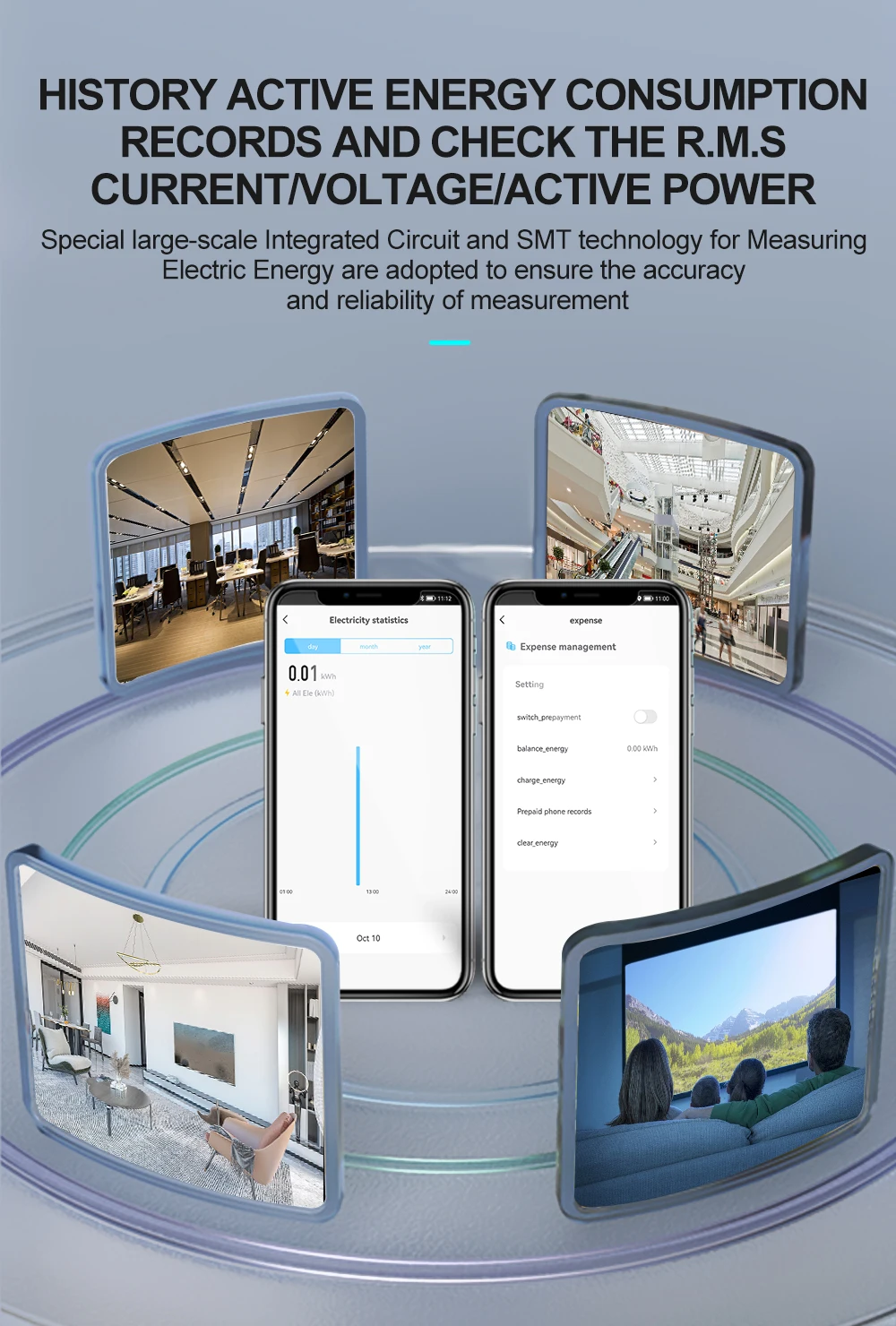

??history active energy consumption tracking by APP
??check the real conjunction phase voltage, conjunction phase active power, L1 line current by APP
??Pulse LED indicates working of meter
??Energy data can store in memory chip more than 15 years after power off
??Active energy will keep in meter memory chip when WIFI connect failed . it will not lose and will upgrade after WIFI connection again
??35mm din rail installation
Technical Data
|
Rate voltage AC |
90??300V(L1-L2)110/220V (L1-N=110V L2-N=110V L1-L2=220V) |
||
|
Rate Current / Frequency |
10(80)A /50Hz or 60Hz??10% |
||
|
WIFI |
802.11b/g/n |
||
|
Connection mode |
Indirect type |
Accuracy class |
1% |
|
Power consumption |
<2W/10VA |
Start current |
0.004Ib40mA |
|
AC voltage withstand |
4000V/25mA for60s |
Over current withstand |
30Imax for 0.01s |
|
IP grade |
IP20 |
Executive standard |
IEC62053-21 |
|
Work temperature |
-25?桫70?? |
Pulse output |
Passive pulse, 80??5 ms |
