Description

City Power ? Generator

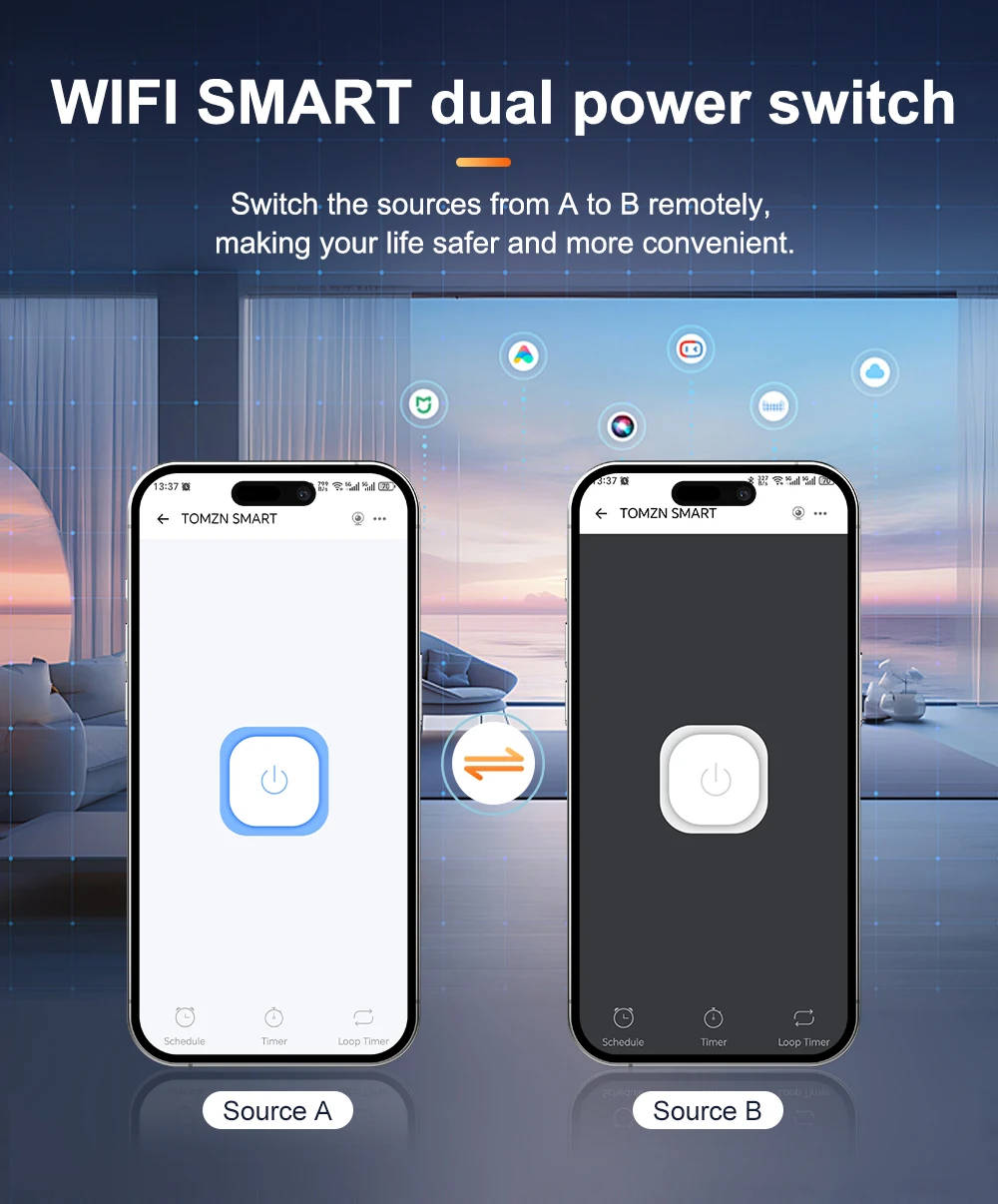

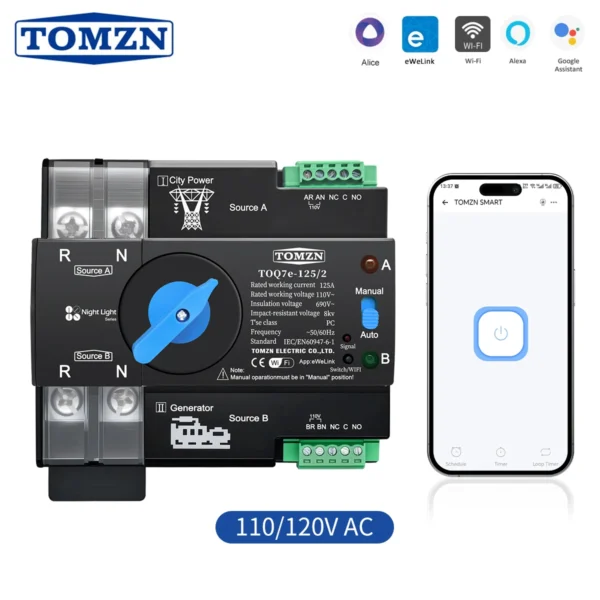

WIFI smart dual power switch by eWeLink

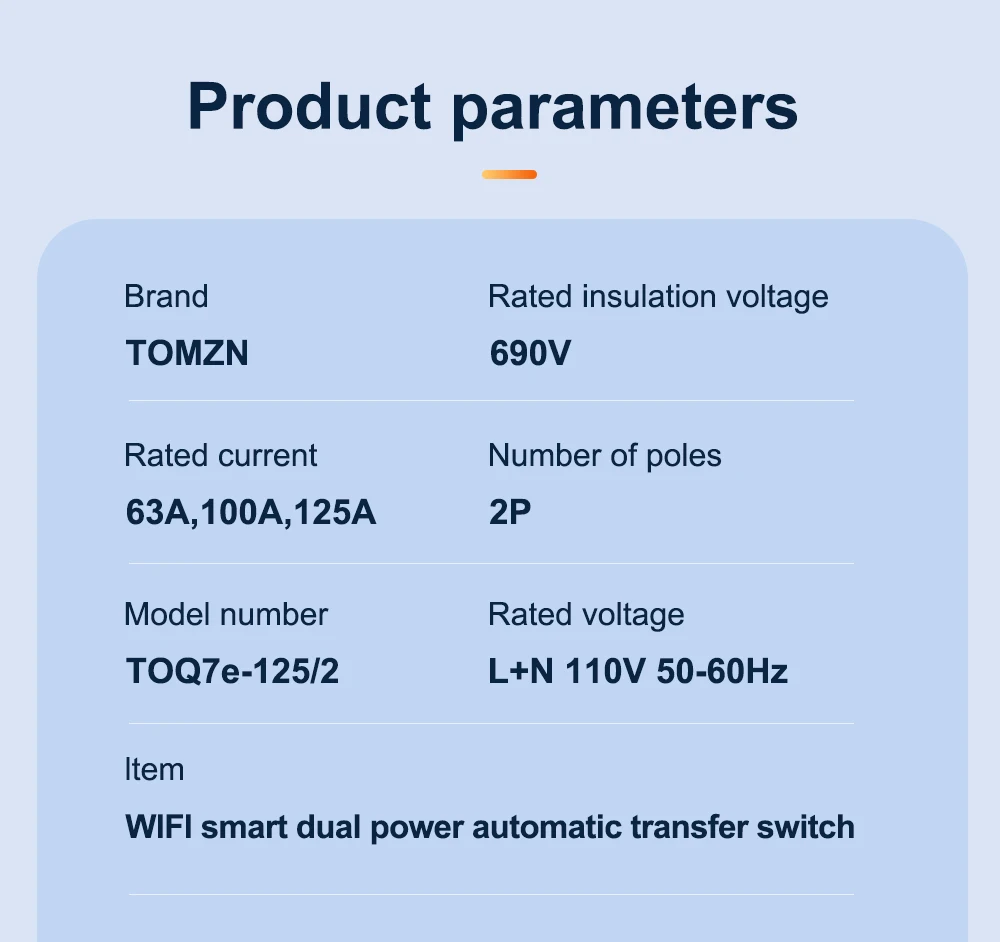

General

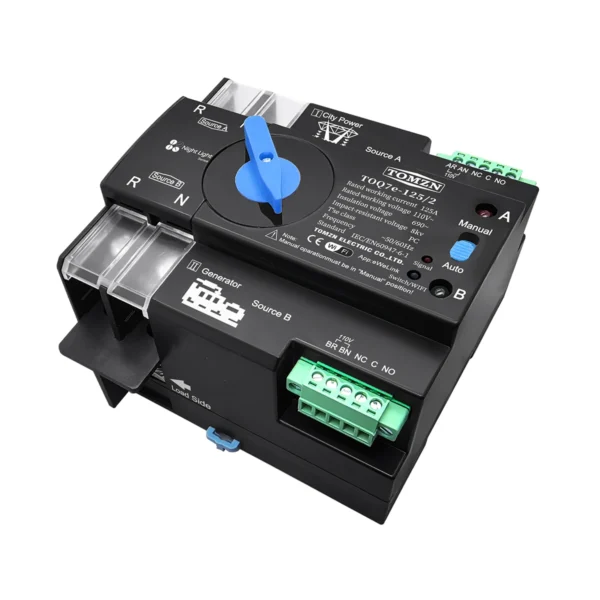

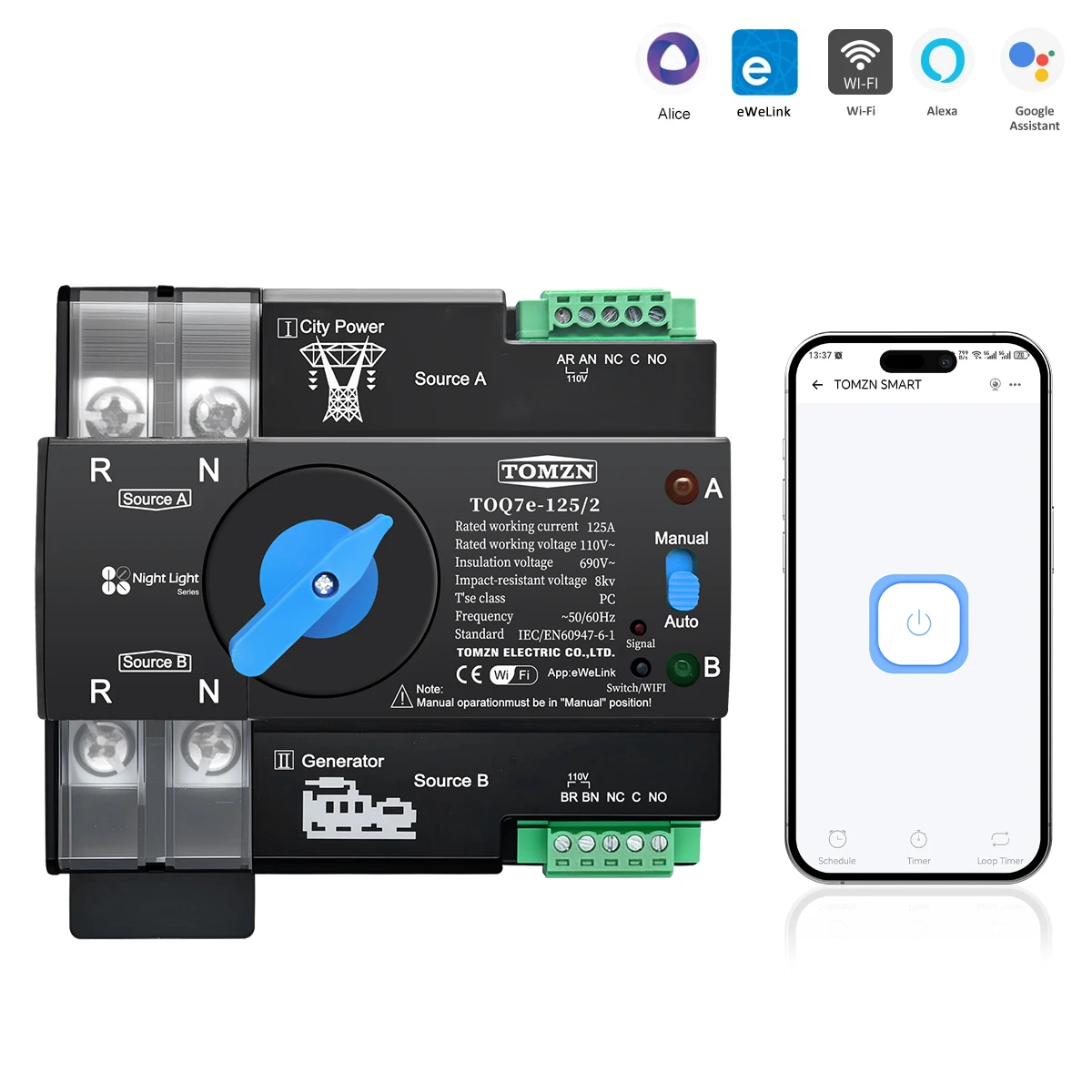

TOMZN Night light series TOQ7e Mini ATS Dual Power Automatic Transfer Switch is PC Level, new developed micro household power transfer switch. When the normal city power is abnormal, the back up power works at once, no Interrupt,ensures the continuirty, reliability, and safety of power supply.

Rated impulse withstand voltage (KV):8KV

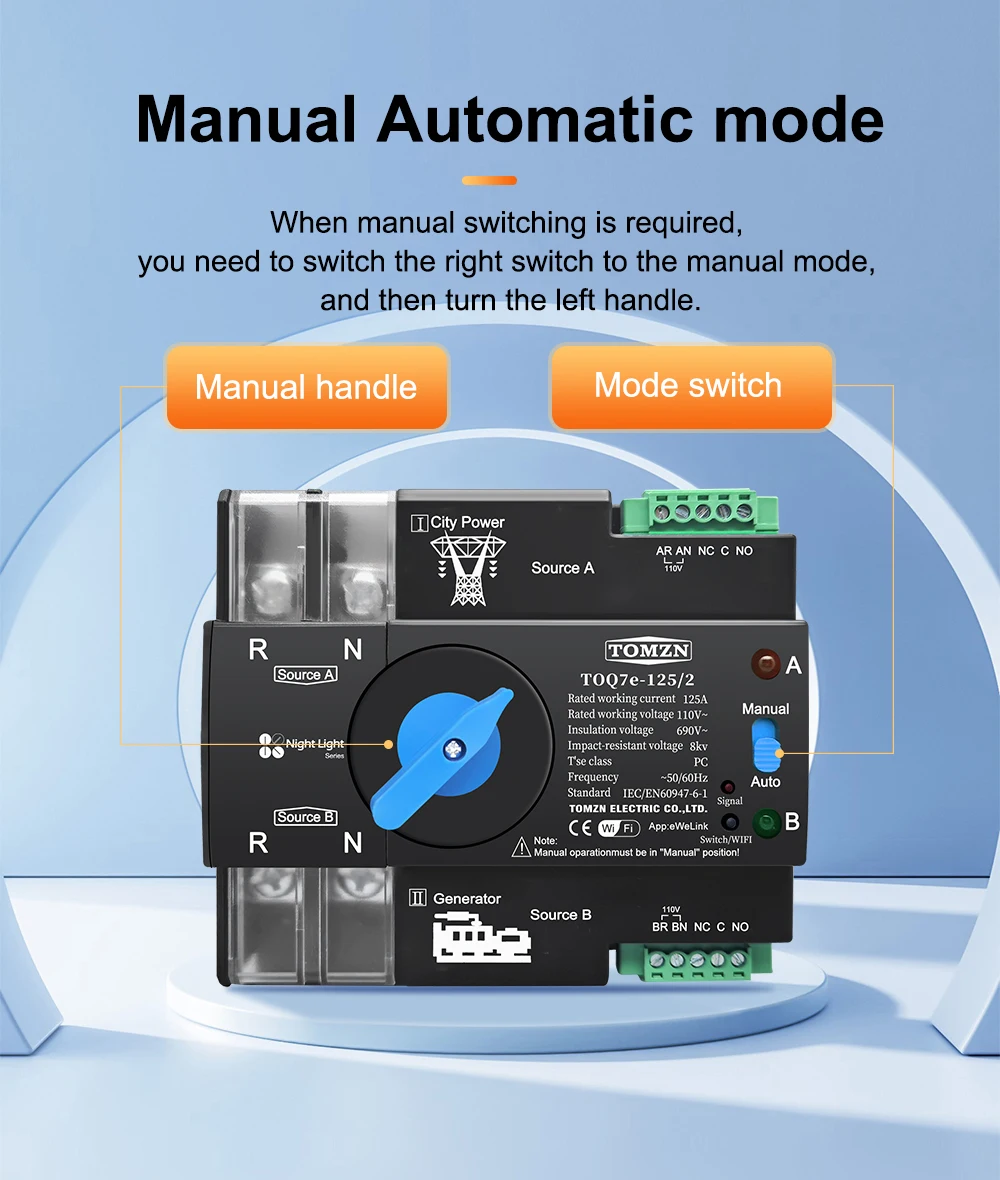

Power-on State: After enabling this function, the device can perform automatic switching just like a normal ATS.

Rated supply voltage Us: AC (L N) 110V-120V 50Hz-60Hz

Working condition: 85% Us~110% Us

Switching time: <50ms

Action time: <50ms

Electrical Life:2000 times;

Mechanical Life: 5000 times

Noted: the product works with L+N 110-120V 50-60Hz
