Five models

• INPUT:Universal socket    OUTPUT:EU socket
• INPUT:Thailand socket    OUTPUT:Thailand socket
• INPUT:France socket    OUTPUT:EU socket
• INPUT:UK socket    OUTPUT:UK socket
• INPUT:EU socket    OUTPUT:EU socket

1. Operating Modes:

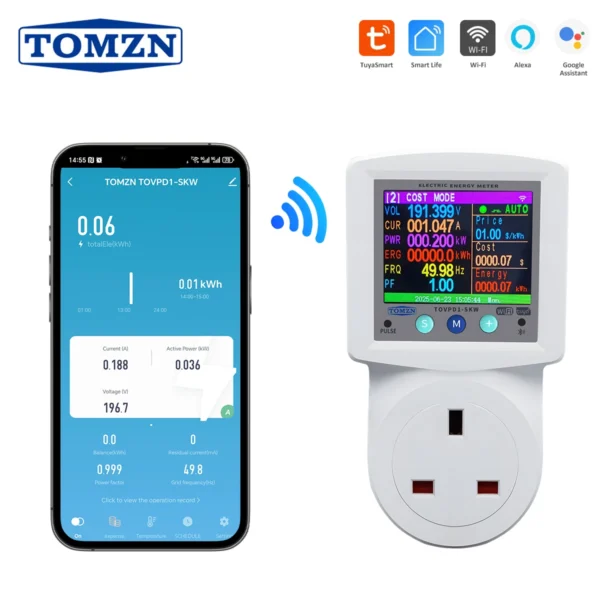

   • Energy Mode: Displays voltage, current, power, energy, frequency, and power factor.

   • Cost Mode: Prepaid function with automatic power cutoff upon reaching a set consumption limit.

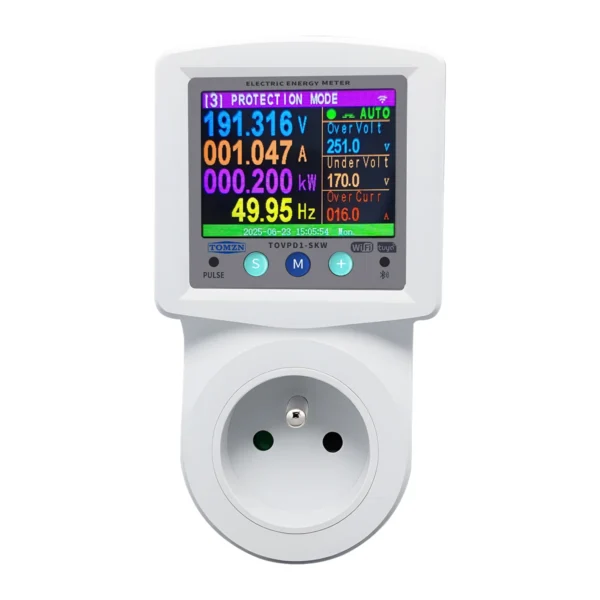

   • Protection Mode: Includes over-voltage, under-voltage, and over-current protection.

   • Timing Modes: Time-off, Time-on, Time-on/off, Time-off/on, and Time-repeat modes.

2. Key Parameters:

   • Model: TOVPD1-SKW

   • Power Supply: 140?C300V AC, 50/60Hz.

   • Max Load: Adjustable 1?C16A (default: 16A).

   • Protection Settings:

     • Over-Voltage: Protection range 230?C300V (default: 270V), recovery 225?C295V (default: 265V).

     • Under-Voltage: Protection range 140?C210V (default: 170V), recovery 145?C215V (default: 175V).

     • Over-Current: Adjustable 0.1?C16A (default: 16A), action time 1?C30s (default: 1s).

   • Recovery Delay: 1?C500s (default: 30s).

   • Power Consumption: <2W.

   • Mechanical Lifespan: 100,000 cycles.

   • Reset Options: Supports energy data clearance and factory reset.

   •
