Description
Function: LRS series can convert AC110V/220V voltage to DC5V/12V/15V/24V/36V/48V voltage.

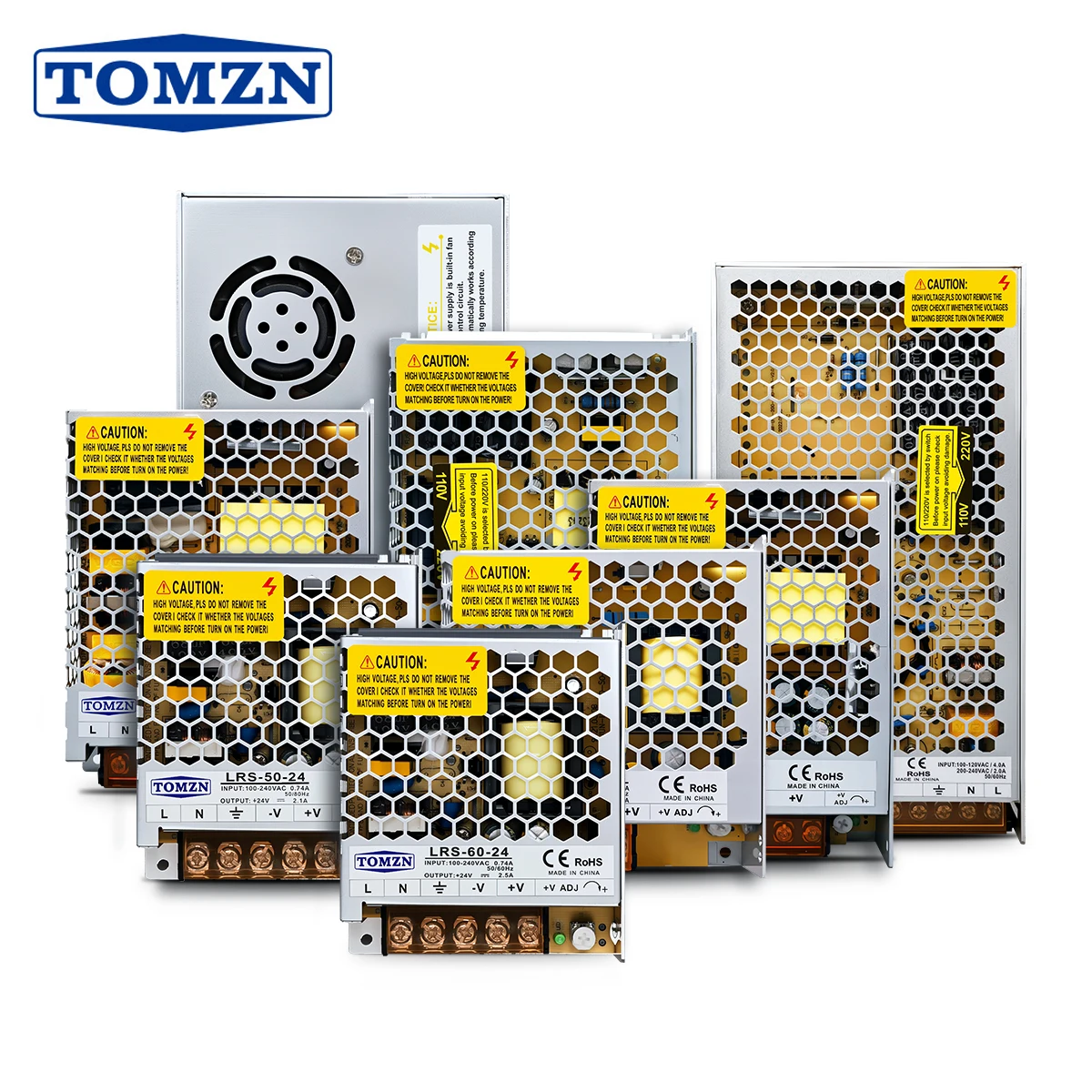

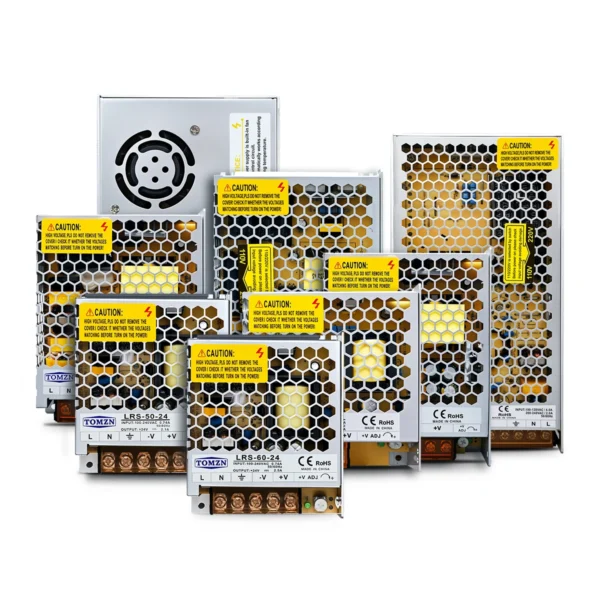

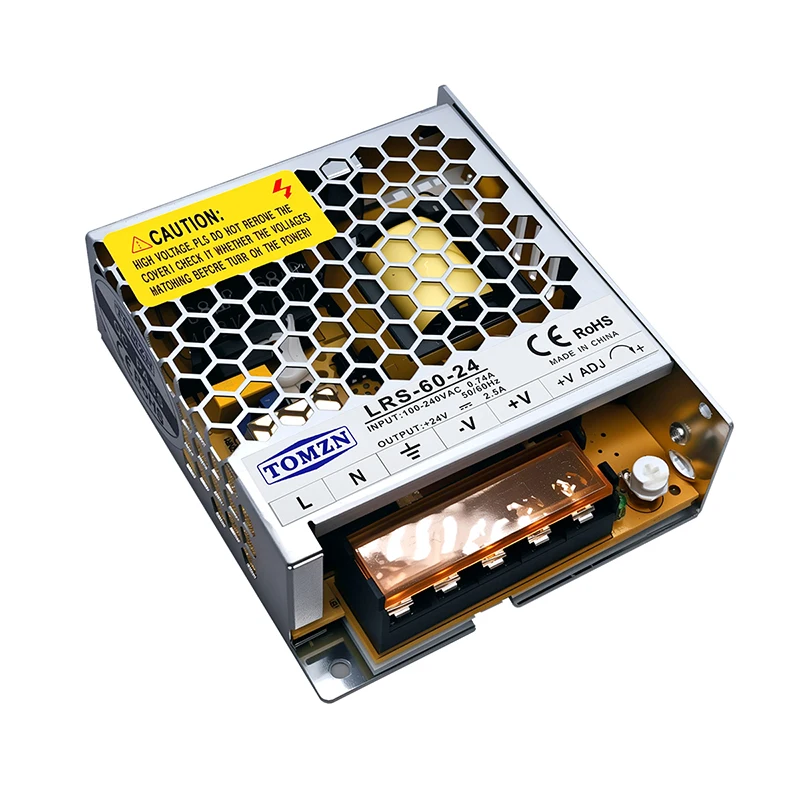

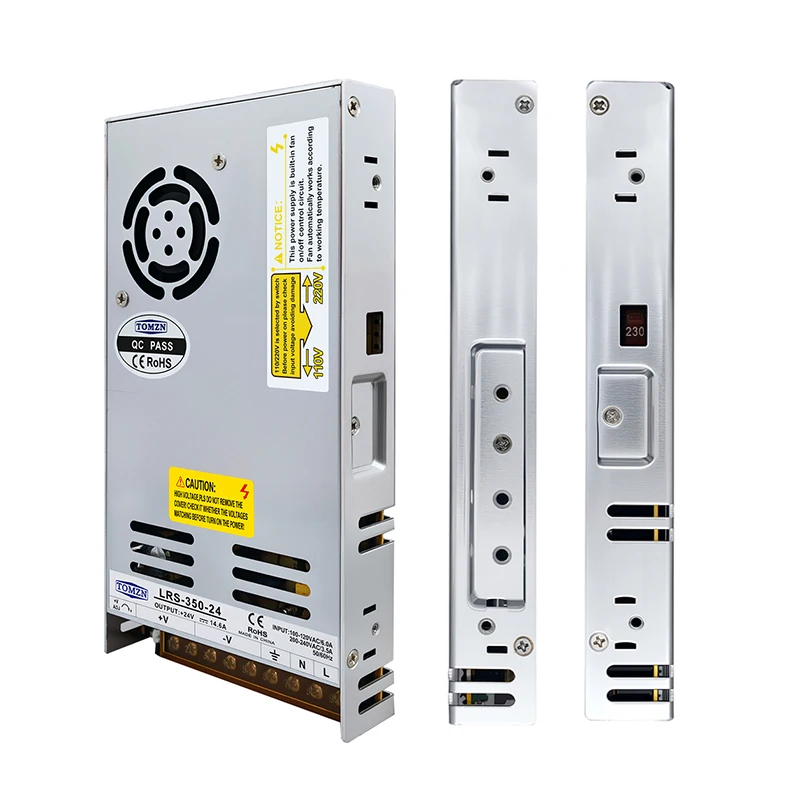

LRS-50,LRS-60,LRS-75,LRS-100,LRS-120,LRS-150,LRS-250,LRS-350
Features
1)AC input range selectable by switch(50W-350W)
2)Protections: Short circuit/ Overload/ Over voltage
3)Forced air cooling by built-in DC fan
4)100% full load burn-in test
5)High operating temperature up to 70??C
6)Operating altitude up to 5000 meters
7)High eficiency, long lifte and high relability
Applications
1)Industrial automation machinery
2)Industrial control system
3)Mechanical and electrical equipment
4)Electronic instruments, equipments or apparatus
Description
LRS series is a single-output enclosed type power supply with low profile design. LRS-150, LRS-200, LRS-350 Adoting the input of 115VAC or 230VAC (select by switch), LRS-50, LRS-75, LRS-100 Adoting the Full range 85-264VAC Input, the entire series provides an output voltage line of 5V, 12V, 15V, 24V, 36V and 48V.
In addition to the high fficiency up to 89%, with the bult-in long lite fan LRS can work under -25~+70C with full load. Delivering an extremely low no load power consumption (less than 0.75W), it allows the end system to easily meet the worldwide energy . LRS has the complete protection functions and 5G anti-vibration capability; it is complied with the international satety regulations such as L60950-1. LRS series serves as a high price-to-performance power supply solution for various industrial applications.
