Description

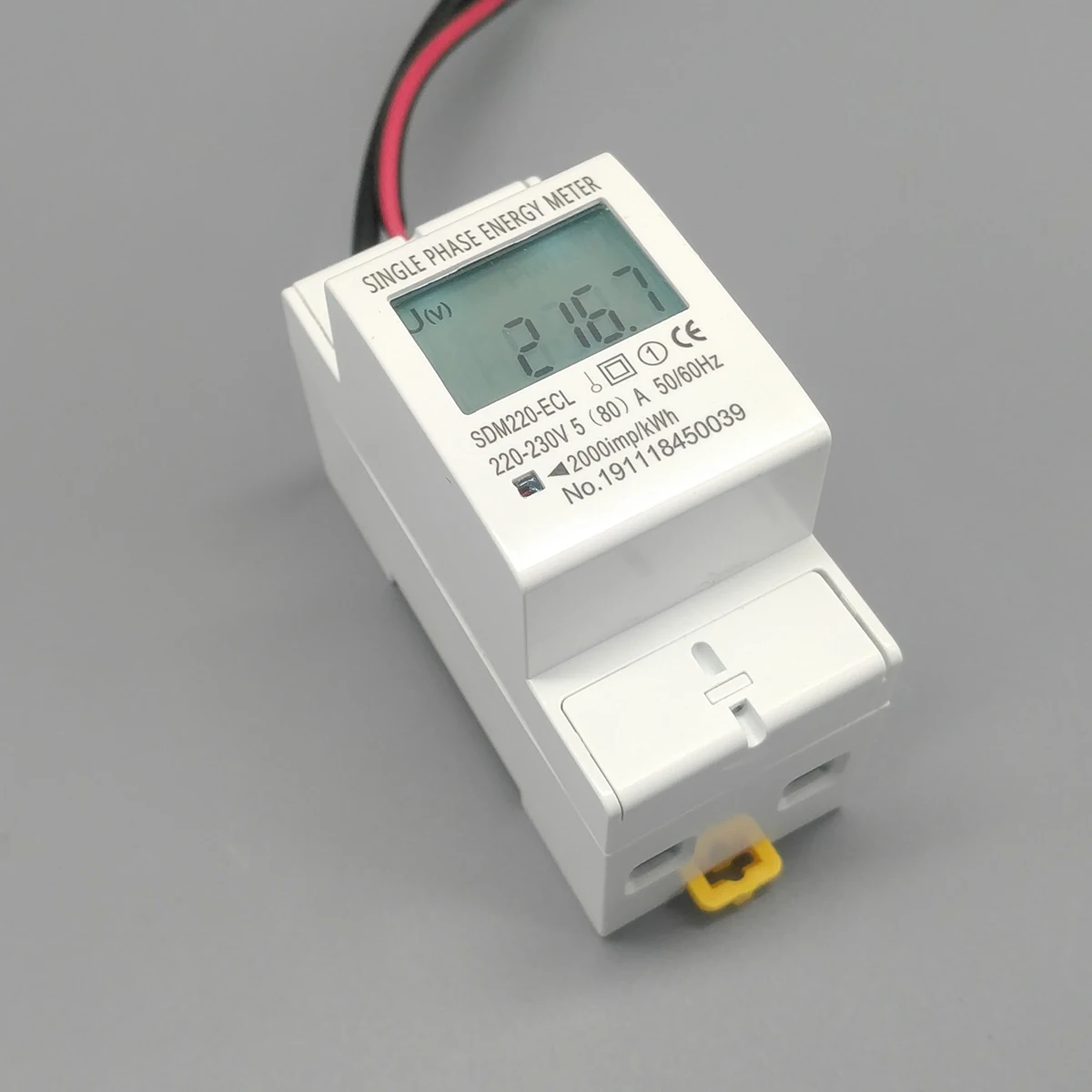

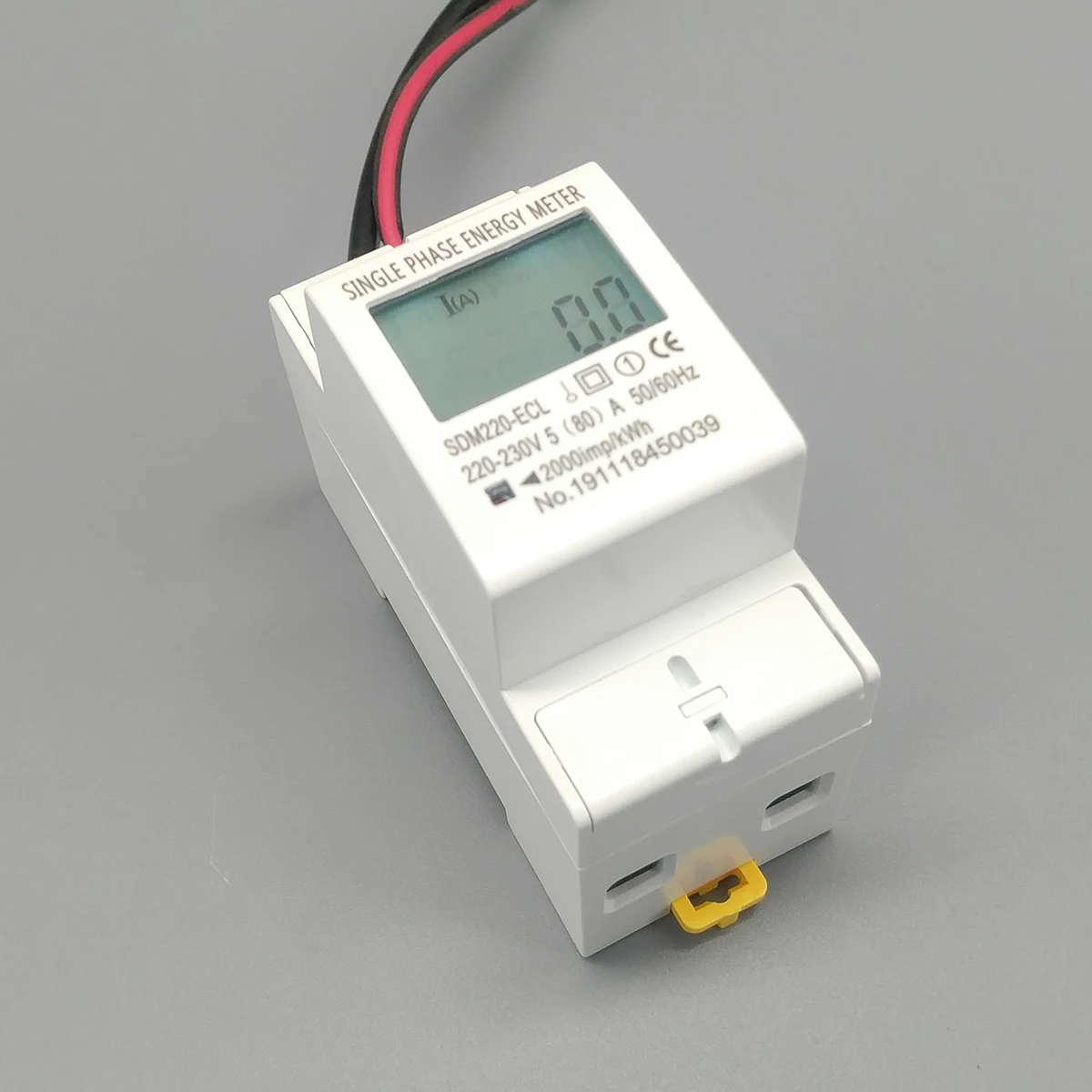

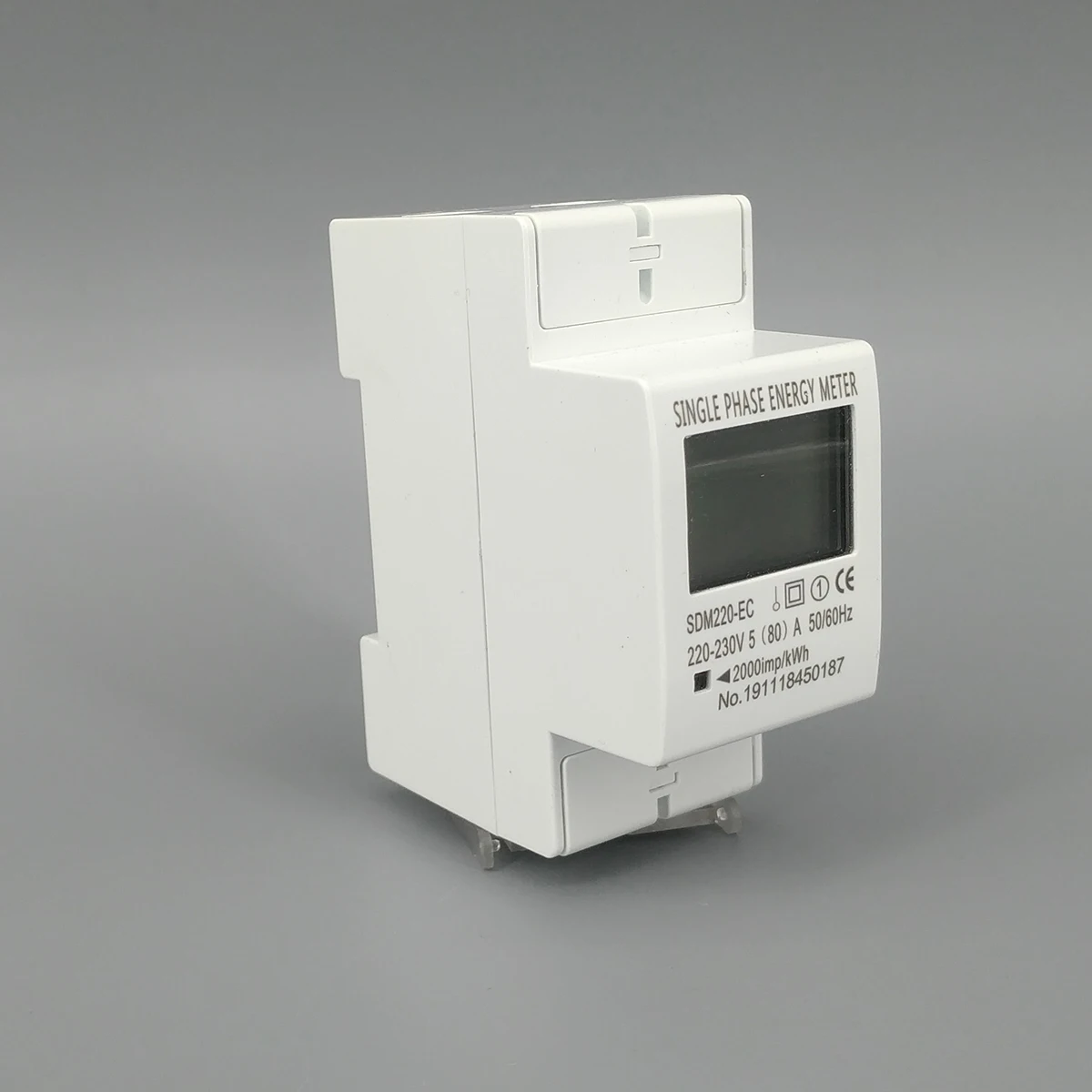

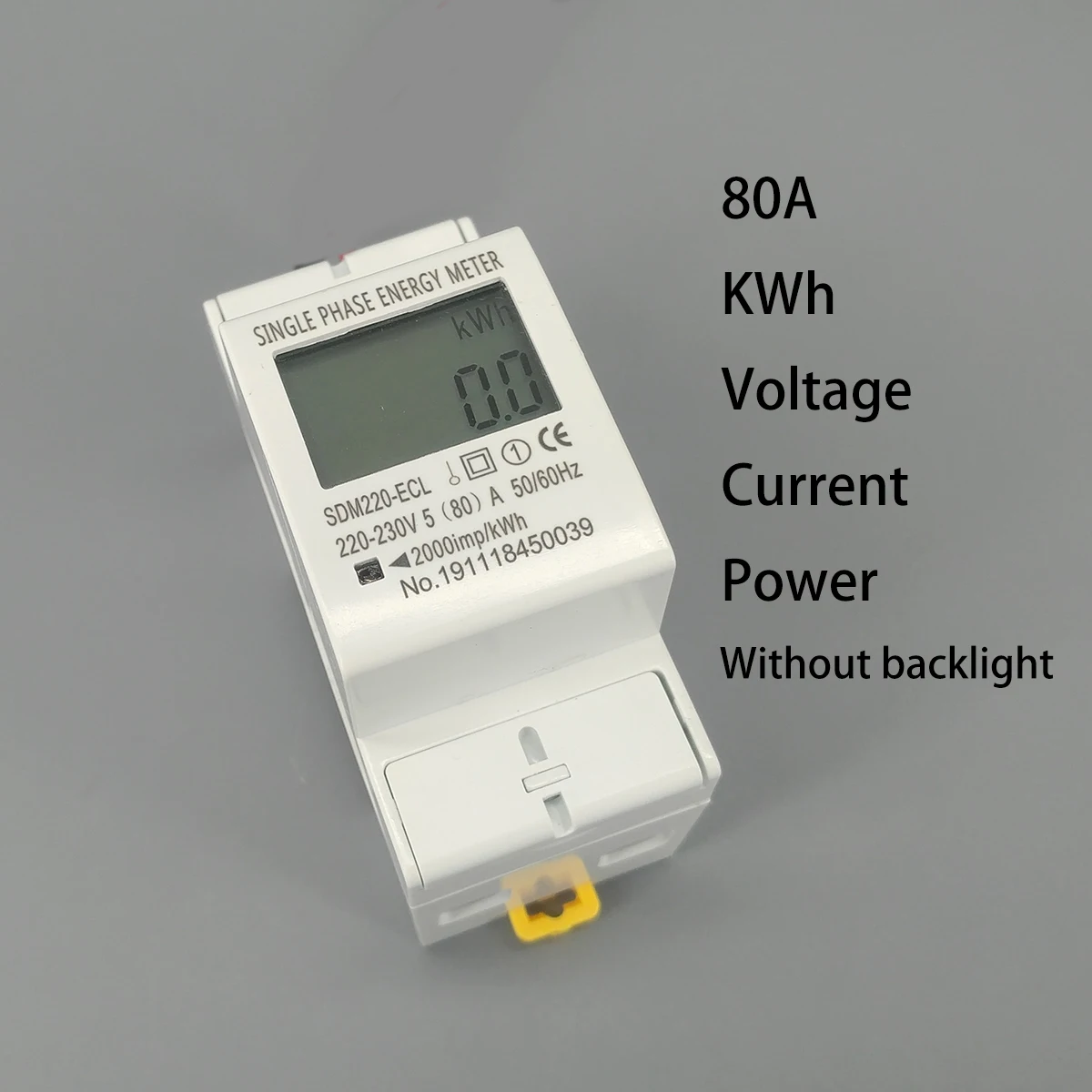

Backlit Single Phase Two Wire LCD Digital Display Wattmeter Power Consumption Energy Meter kWh AC 230V 50Hz Electric Din Rail

Features:

1. Compared with the traditional meter, this product looks small and beautiful, light weight, easy to install!

2. The traditional maximum current meter is 4 times the rated current, the product is smart meters, overload capacity

Up to 12 times the base reference current

3. This product is measured by LCD digital power, no reset button, to avoid human tampering with the data!

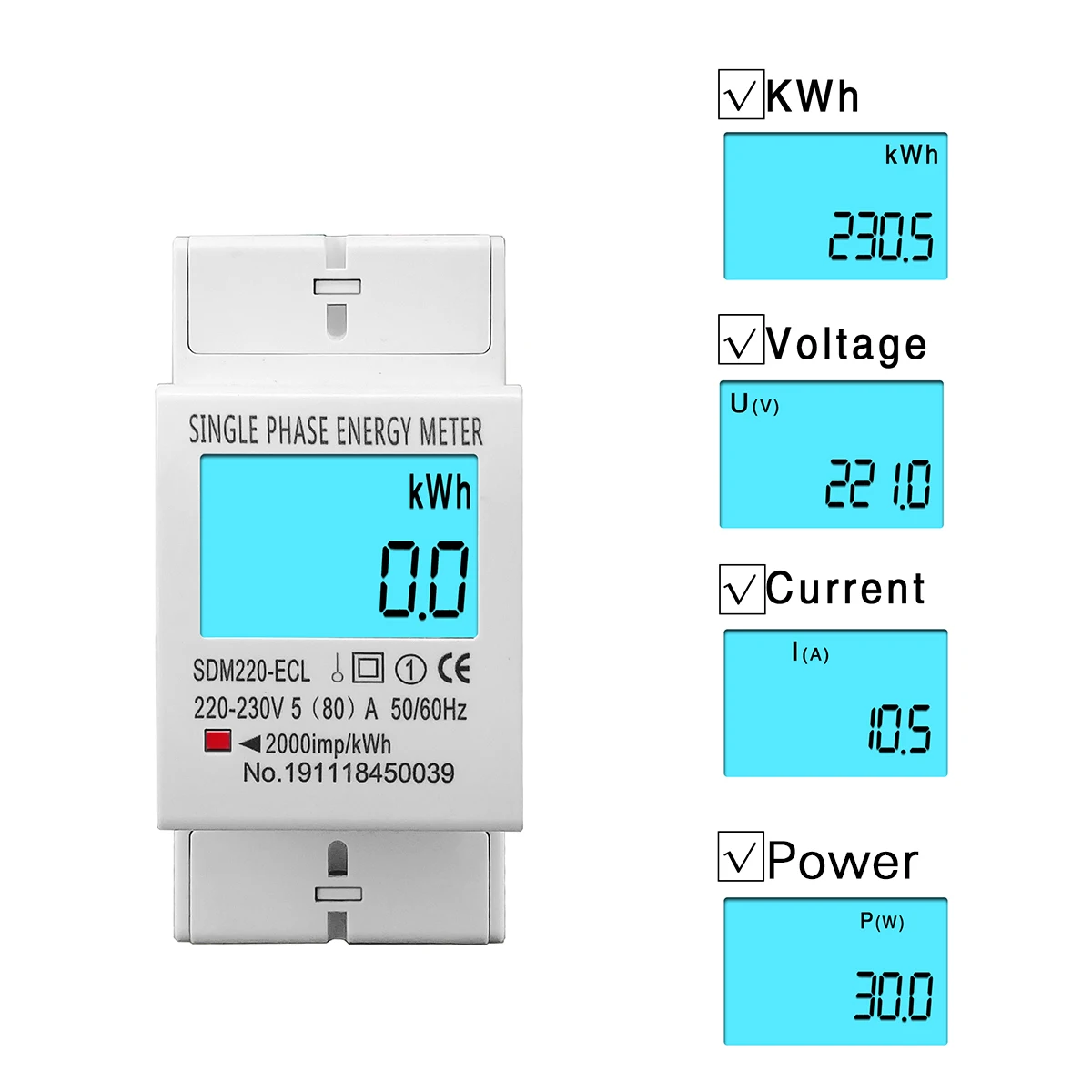

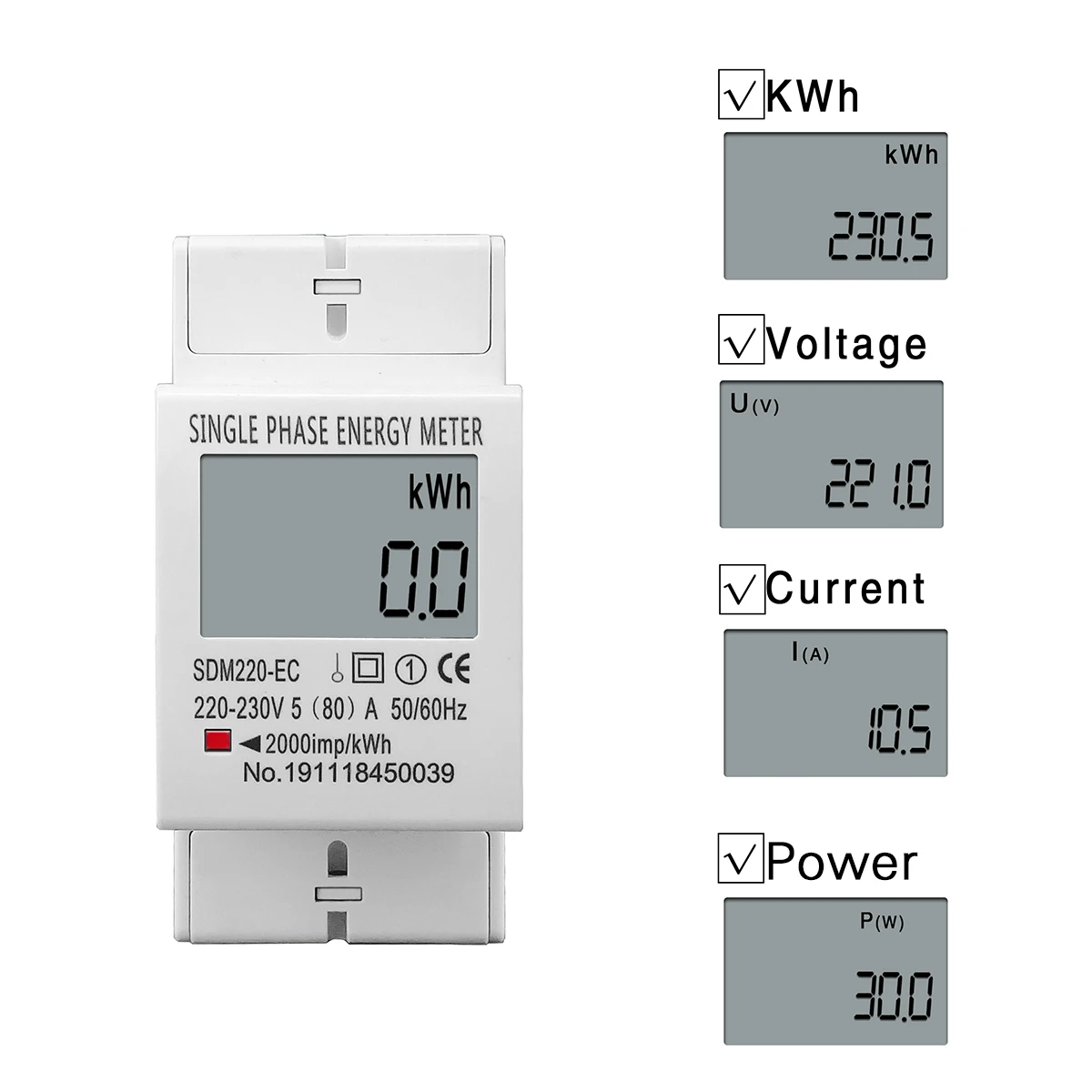

The meter is multifunctional rotation display real Voltage , real Current , real Power , total Energy KWH

Parameters:
Maximum current: 80A
Pulse frequency: 2000imp / kwh
LCD display with backlight

Pulse LED indicates working of meter. Pulse output with optical coupling isolation
35mm DIN rail installation

Package will include:

1 pcs Energy meter
