Description

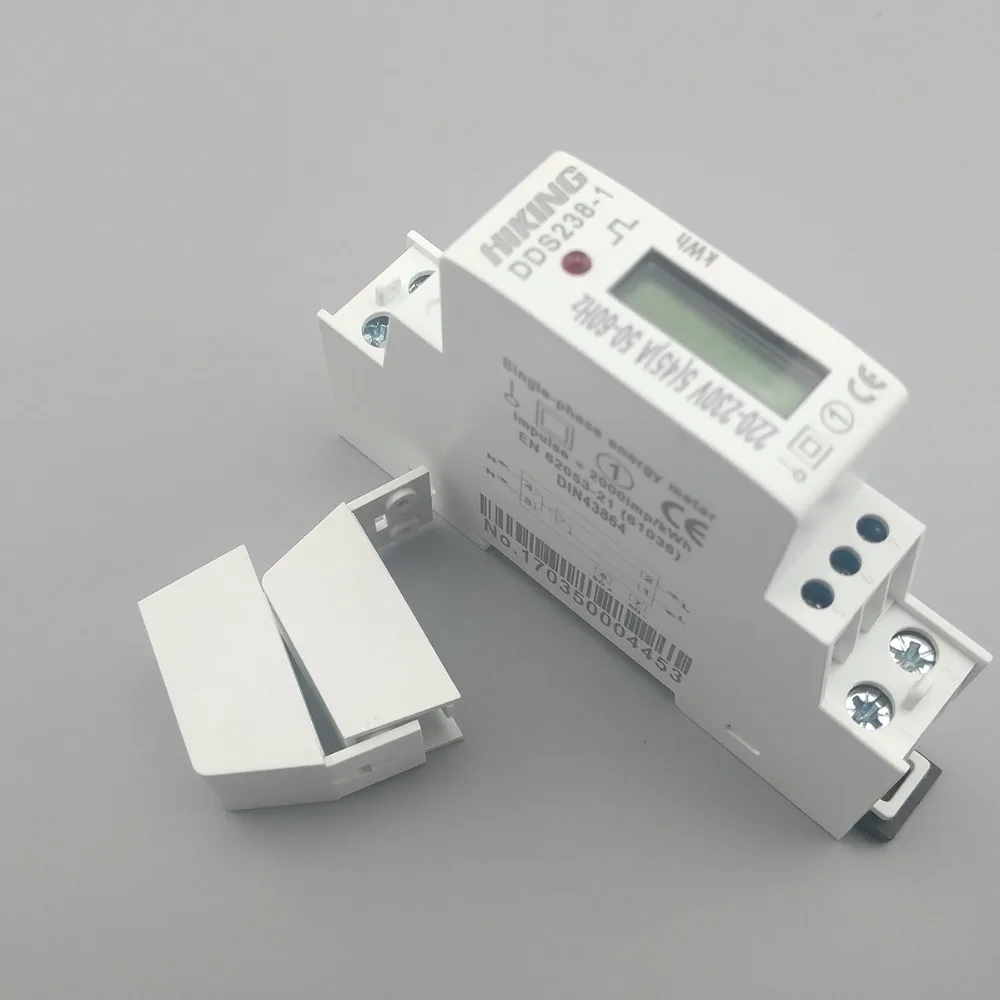

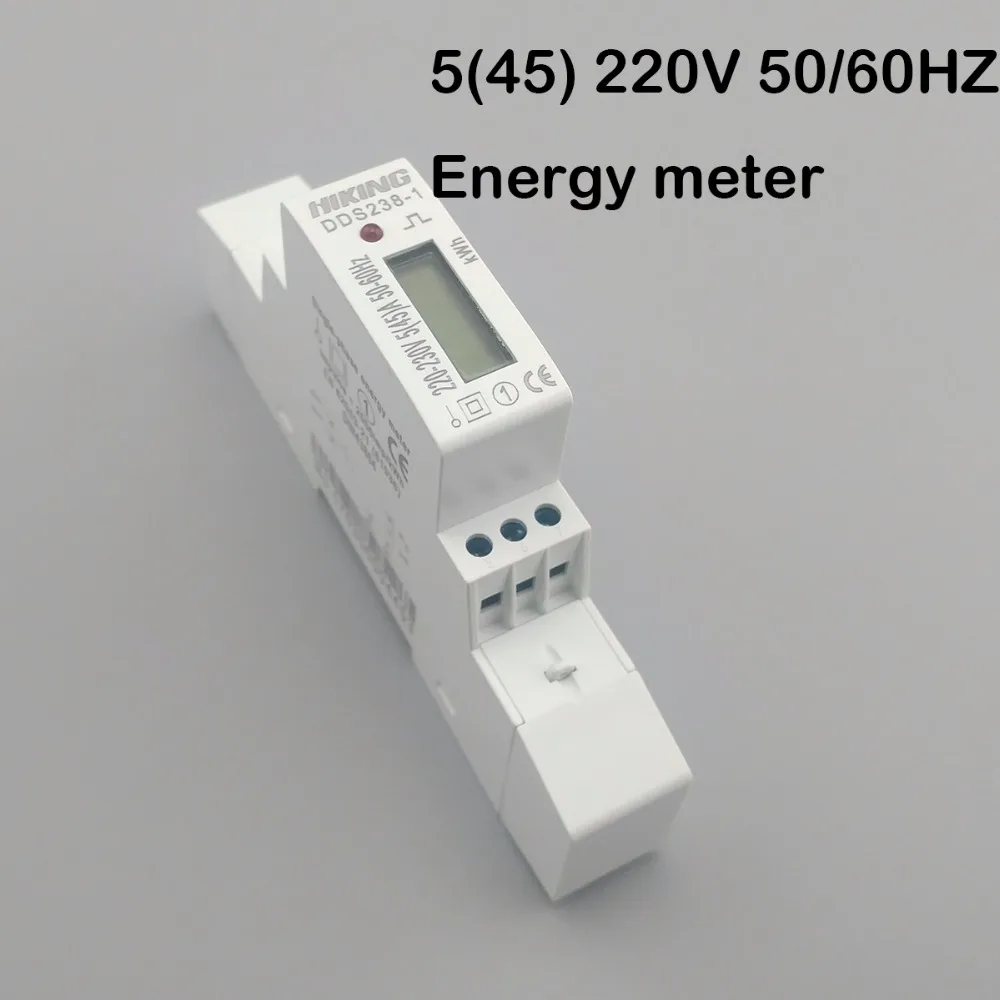

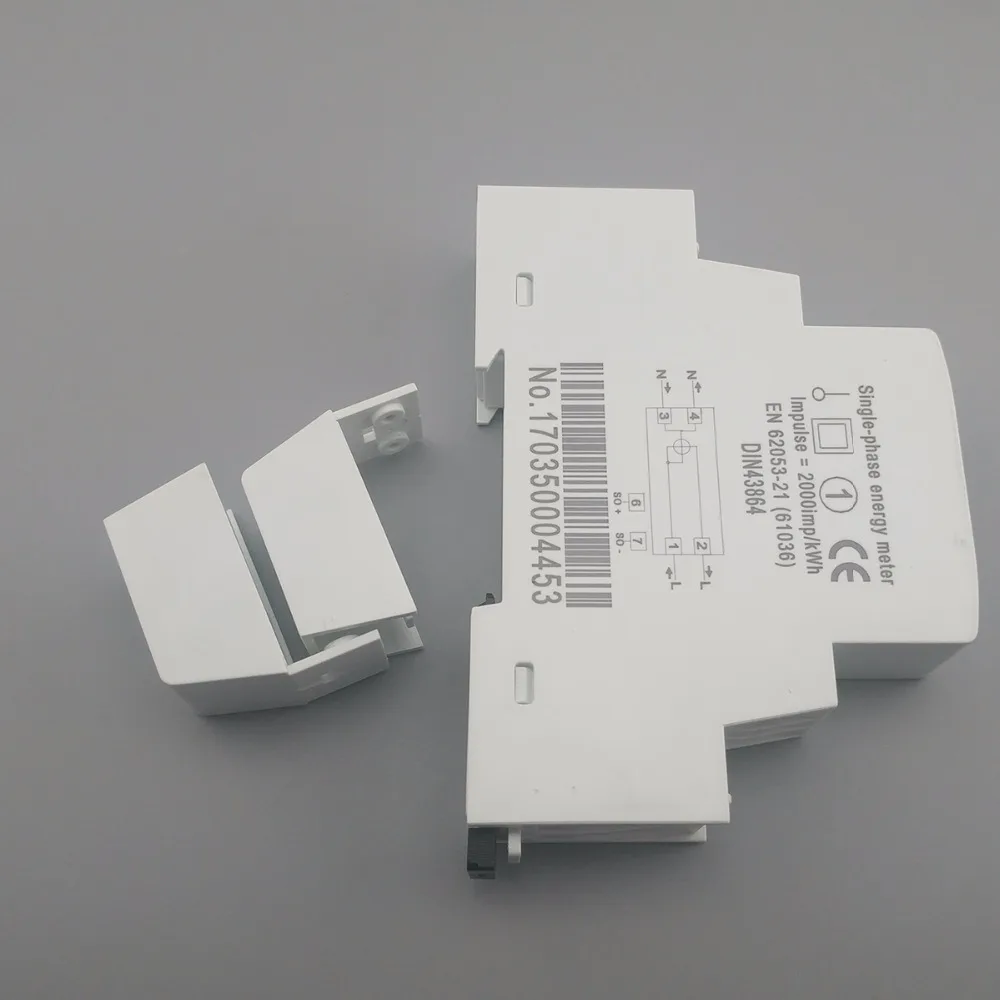

Din Rail Meter

5(45)A 230V 50HZ/60HZ LCD Display

6+1 Display

1 Specifications:

Nominal voltage (Un) 220V AC

Operational voltage 220V AC+-10%

Insulation capabilities:

– AC voltage withstand 2KV for 1 minute

– Impulse voltage withstand 6KV – 1.2??S waveform

Basic current (Ib) 5 A

Maximum rated current (Imax) 45 A

Operational current range 0.25A – 45A

Over current withstand 960A for 0.01s

Operational frequency range 50/60HZ

Internal power consumption ??1W / 10VA

Test output flash rate (RED LED) 2000 impulses per kWh (0.5Wh/imp)

Pulse output rate (pins 20 & 21) 2000 pulses per kWh (0.5Wh/imp)

Power supply indicator (Green LED) Meter is connected and working OK

Consumption indicator (RED LED) Flashing at load running

Data display mode 6+1 digits for LCD display

Data save The data can be stored more than 20 years when power cut.

2 Performance criteria:

Operating humidity ?? 75%

Storage humidity ?? 95%

Operating temperature -10??C – +50??C

Storage temperature -30??C – +70??C

International standard IEC 62053-21

Accuracy class 1

Protection against penetration

of dust and water IP51

3 Basic errors:

0.05Ib Cos?? = 1 ??1.5%

0.1Ib Cos?? = 0.5L ??1.5%

Cos?? = 0.8C ??1.5%

0.1Ib – Imax Cos?? = 1 ??1.0%

0.2Ib – Imax Cos?? = 0.5L ??1.0%

Cos?? = 0.8C ??1.0%

Material

Window of register PC inflammable retarding

Case PA inflammable retarding

Terminal block PA inflammable retarding

Protection cover PA inflammable retarding

4 Dimensions

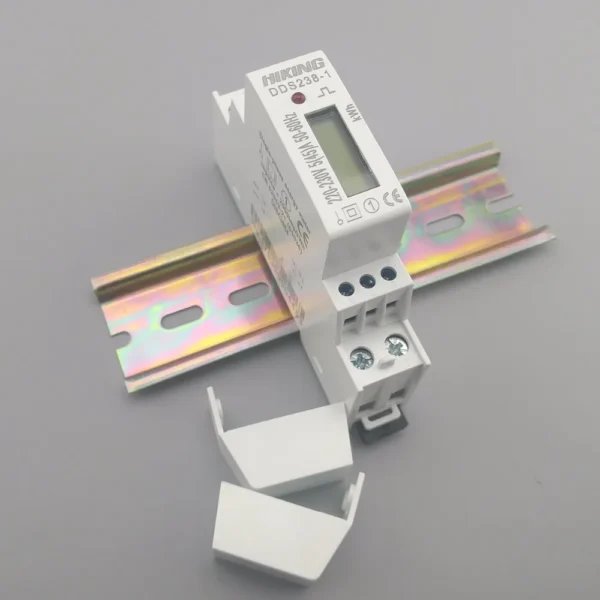

5 Installation

CE EMC

CE LVD

RoHS
