Description
1. Application

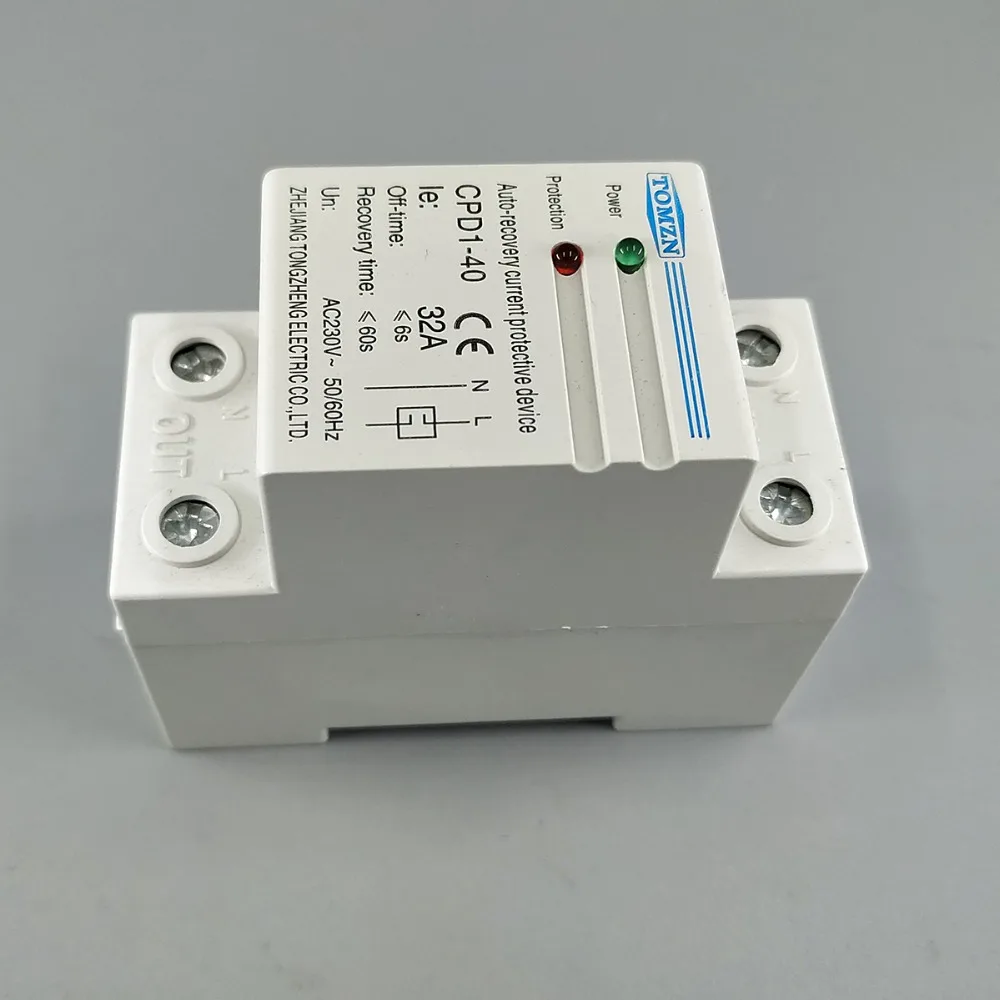

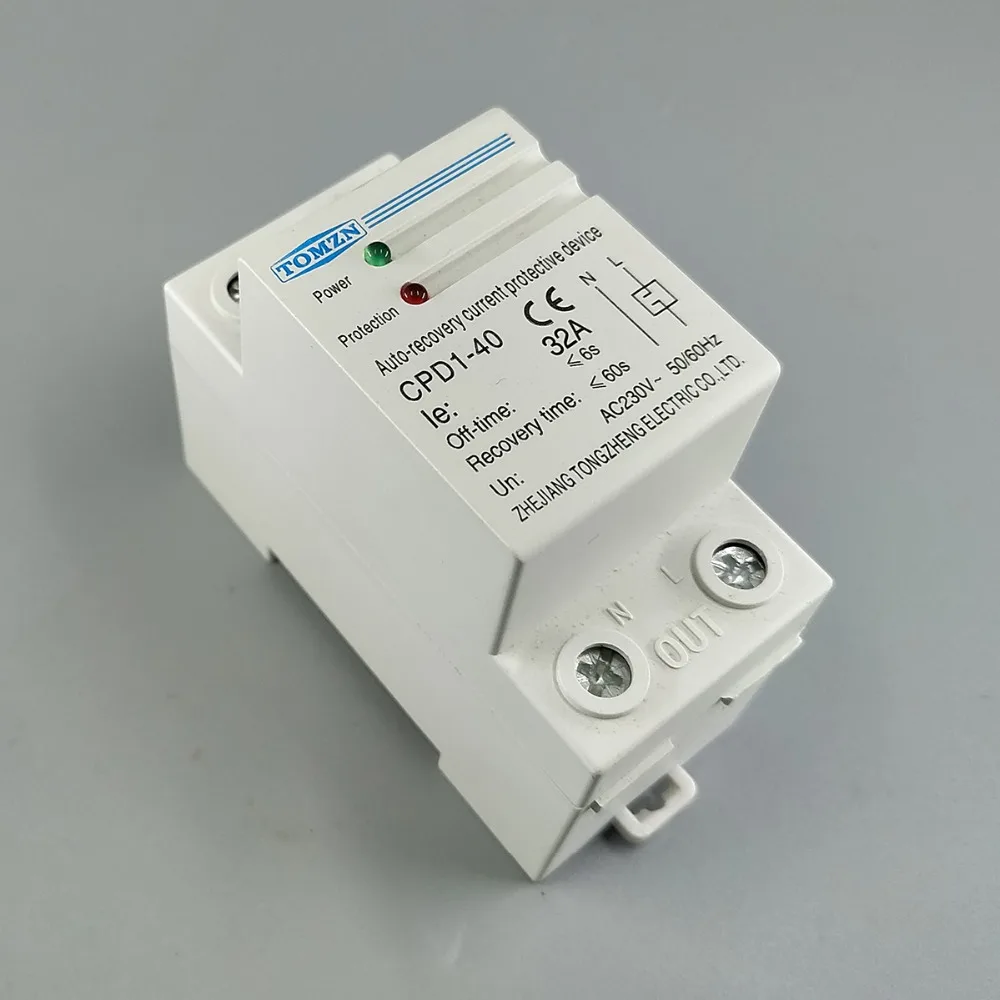

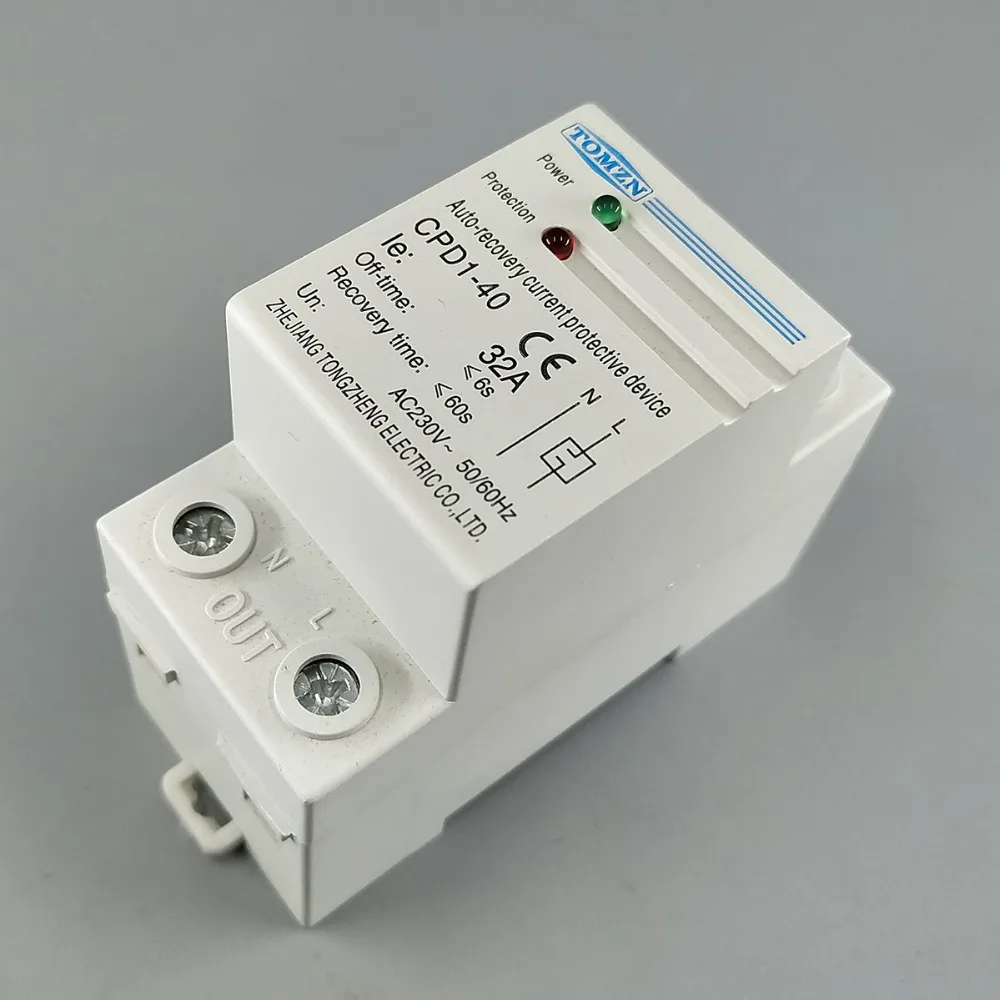

CPD1-40 applicable to the dormitory management, temporary construction management, corporate quarters, school dormitory management so on, where need to limit the electricity power of single load. The product work in rated power, the LED display green. If exceeds the rated current and power, CPD1-40 will automatically cut off in 1sec, The LED display red. When the load back to normal, CPD1-40 automatically reconnect in 60sec . The product can effectively control the chaotic temporary electricity, reduce fire and failures caused by overload, and ensure the Electrical safety. The product can reduce the labor intensity of The electrician and the cost of enterprises, is a good helper for electrical safety management.
The current protector CPD1-40 don’t have short current protection function.
2. The method of settle the overload.
A. When the current exceeds the ampere of CPD1-40, It will cut off the load in 1 sec. The LED display red.
B. The CPD1-40 will reconnect itself, if you Unplug the illegal load, the LED display green again.
Main Technical Speacification:
1. Rated AC voltage 230V??10% and frequency 50Hz/60Hz
2. Passing Max Current: 32A
3. If the power exceeds 7A/1610W, the device will cut off the load. LED display red.
4. If the power back in 6A/1380W, the device reconnect itself. LED display Green.
5. Overload cut-off:< 1s
6. Reconnect time after power back to normal: <60s
7. Self power consumption<2W
8. Electric machinery life=100000 times

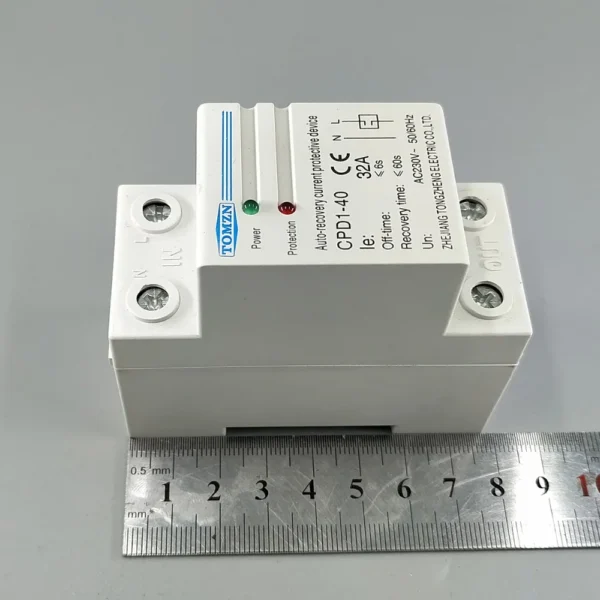

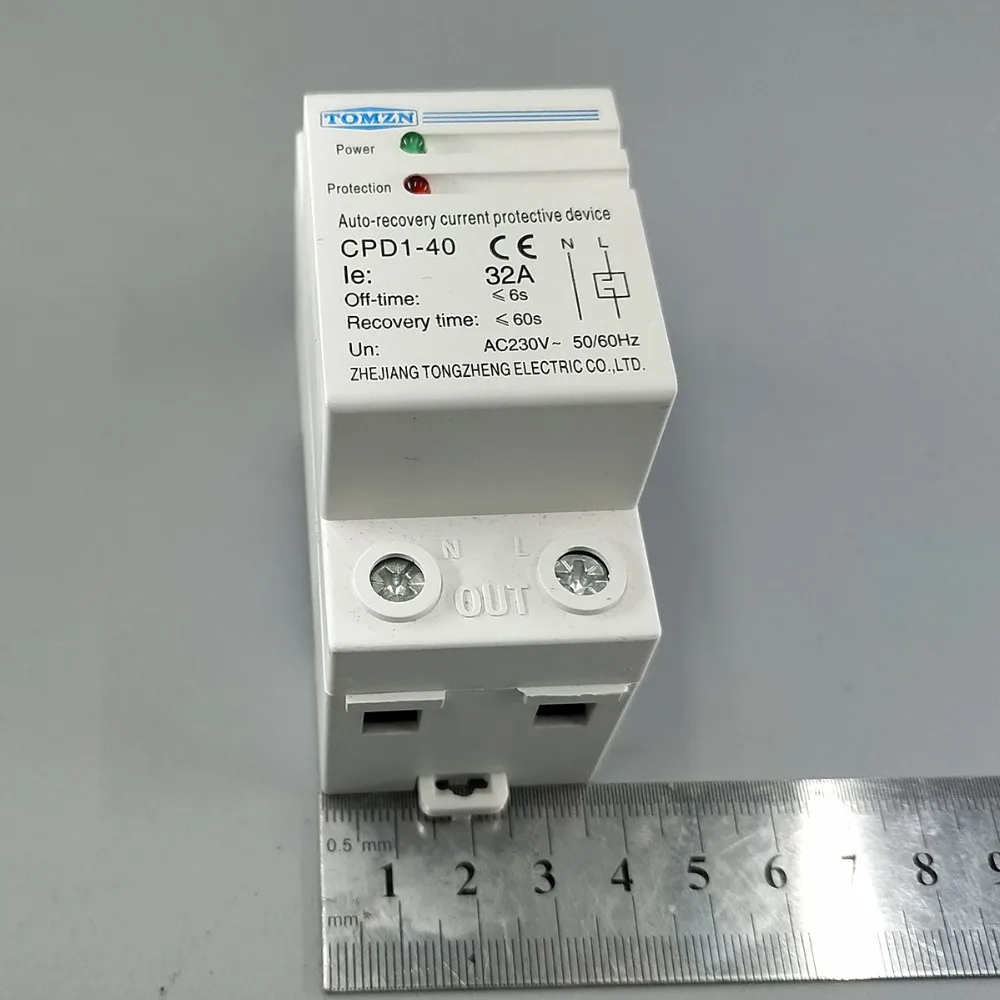

9. Dimension: 47L*80W*69Hmm
10. Installing: 35mm Din rail
