1PCS 1500V PV Fuse DC High Voltage for Solar System Protection 2A 3A 4A 6A 10A 15A 20A 25A 30A 32A 35A 40A 50A without holder

1PCS FUSE

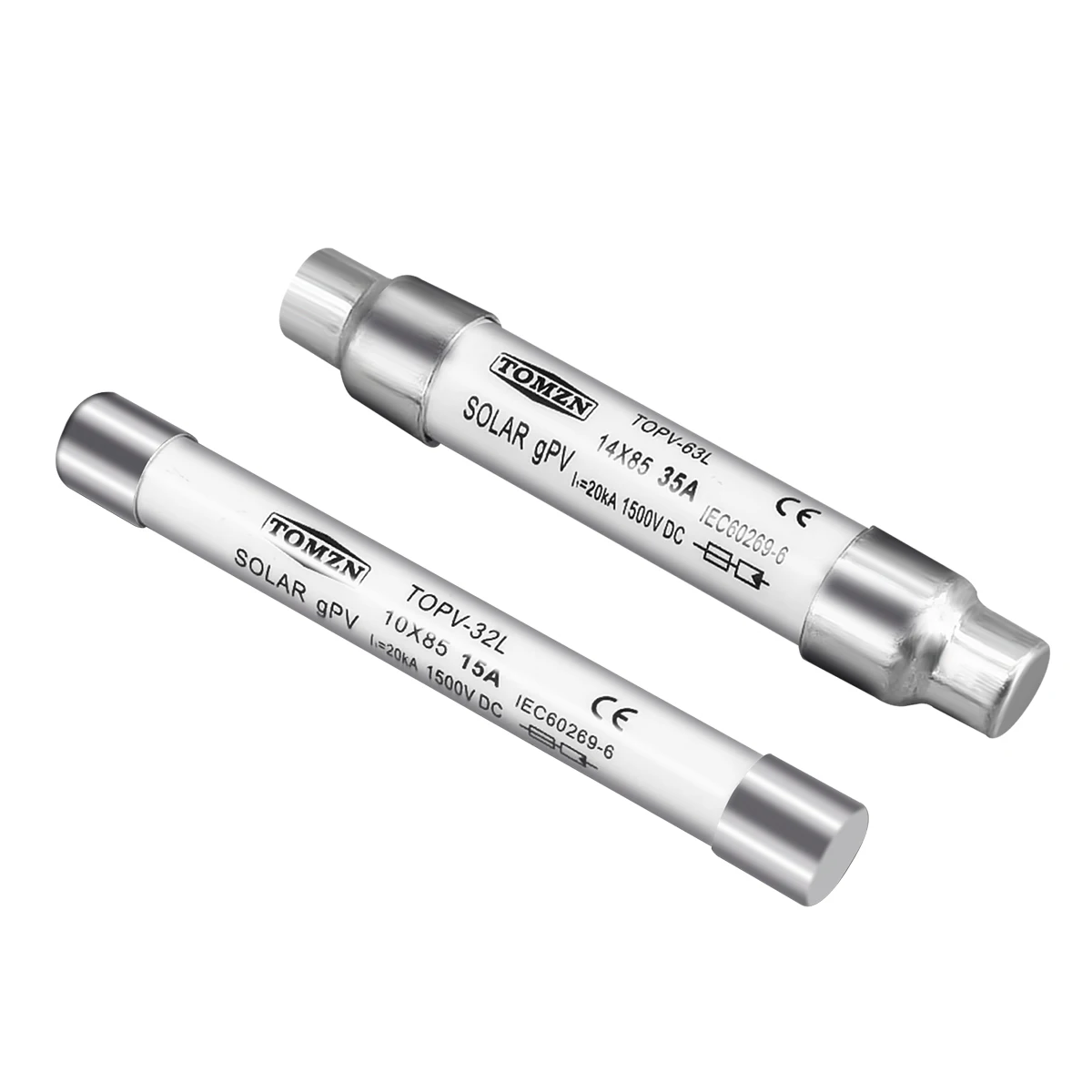

10*85MM(On the right side, the thinner style)??2A 3A 4A 6A 10A 15A 20A 25A 30A 32A

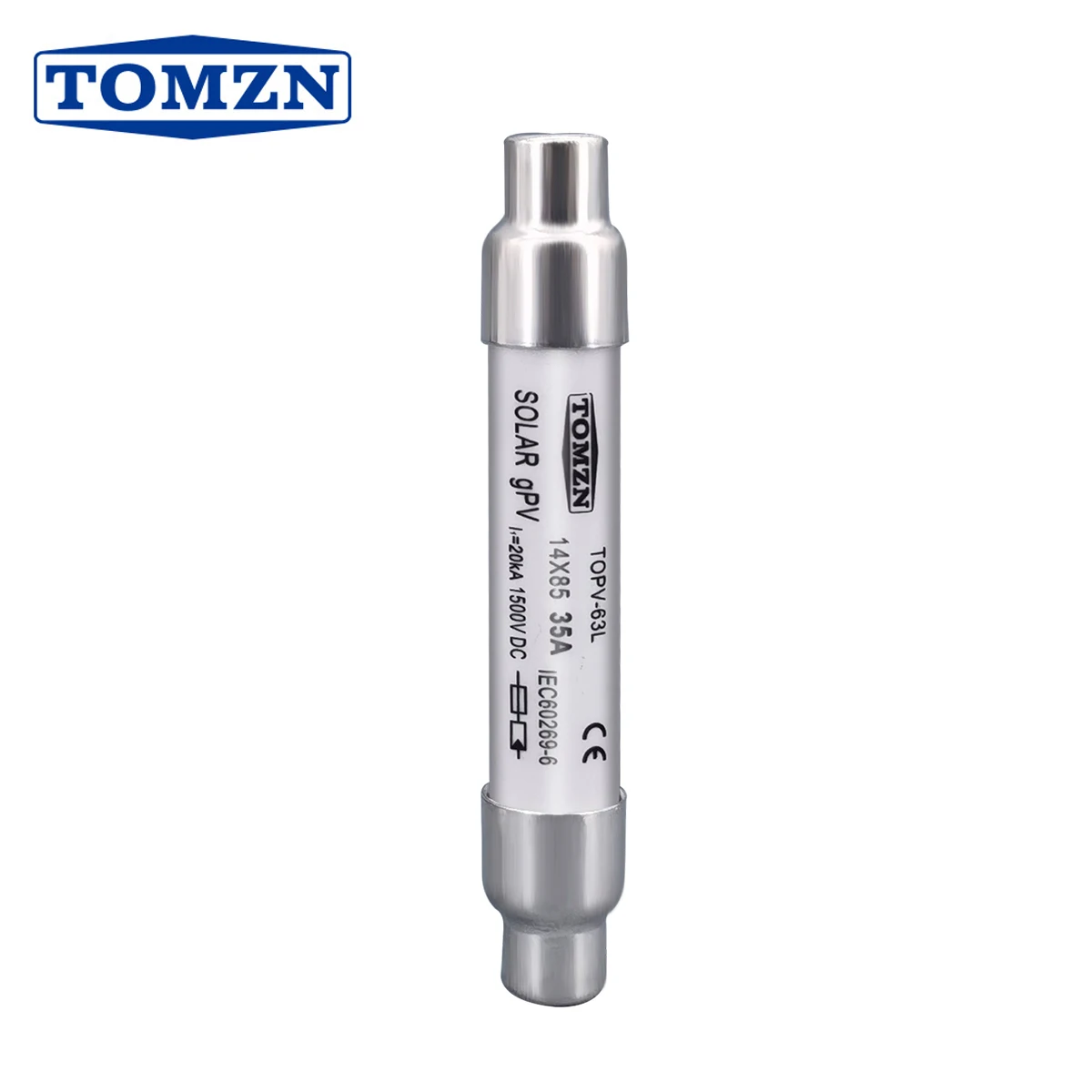

14*85MM(On the left side, the thicker style)??32A 35A 40A 50A

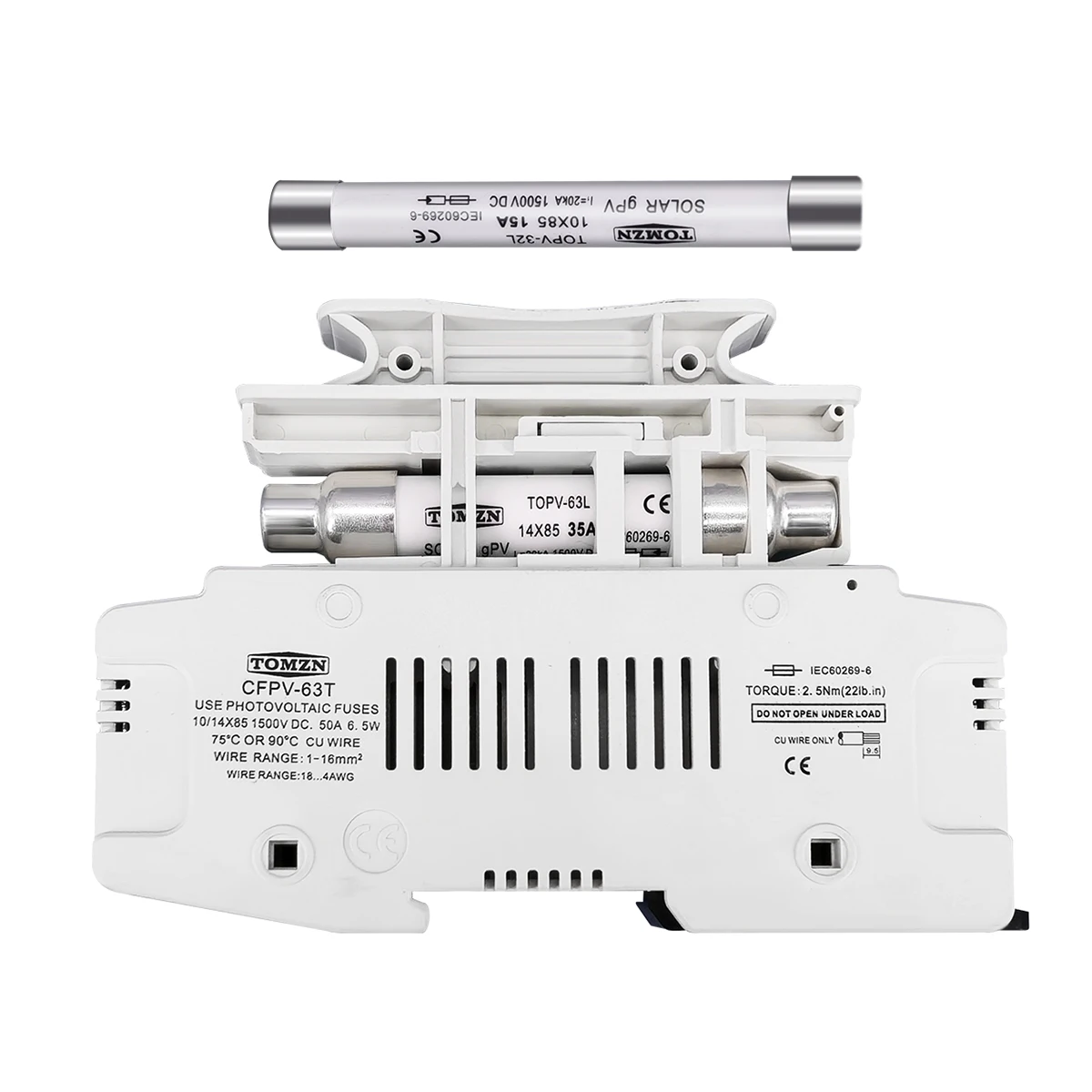

If you want fuse holder, you have to buy the fuse holder.

PV String Fuses for solar panels  – 1500VDC

A range of fuses specifically designer for protection and isolation of photovoltaic strings.
The DC fuses are capable of interrupting low overcurrents associated with faulted PV (reverse current, multi-array fault) string arrays.

Applications

Solar Panels, Solar Photovoltaic, DC Strings. ADVICE: Always use fuses on positive and negative terminal on any photovoltaic string rated up to 1500VDC

Electrical Characteristics
Rated voltage 1500VDC
Amps  2A??3A??4A??6A??10A??15A??20A??25A??30A??32A??35A??40A??50A
Rated braking capacity 20kA dc
Minimum interrupting rating 1.3x In
Time constant under 1ms

Standard
IEC 60269-6, EN 60947-3, DC-20B
