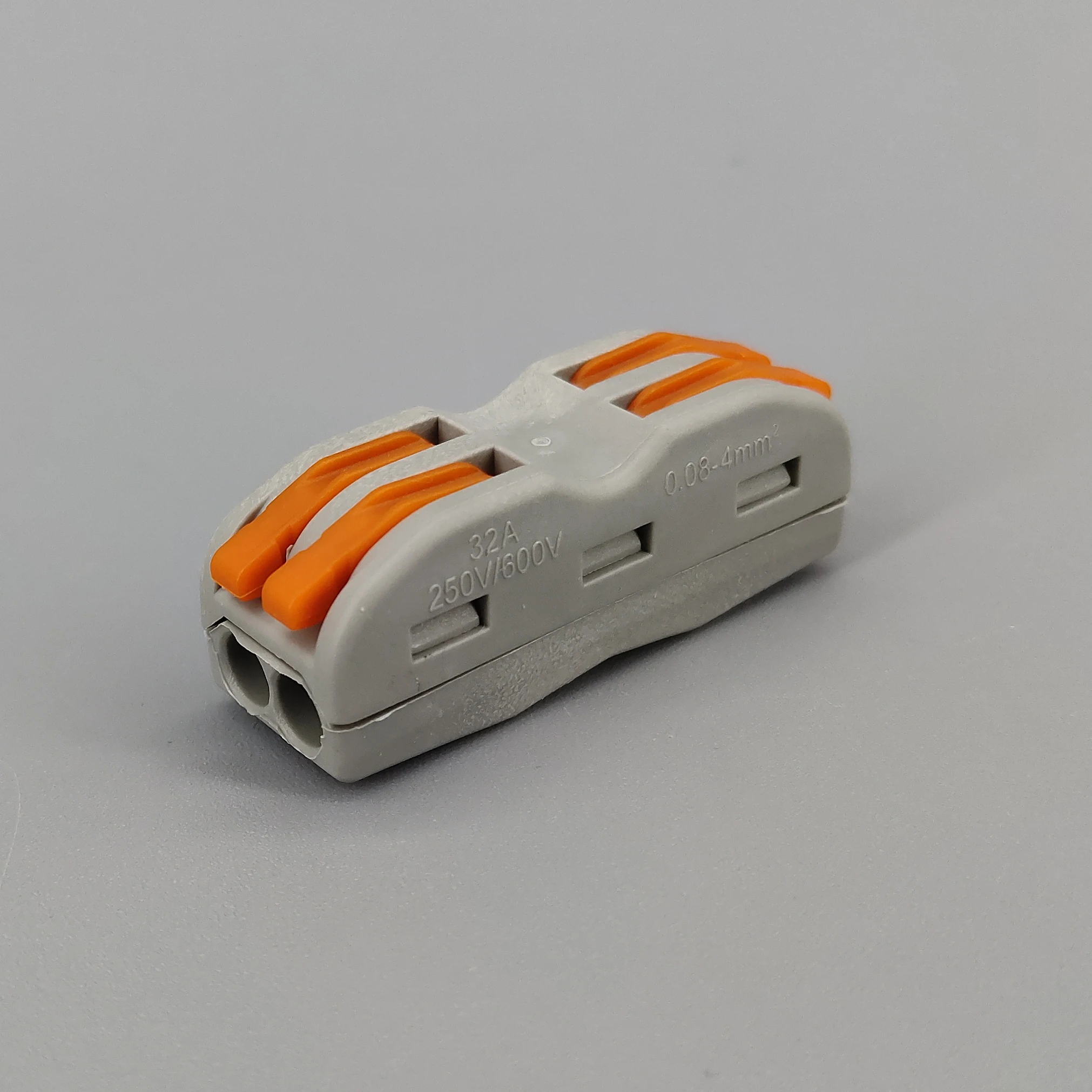

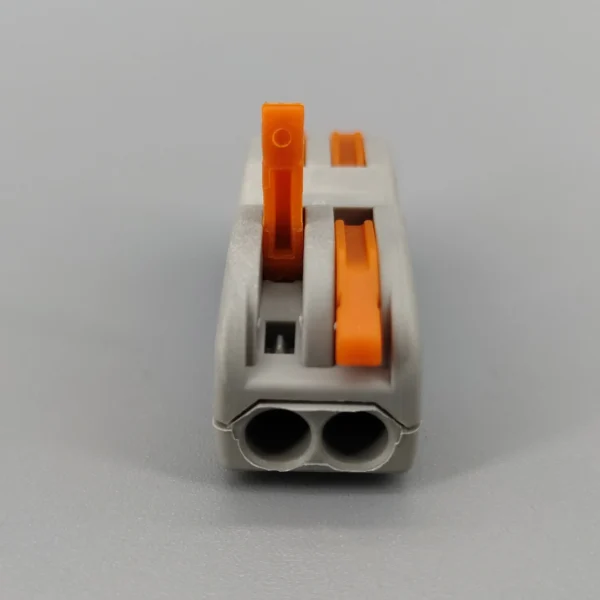

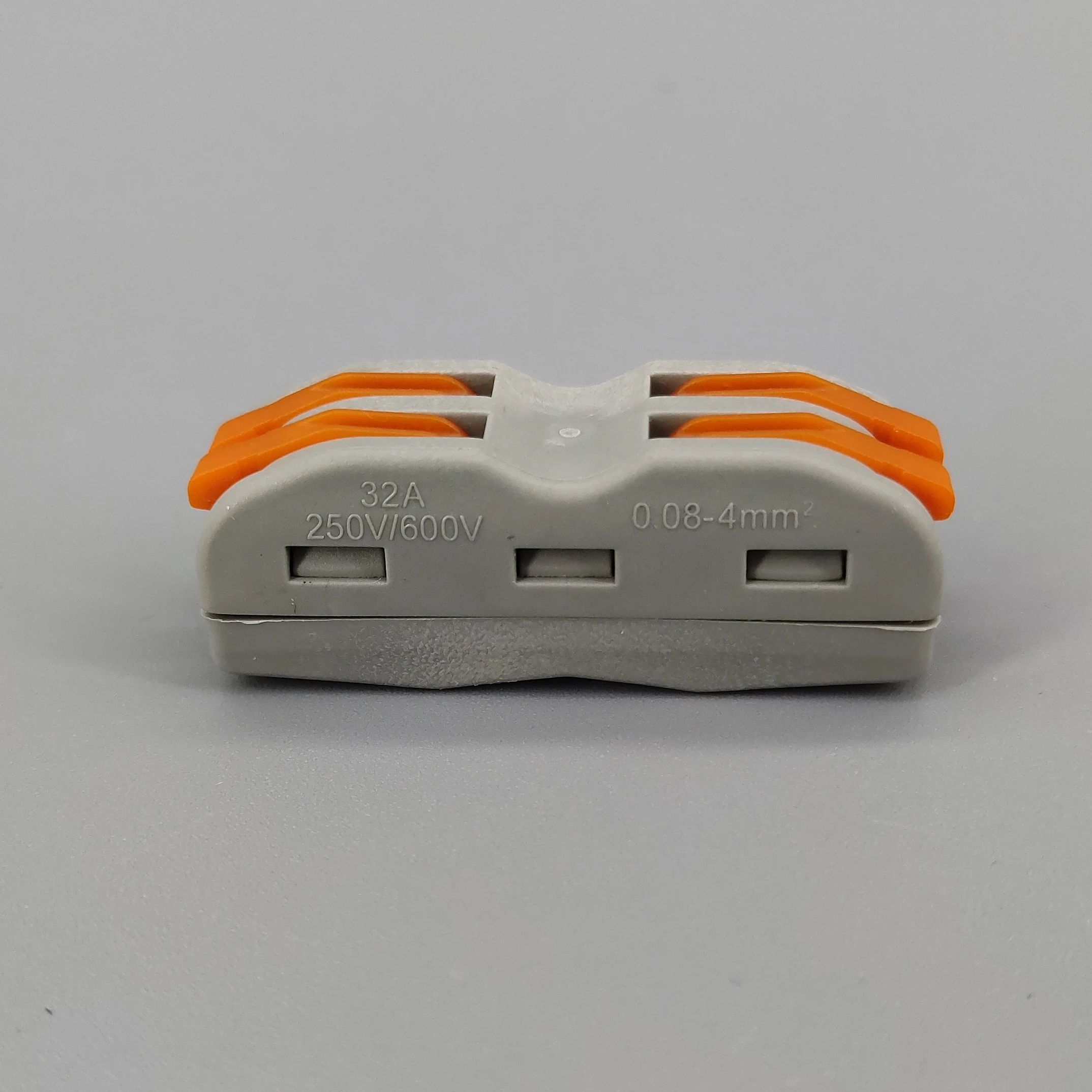

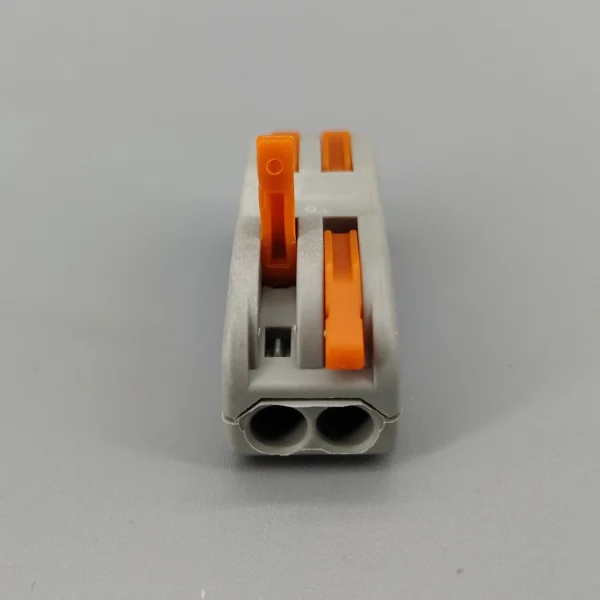

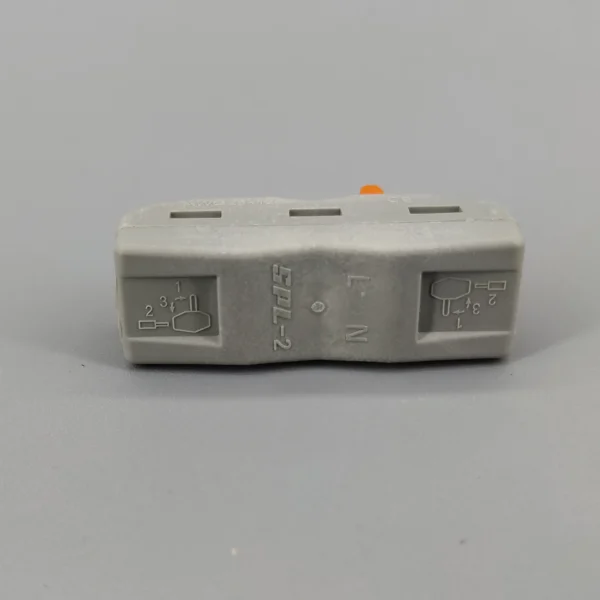

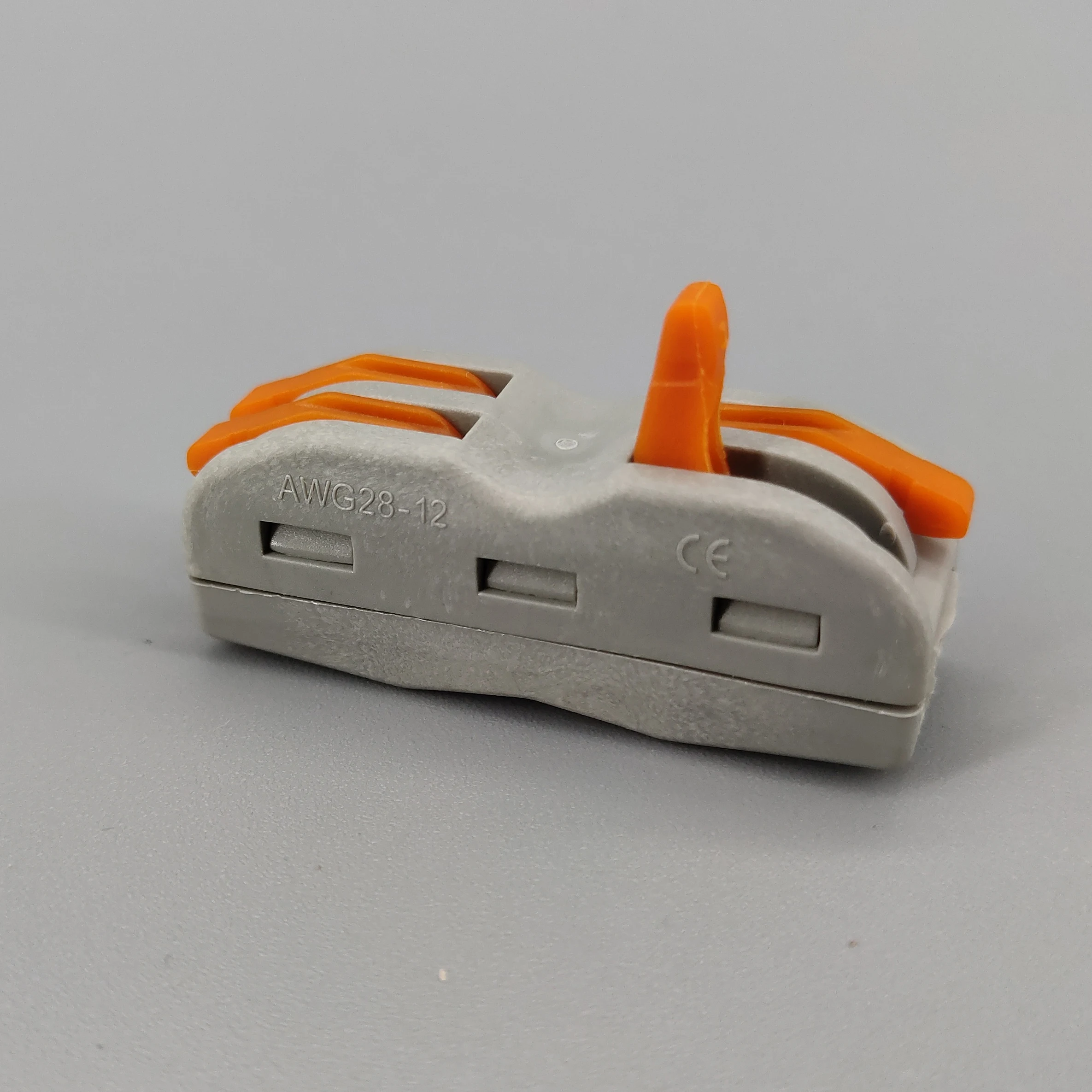

10pcs 2 Pin Universal compact wire wiring connector conductor terminal block with lever Splitter 32A

Product Name : Wire connector

· Model : SPL-2

· Rated Voltage : 400V

· Rated Impulse Voltage : 4KV

· Quantity : 10PCS

Description:

100% New, Never Used.

Product Name: 2  pole

Universal wire connector

Material of Insulation:modified nylon(PA66)

Contact material:phosphor copper

Wire Cross section:0.08~4.0mm2(single hard wire), 0.08~4.0mm2(multi soft wire)

Color:Grey+Orange

Rated Current:32A

Rated power: 7KW

Gauge:28~12AWG

Strip length: 9 – 10mm

Package:polybag

This is a connection of artifact, bid farewell to the traditional tape winding way, this product is to use safe, reliable, convenient and allows you to stay away from the electrical fire and wiring. The operation is very convenient, the first peel line length 9–11mm, pull rod terminals (Orange), dial to 90 degrees. The end of the thread into the hole, back rod (Orange), will connect the wire. The suture method is very simple, the operation is the reverse direction, the terminal can be used repeatedly.
