CT 75/5A 5/3.75VA 30I

CT 100/5A 5/3.75VA 30I

CT 150/5A 5/3.75VA 30I

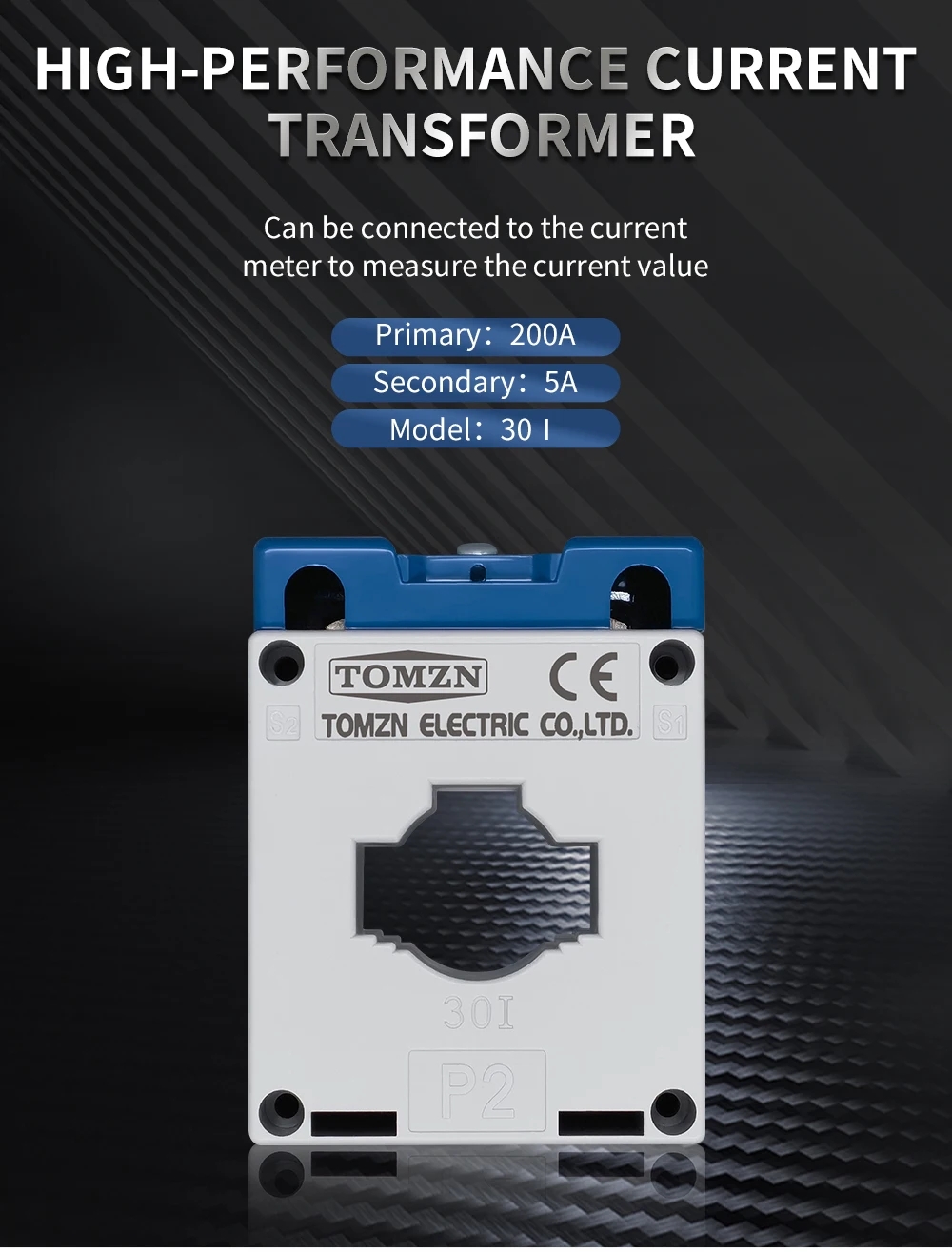

CT 200/5A 5/3.75VA 30I

CT 250/5A 5/3.75VA 30I

CT 300/5A 5/3.75VA 30I

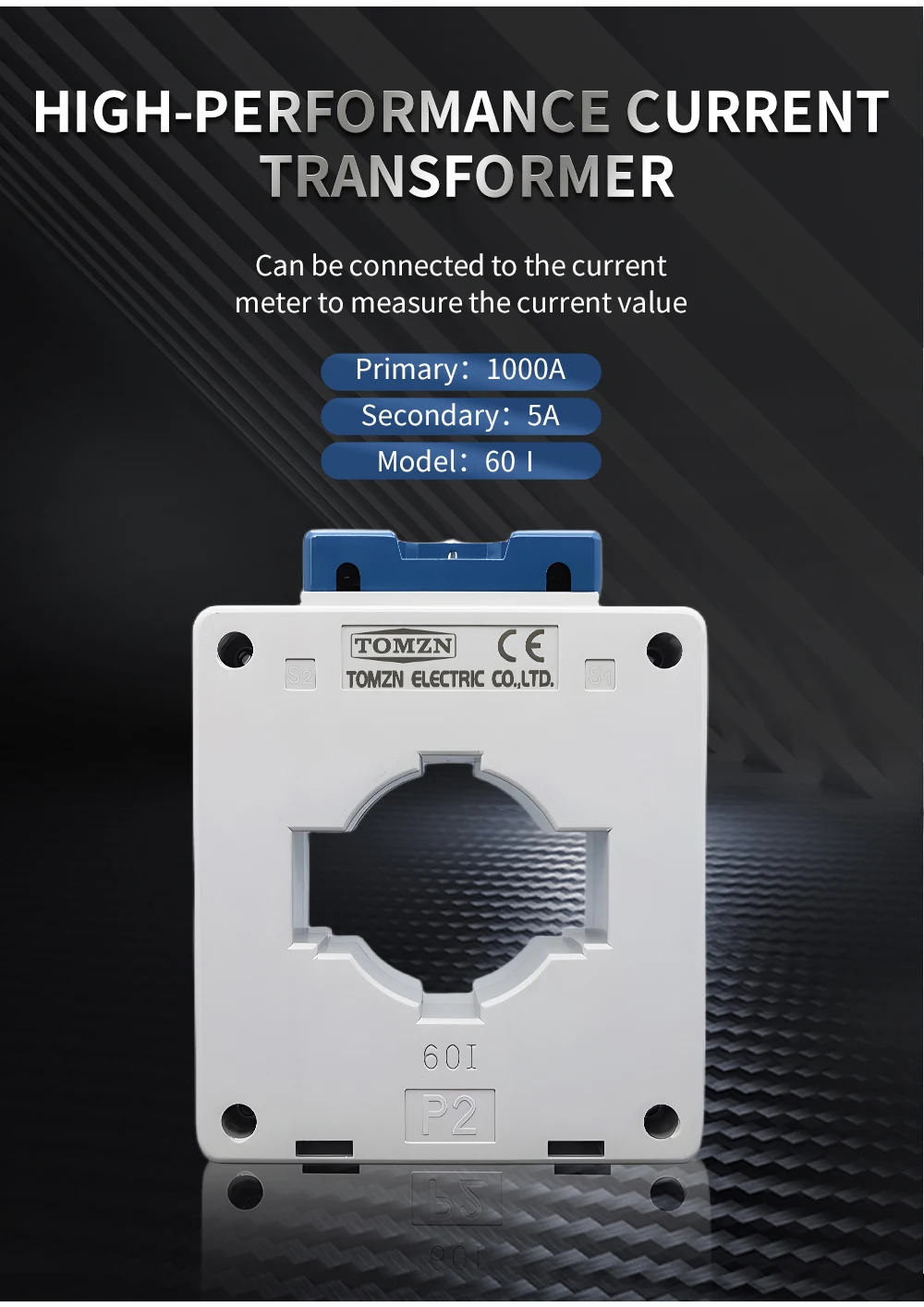

CT 1000/5A 10/3.75VA 60I

CT 1000/5A 10/3.75VA 60II

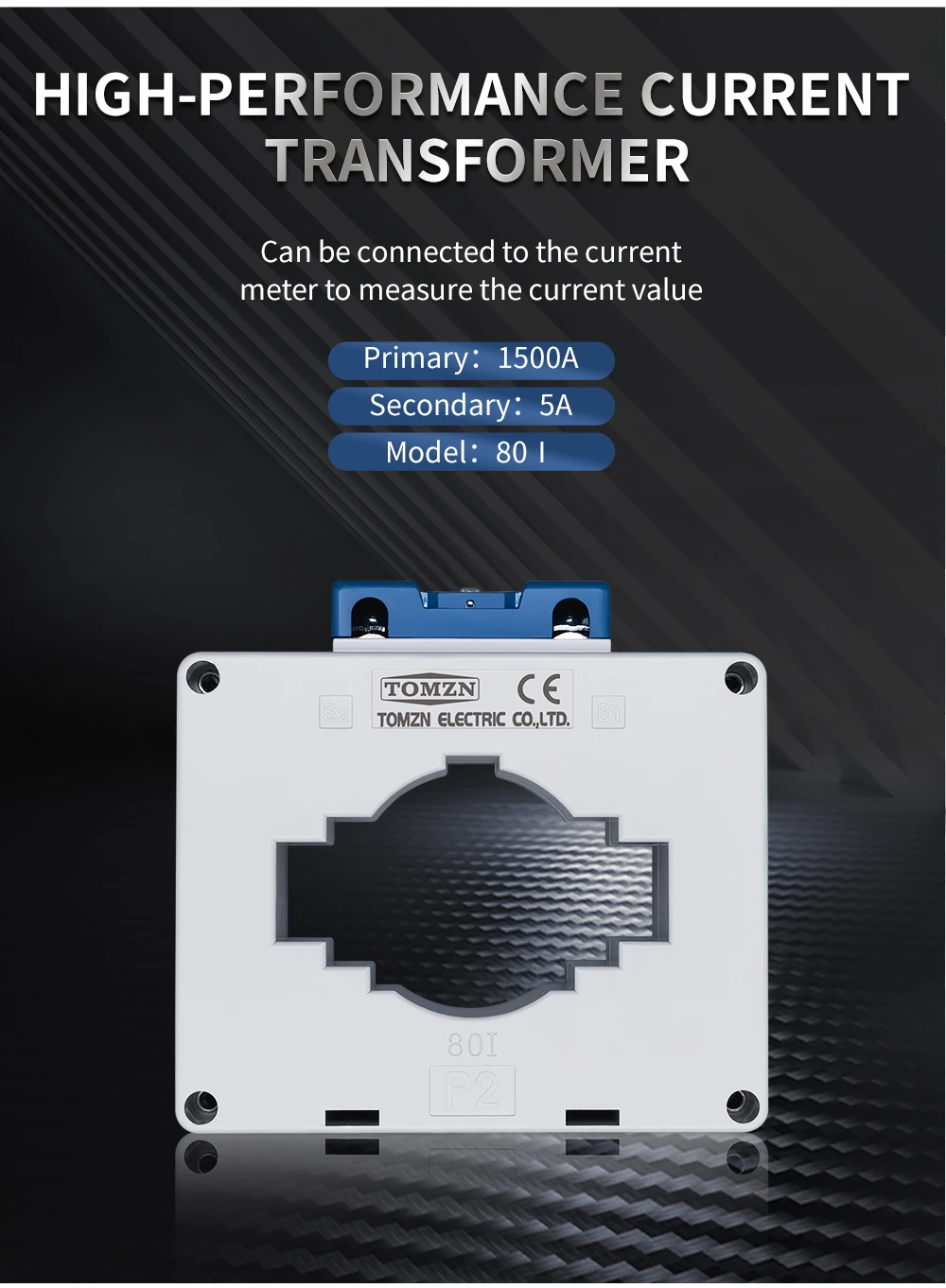

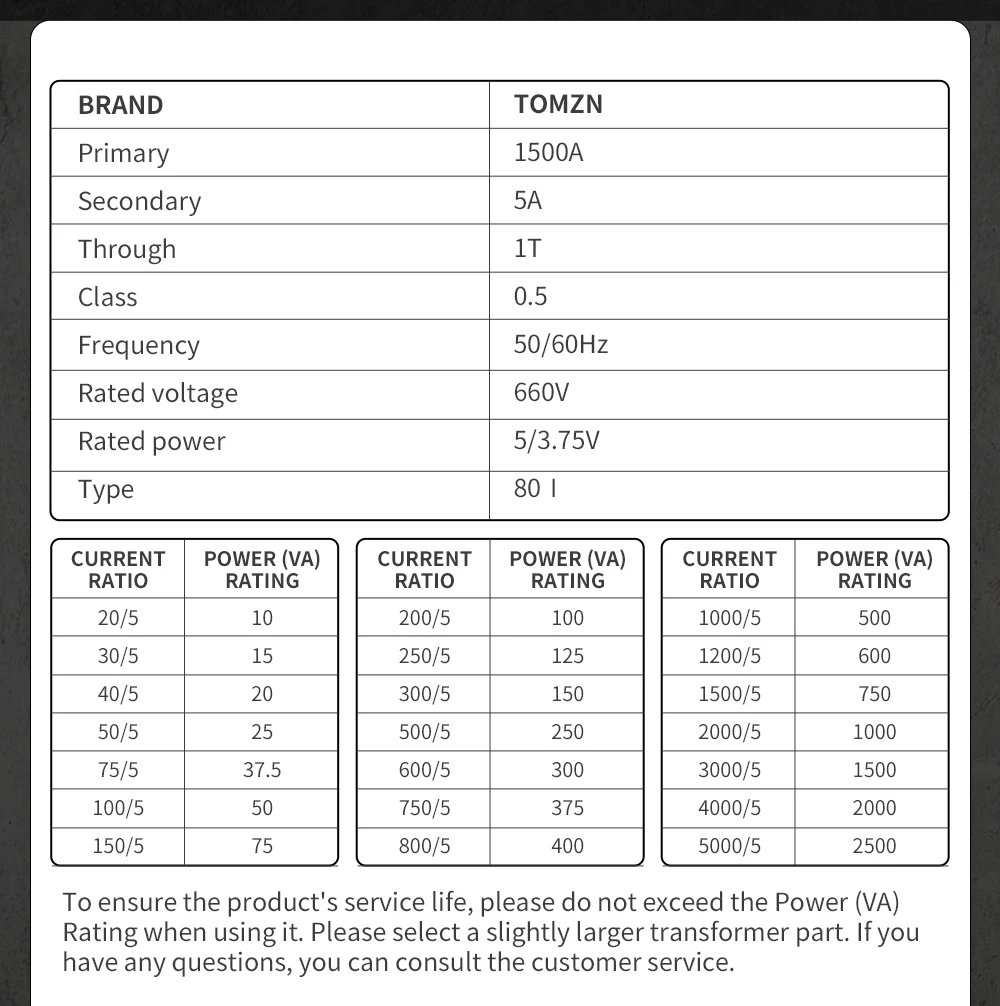

CT 1500/5A 10/3.75VA 80I

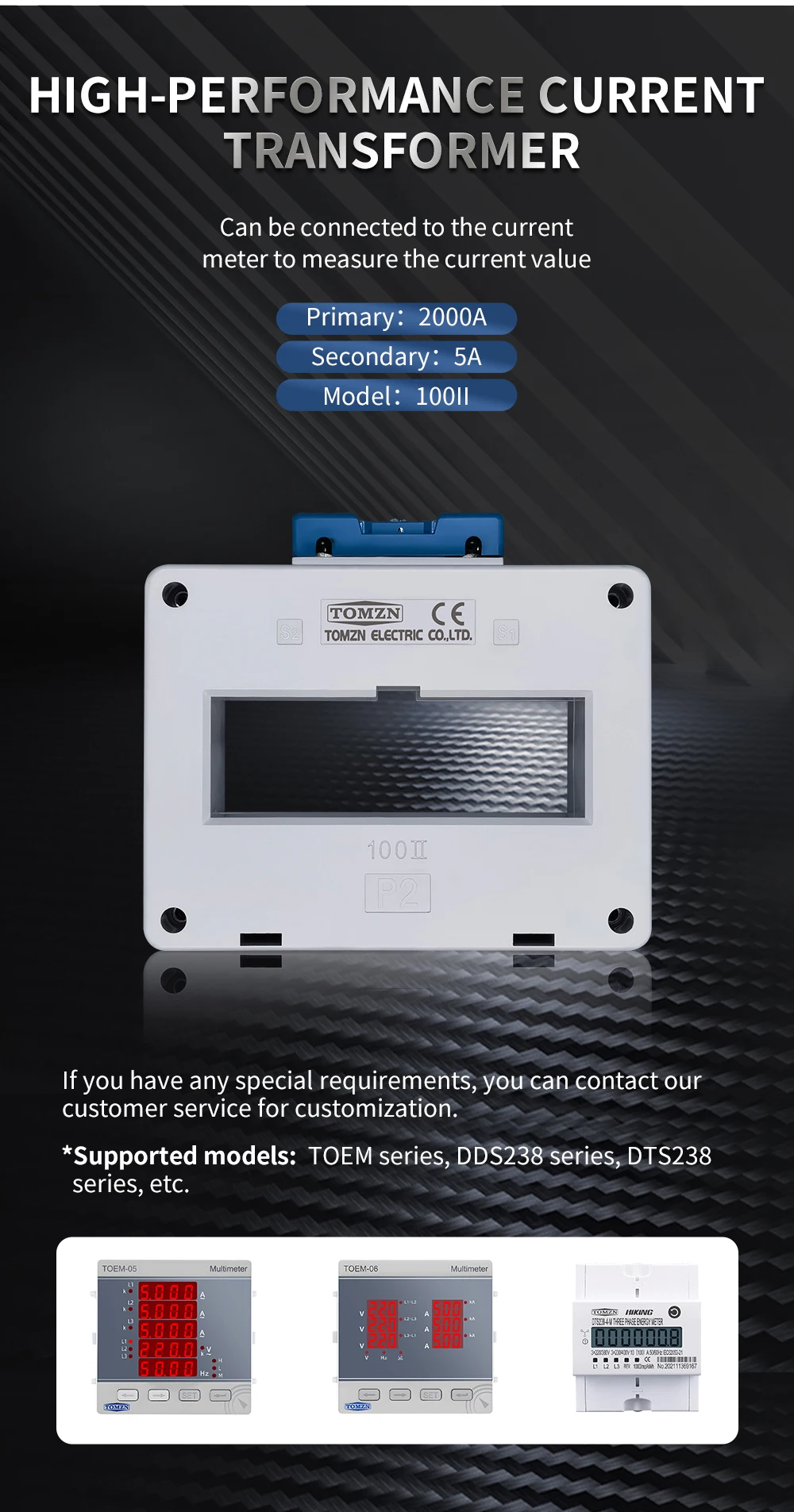

CT 2000/5A 10/3.75VA 100II

περιγραφές:

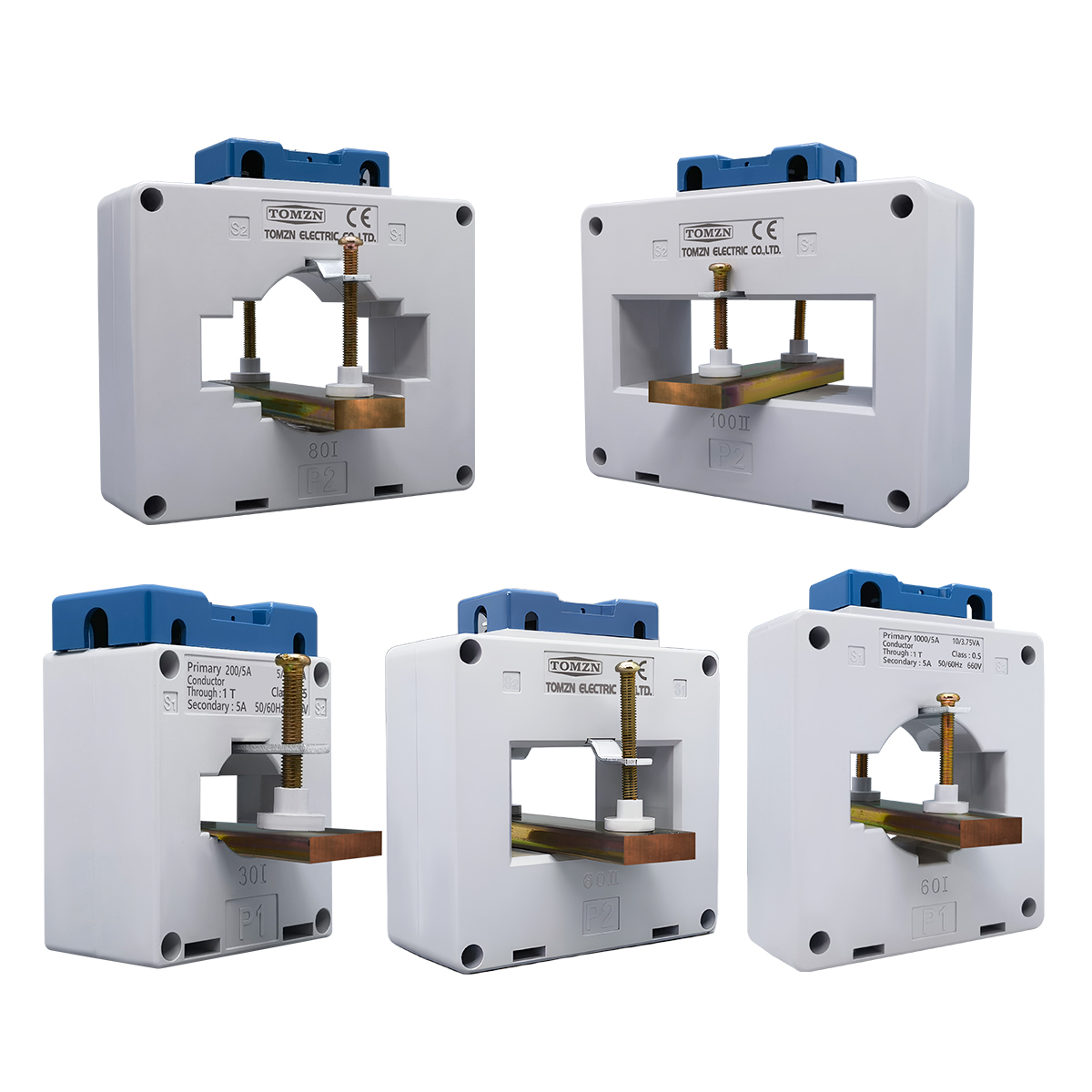

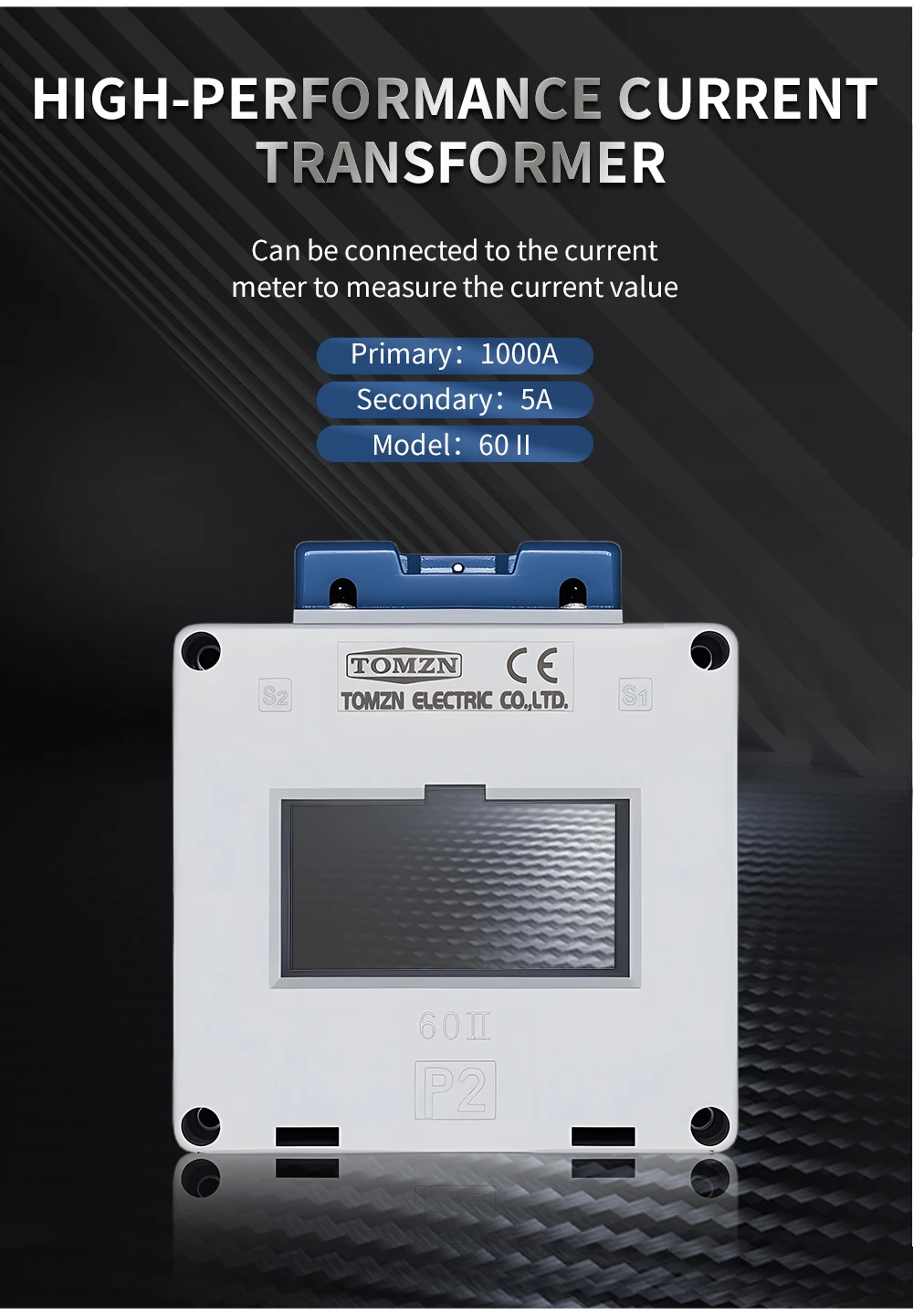

This series of high-performance current transformers (CT) is designed for precise monitoring, protection, and metering in electrical power systems. Compliant with international standards such as IEC 60044-1, they are ideally suited for installation in distribution cabinets, substations, and industrial power systems.

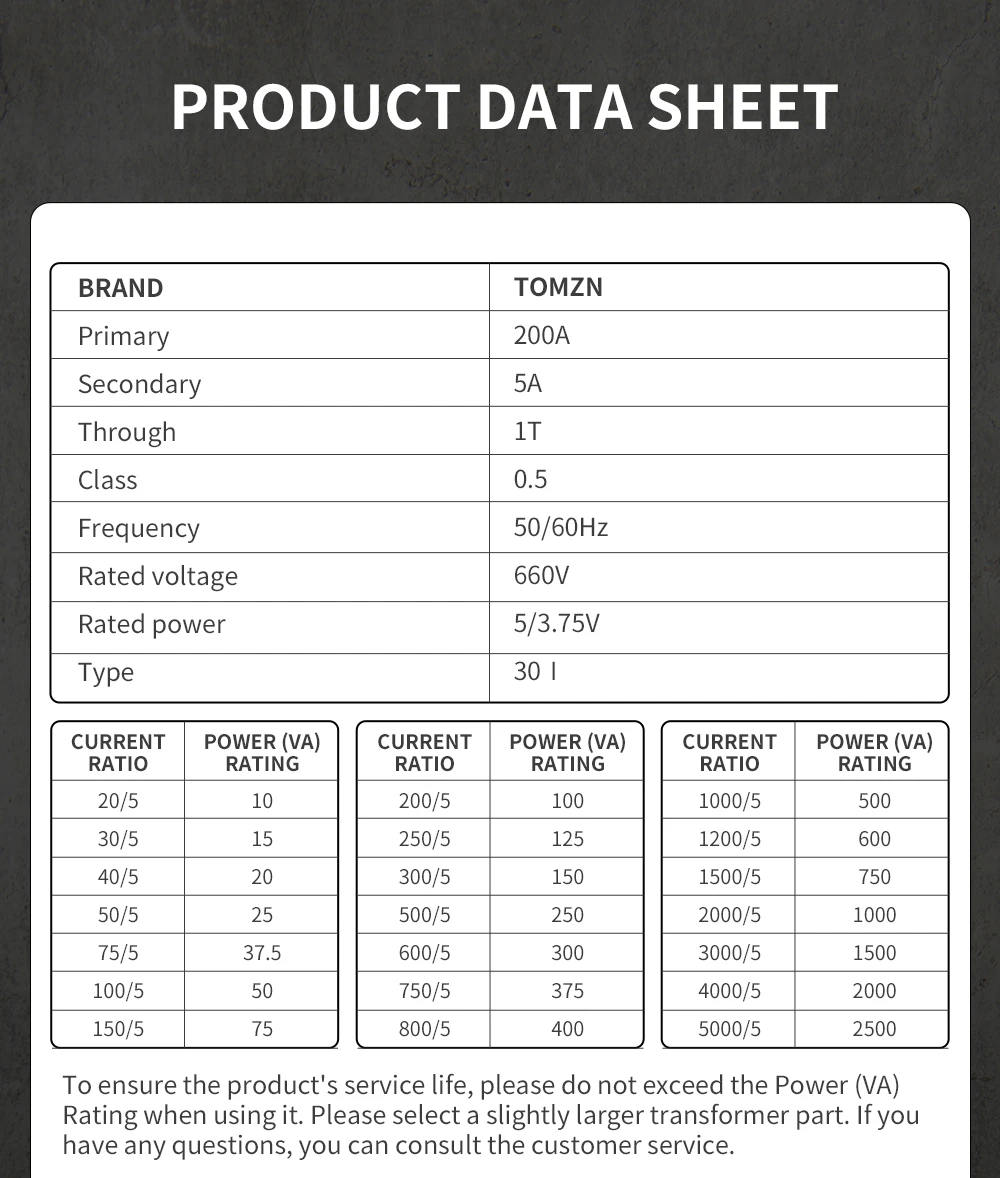

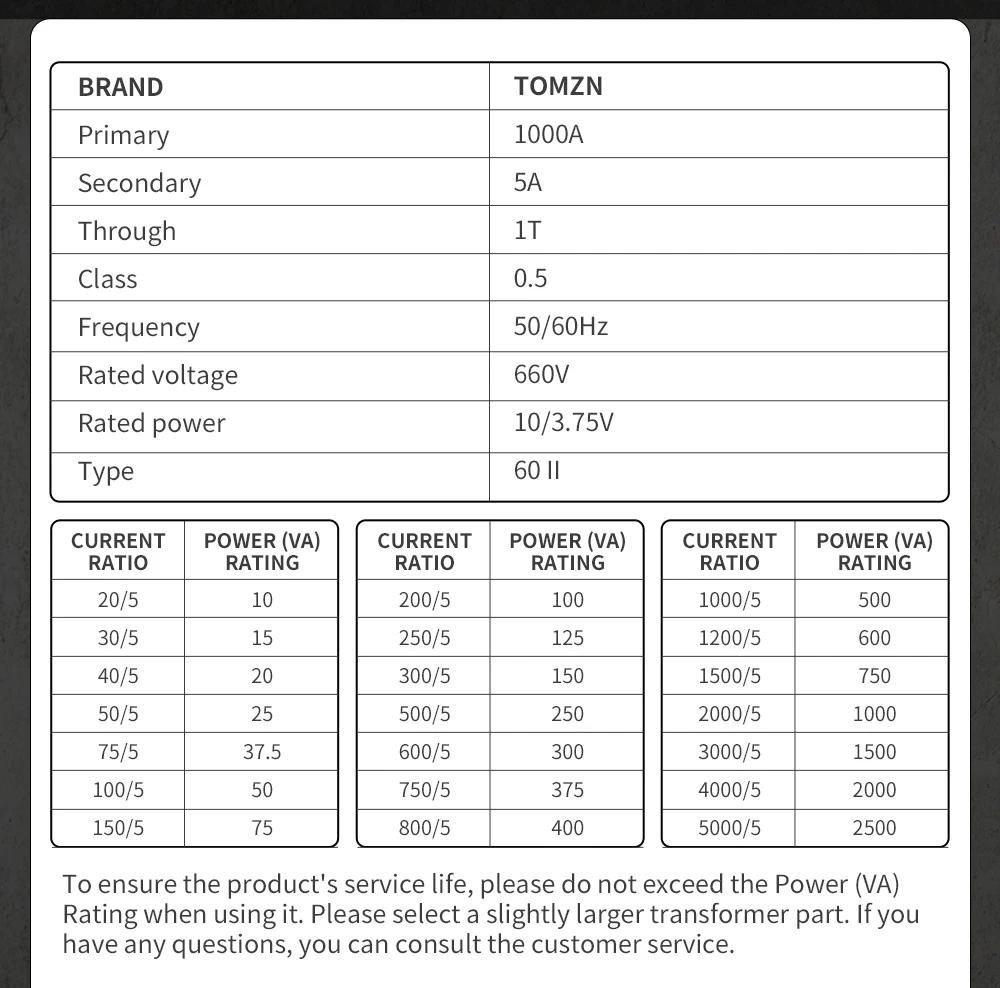

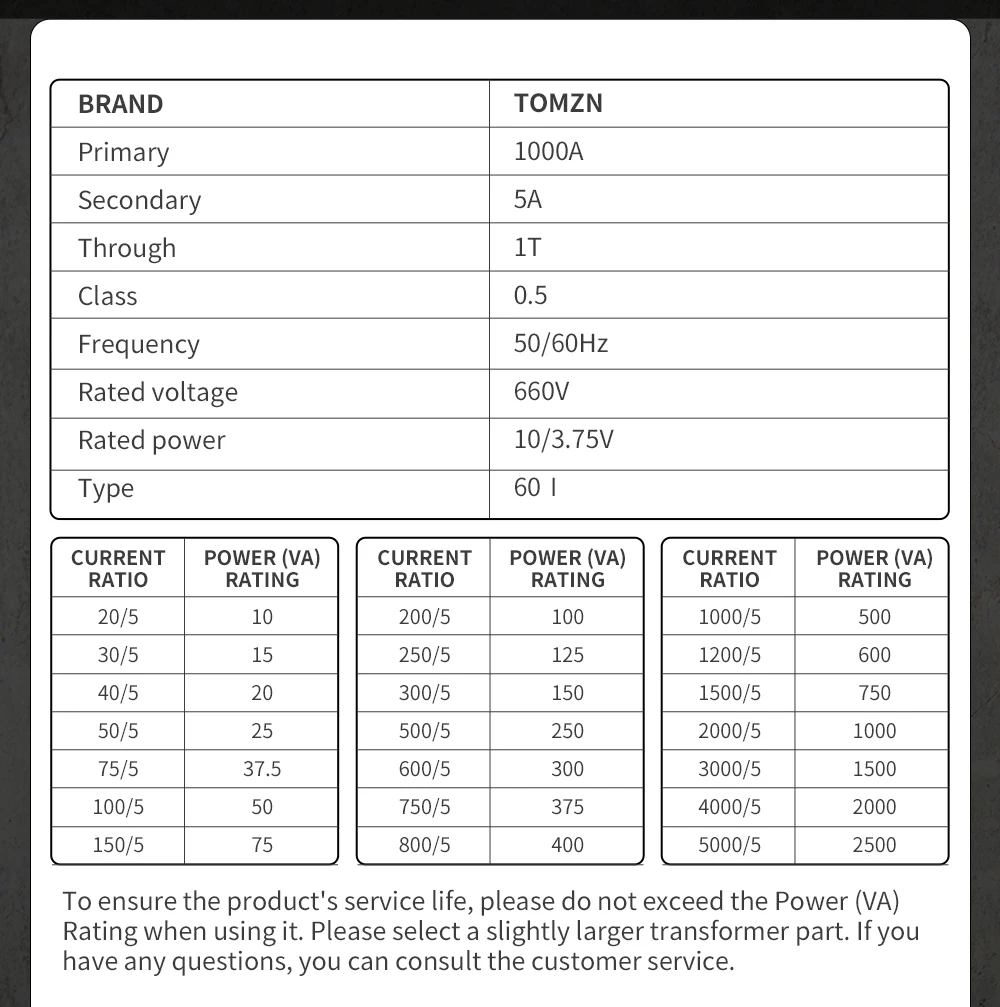

Προδιαγραφές:

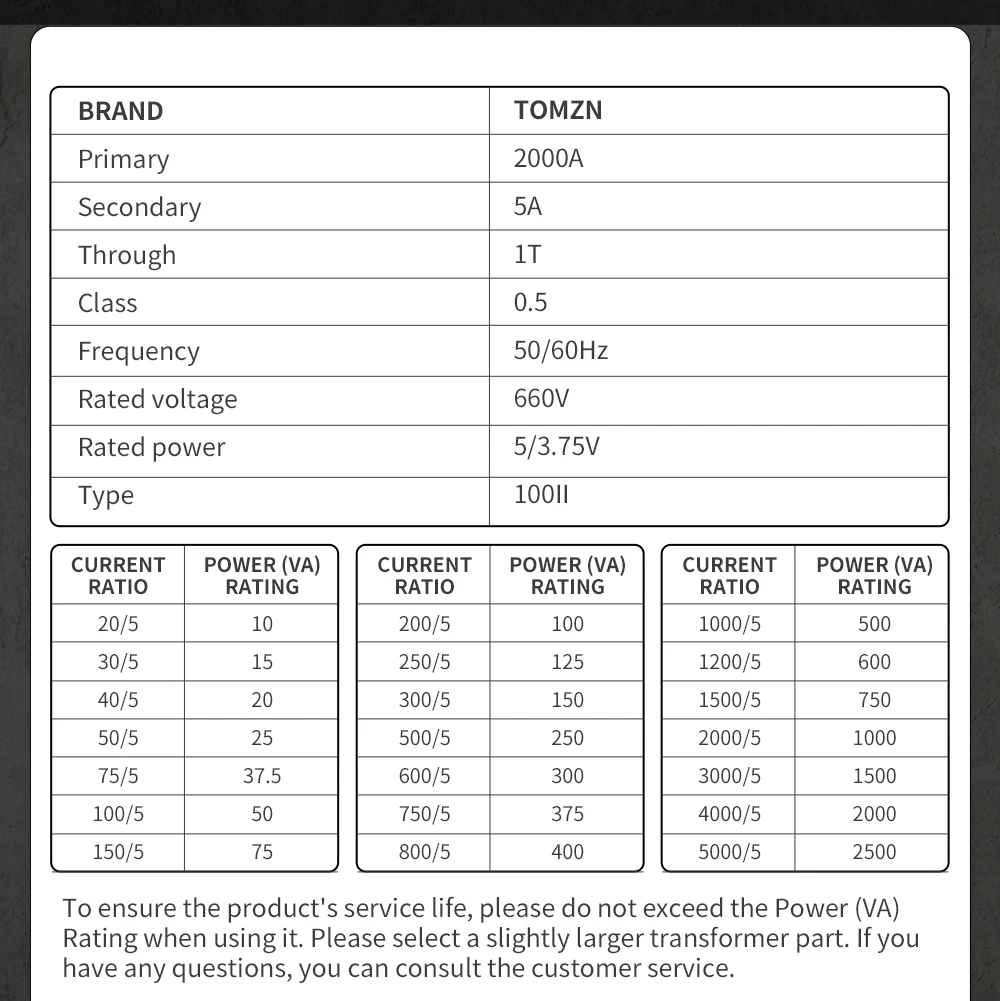

• Standard Ratios:15:1, 20:1, 30:1, 40:1, 50:1, 60:1, 200:1, 300:1, 400:1

• Rated Primary Current (Ipn):75A, 100A, 150A, 200A, 250A, 300A, 1000A, 1500A, 2000A

• Rated Secondary Current (Isn):5A

• Accuracy Class:0.5

• Rated Power Output:2.5VA, 3.75VA, 5VA, 10VA (Model-specific)

• Ονομαστική τάση: 660V

• Συχνότητα: 50/60 Hz

Σημείωση:

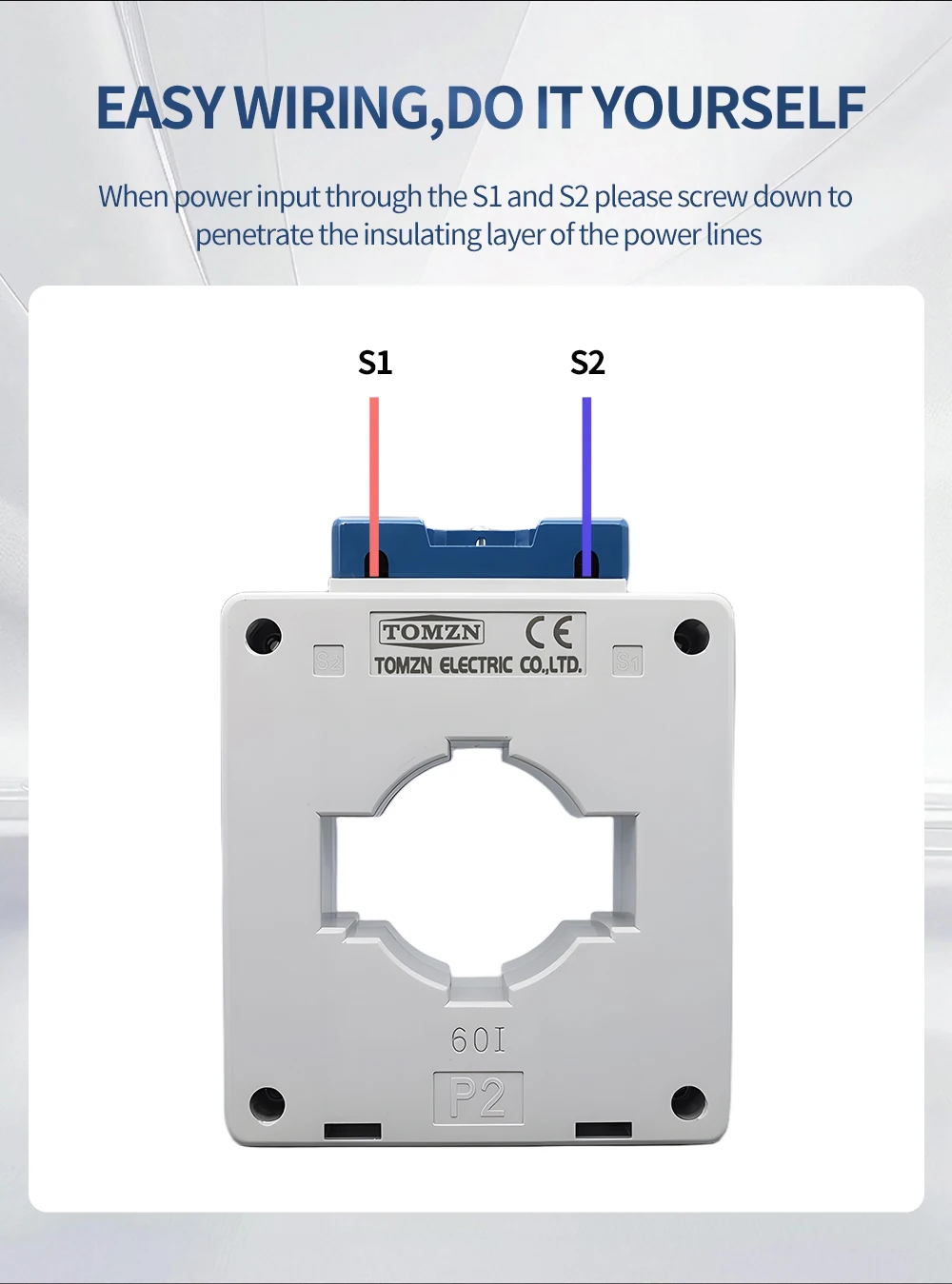

1. The CT primary should be connected in series with the test current loop, the secondary should be as work in the short-circuit state.
2. The secondary circuit is not allowed open circuit, so please do not install fuse.

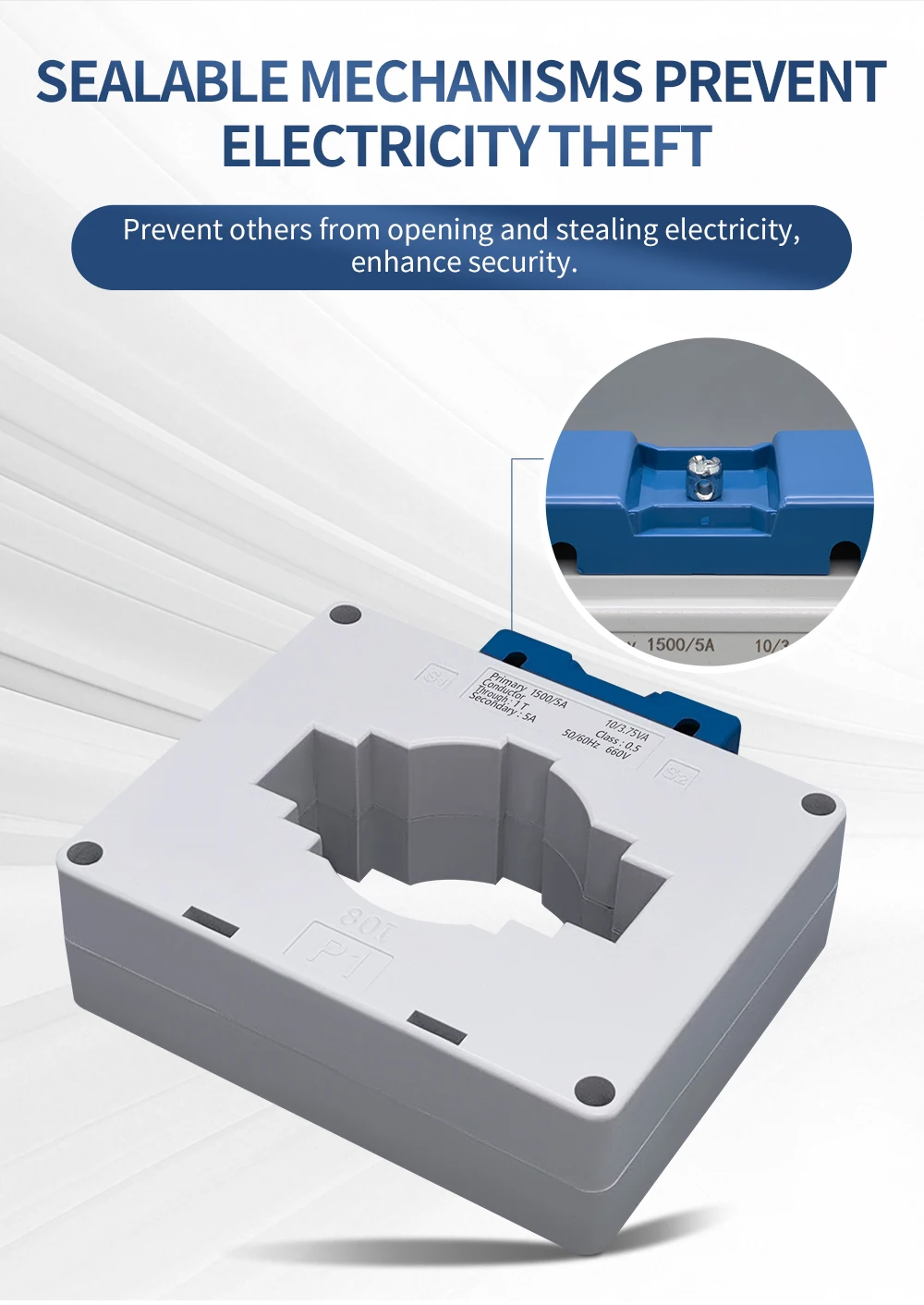

3.The equipment can be sealed to prevent electricity theft.
