Description

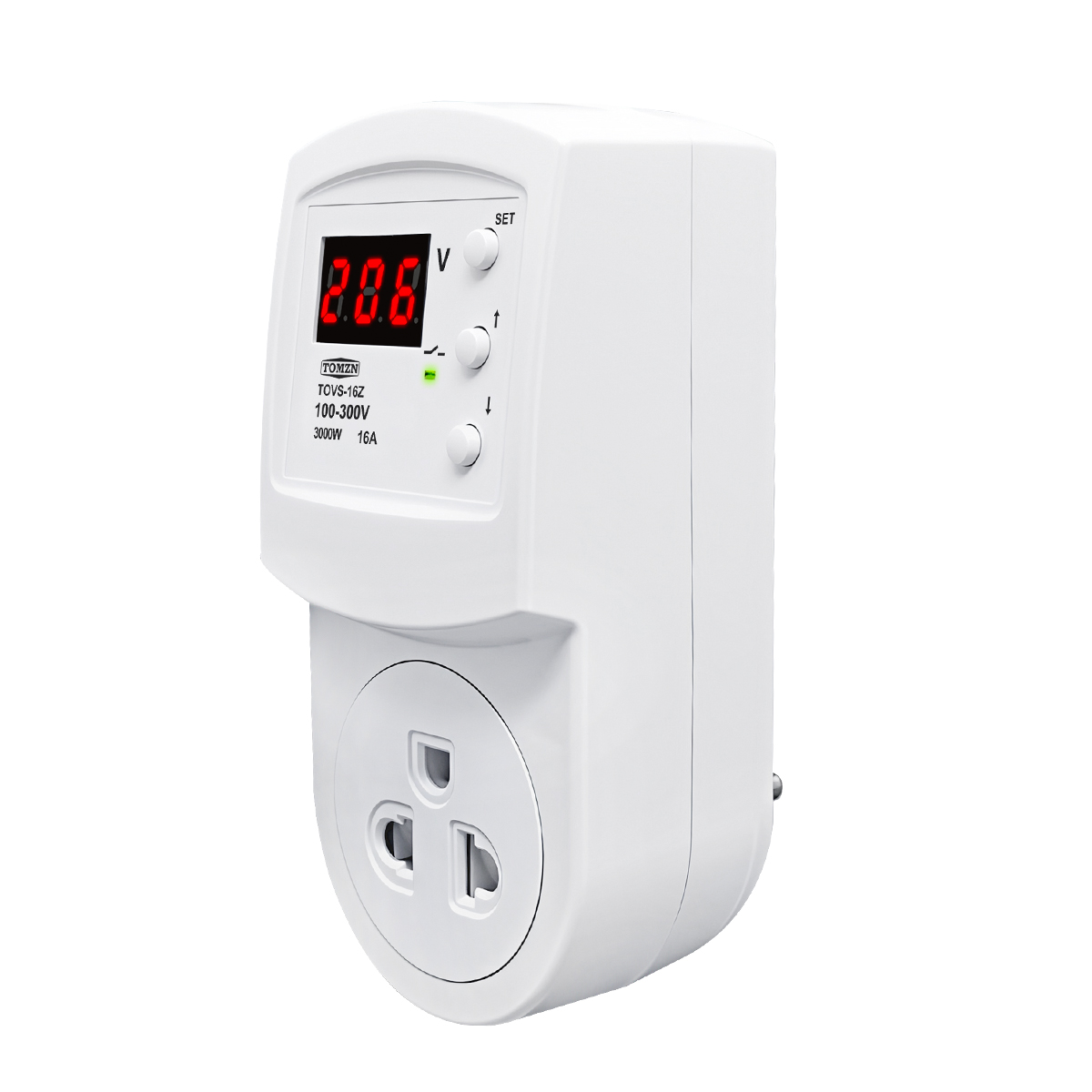

TOVS-16Z AC100-300V16A Type O For Thailand

Voltage measurement + Over and undervoltage protection

General

TOMZN TOVS-16Z is a compact voltage protector designed for the Thai electrical market (100-300V AC, 16A). It provides real-time voltage measurement, overvoltage protection, and undervoltage protection for connected household appliances. When voltage exceeds or falls below the preset safe range, the device automatically cuts off power; once voltage returns to normal, it restores power after a user‑adjustable delay. The voltage calibration function (±9.5% adjustable) ensures accurate readings. Simple, reliable, and economical – ideal for protecting home electronics in Thailand.

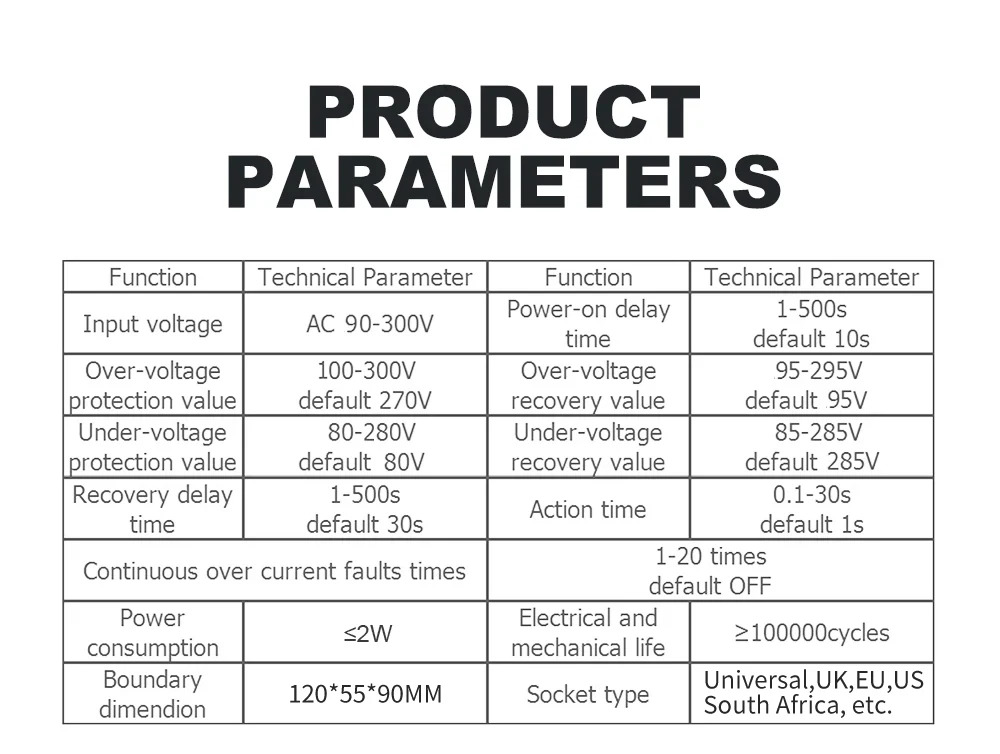

Product Parameters

Product Model: TOVS-16Z
Target Market: Thailand
Power Supply: 100-300V AC
Max Load Current: 16A
Voltage Display: Yes (real-time voltage measurement)
Voltage Calibration: Adjustable ±9.5%

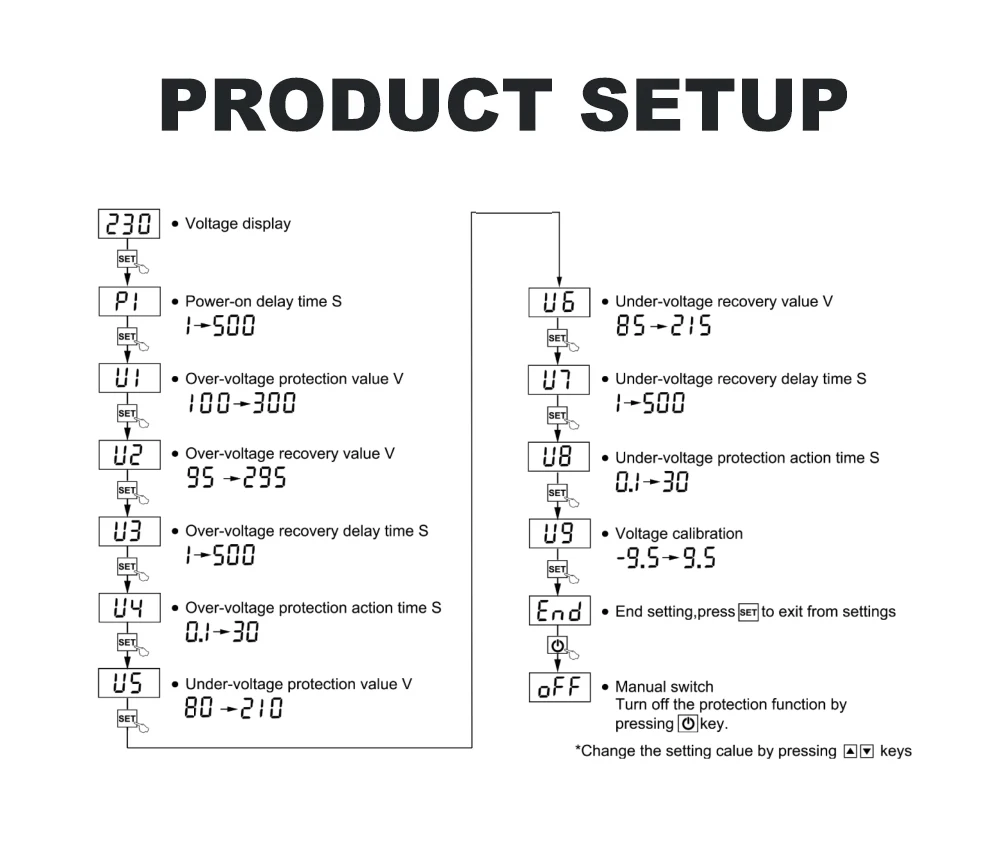

Over-Voltage Protection Value Range: 100-300V (default: 270V)
Over-Voltage Recovery Range: 95-295V (default: 265V)
Over-Voltage Action Time: 0.1-30s (default: 1s)
Over-Voltage Recovery Delay: 1-500s (default: 30s)
Under-Voltage Protection Value Range: 80-280V (default: 80V)
Under-Voltage Recovery Range: 85-285V (default: 285V)
Under-Voltage Action Time: 0.1-30s (default: 1s)
Under-Voltage Recovery Delay: 1-500s (default: 30s)
Power-On Delay Time: 1-500s (default: 10s)
Power Consumption: <2W
Mechanical Life: 100,000 cycles
Functions: Over-voltage protection, under-voltage protection, automatic recovery, voltage display, voltage calibration
