TOMZN Lever Wire Connectors 3 In 3 Out 6 Out 9 Out Quick Splice Terminal Block Push-in Tool-Free Reusable Electrical Connector

FOR 28-14(12) A.W.G. / 0.08-2.5(4) mm²

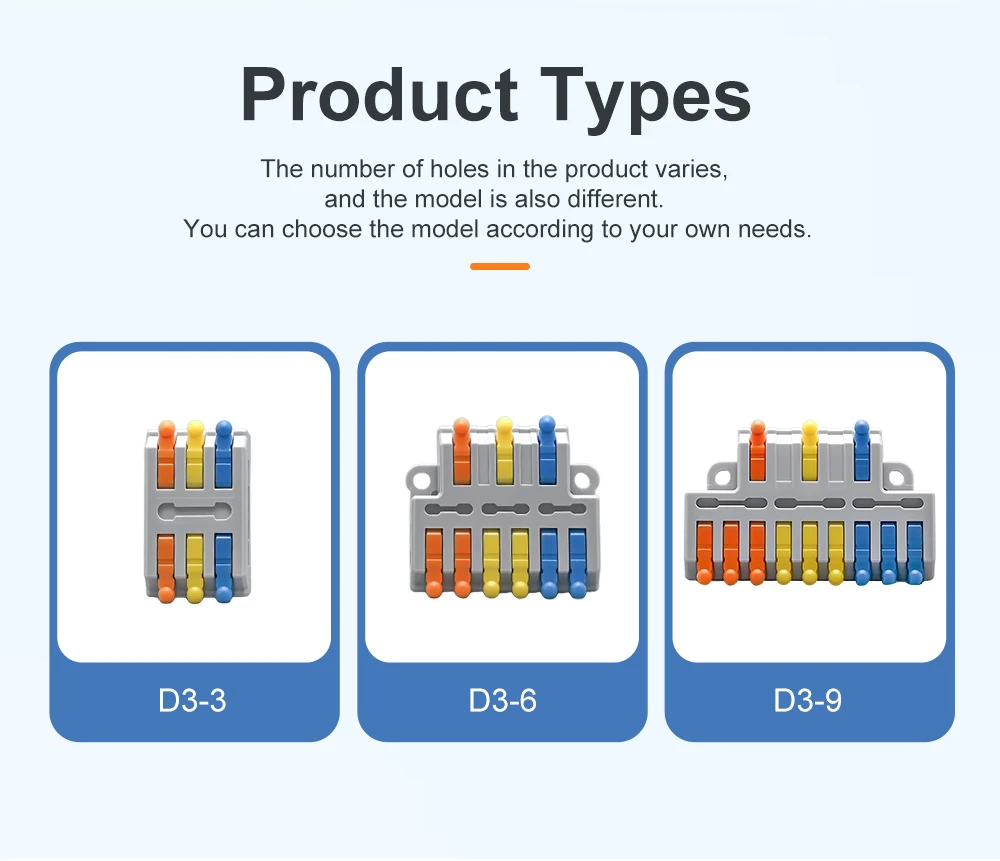

Three types：

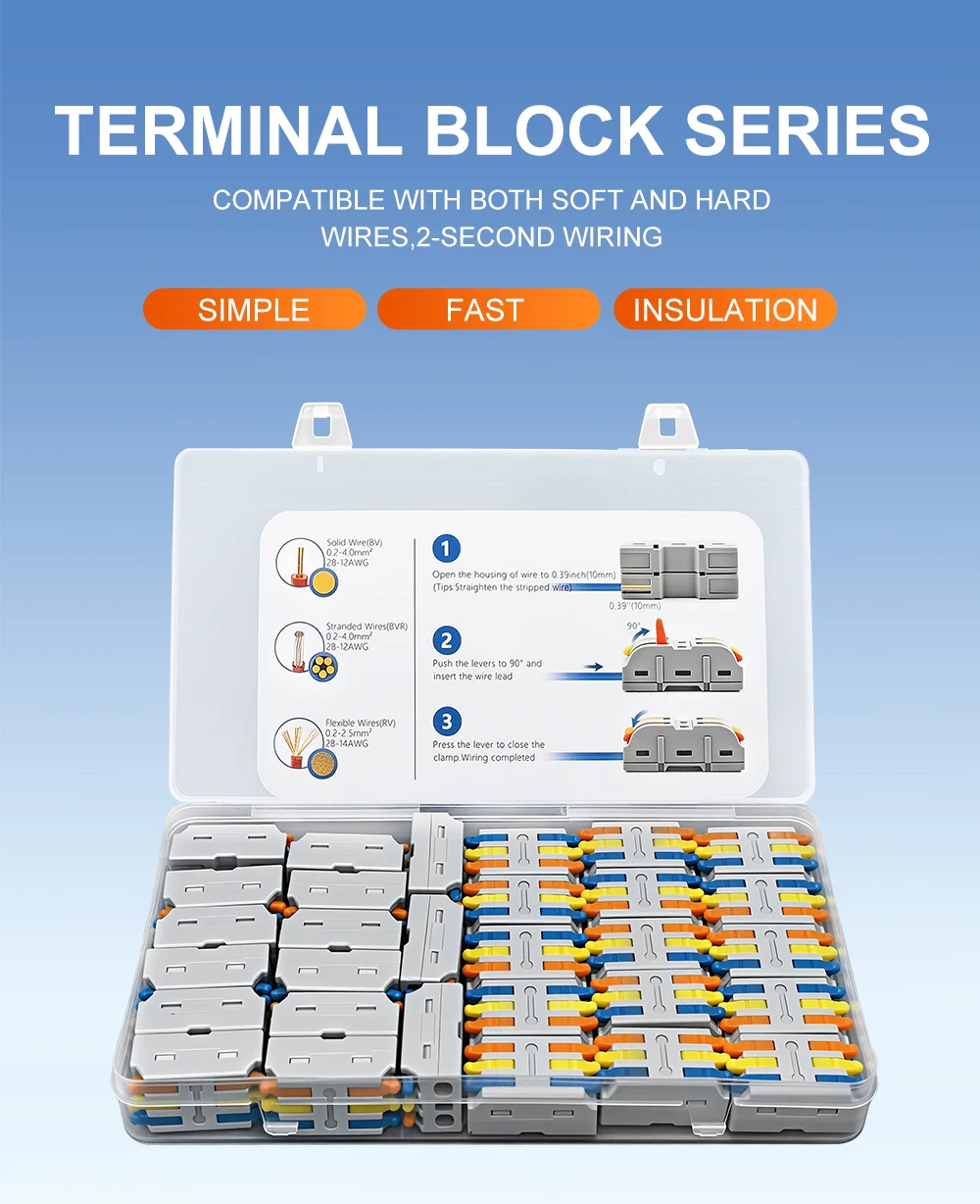

D3-3 1Box 30PCS

D3-6 1Box 20PCS

D3-9 1Box 14PCS

General

The D3 Series is a versatile family of tool-free, reusable wire connectors built for fast, reliable electrical connections. Ideal for combining, branching, and managing complex circuits, these connectors support a wide wire range (28–14 AWG / 0.08–2.5 mm²) and handle up to 32A at 250V. Available in three pre-packed kit configurations — D3‑3 (30 pcs), D3‑6 (20 pcs), and D3‑9 (14 pcs) — each box contains only the corresponding terminals, so you can pick the exact quantity and type for your project. With a durable copper conductor and nylon housing, they deliver safe insulation, excellent conductivity, and easy operation for junction boxes, lighting, DIY electronics, and more.

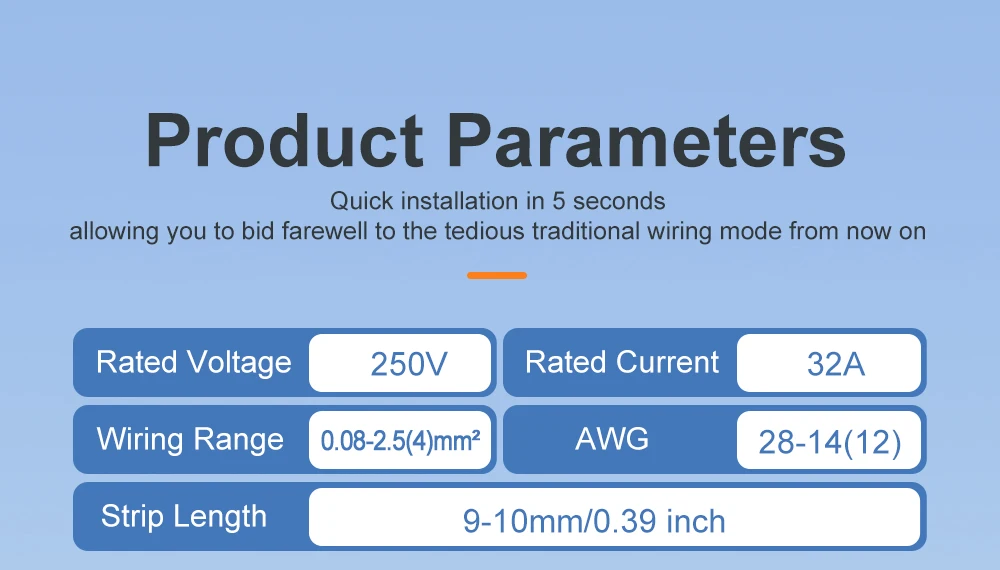

Product parameters

Model: D3-3/D3-6/D3-9
Kit Contents: 30 pcs/20 pcs/14 pcs
Connection Type: 3-in-3/3-in-6/3-in-9
Wire Range: 28-14(12) AWG / 0.08-2.5(4) mm²
Rated Voltage: 250V
Rated Current: 32A

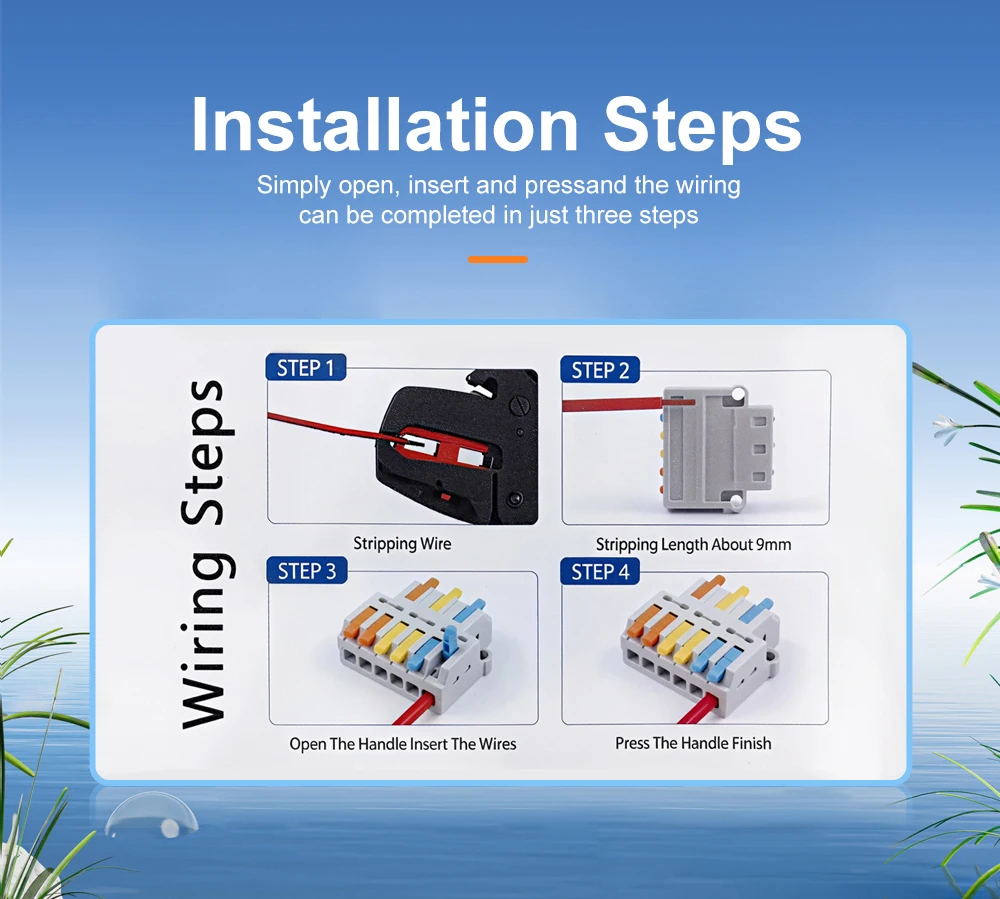

Strip Length: 9-10 mm (0.39 in)
Mounting: Free-standing
Conductor Material: Copper
Housing Material: Nylon

NOTED

The D3 series consists of three types of kits, namely D3-3, D3-6, and D3-9. You can choose the appropriate set box according to your needs. Each kit box only contains the corresponding terminals.
